electronic pump debugger EDC VP37 pump tester

electronic pump debugger EDC VP37 pump tester

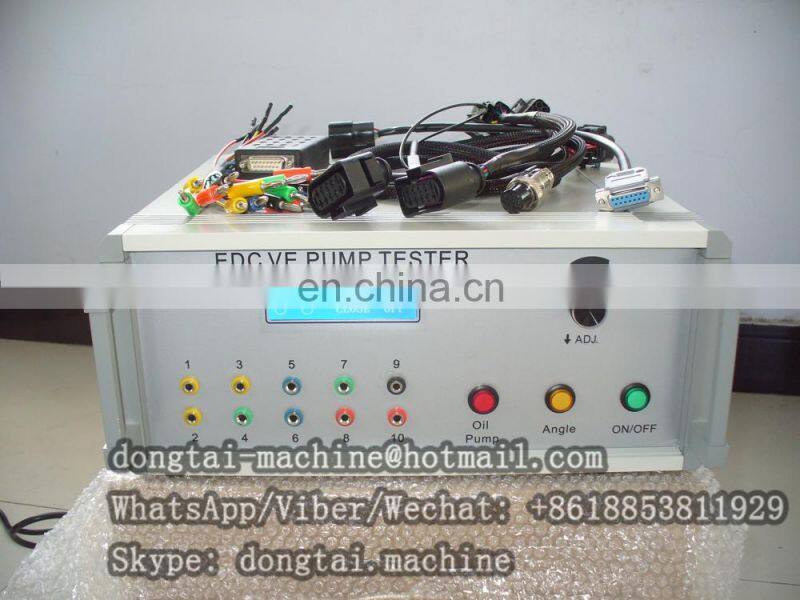

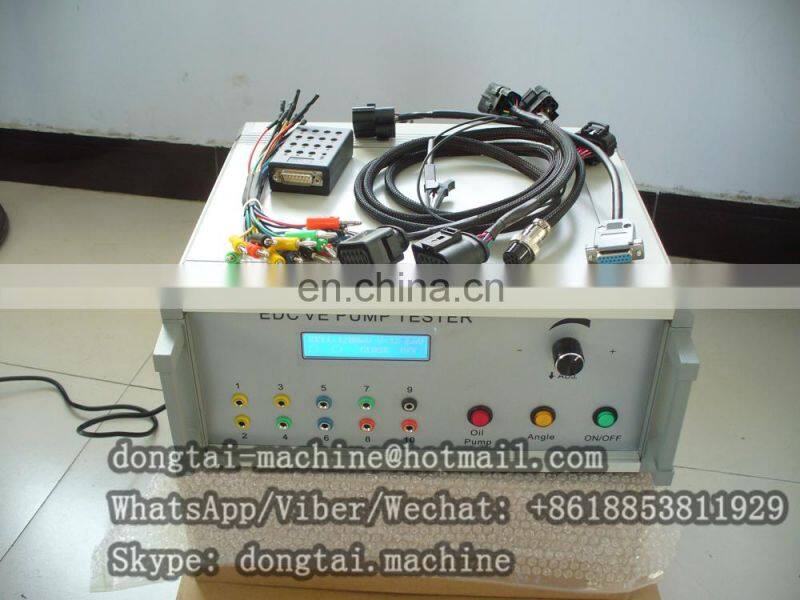

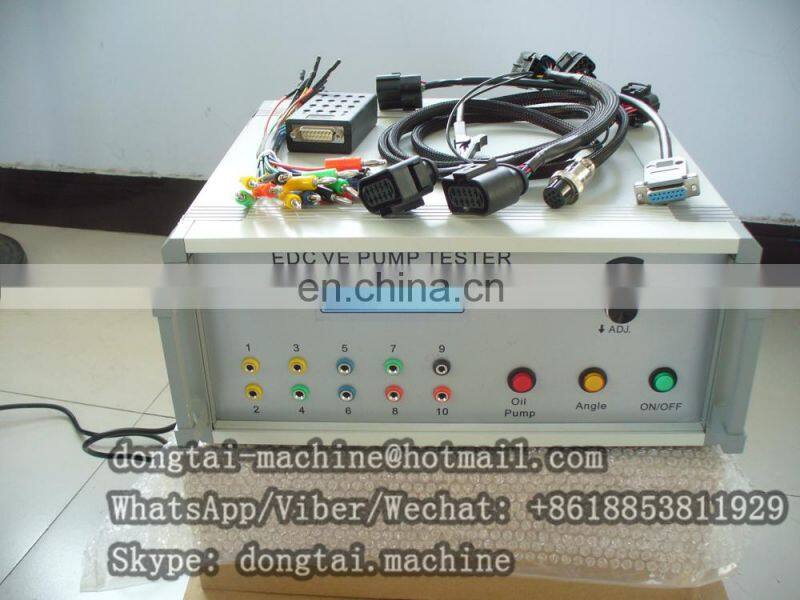

VP37 TESTER

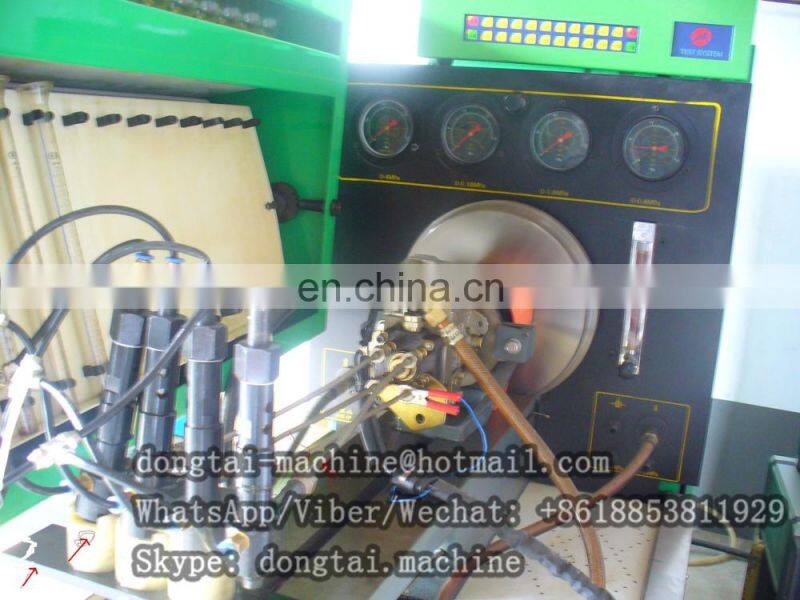

The test bench equipped with VP37 tester can adjust Bosch VP37,Zexel COVEC-F electric control distribution pumps, product performance reliability,testing data is same as the original imported control box

1. testing electric part of electric distribution pump

2. Testing the performance of the various operating conditions of electronically controlled distributor injection pump

3. Testing the pressure of pumping cavity of electric detection pump

4. Testing the piston stroke of the timing advance unit

Testing the oil-returning of electronically controlled fuel distribution pump

It mainly used for testing Electronic VP37 Pumps.

1. Technical Data

1. Eletronic Power: 220V 50HZ

2. Output Power: maximum 500 W

3. Data display: Light Four digital Nixietube

4. Control Range: 0-5000rmv

5. Advance angel valve control singal: DC12V 1.5A

6. Block oil valve control singal: DC12V 1.5A

7. Average good running time: 15000 Hours

VP37 is an indispensable electronic control instrument to test function of rotating pump, EDC is electronic fuel injection system for small and business car, for example AUDI BMW FIAT ROVER BENZ etc.

VP37 is a complete digital device, can test parameters of rotating electronic control pump according to standard parameter from manufacturer.

There are two kinds ways of Electronic Distributor Pump Testing, Static State; Dynamic State:

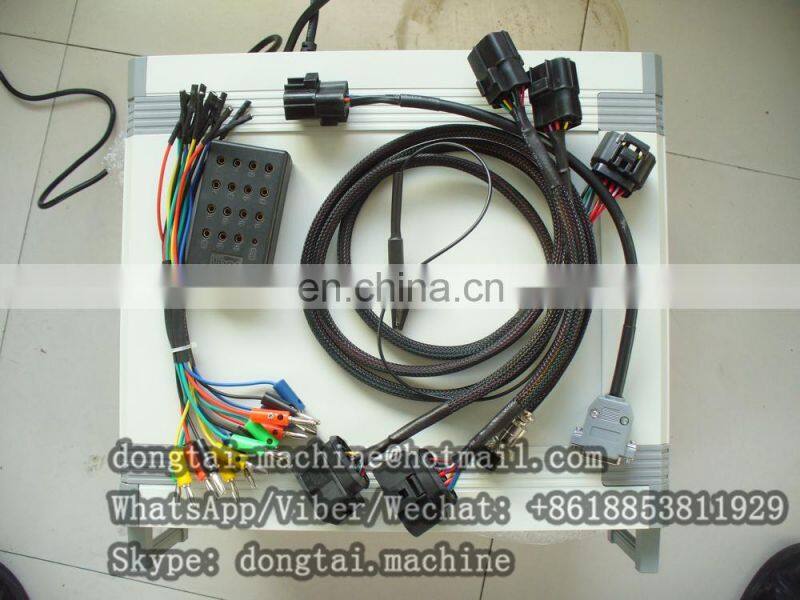

1.Static State: Connect lines of distributor pump withVP37 tester, and measure by multimeter according to data from factory, to identify order of all line connection suit factory standard.

2.Dynamic State: Control rotary electronic pump working by signal, at the same time rotate electronic pump output signal and display on screen.

3.It equipped alarm light include output short or overload, to find and solve problem.

PARAMETER

Power pressure 220V

Input frequency 50/60HZ

Output power  200VA

Output current 10A

Display voltage 0-5000mv

Work temperature 0-50

Work humidity 20-85HR

Dimension 160X490X410mm

Weight 14KG

 Packing details: Box or Carton

 Delivery details: 3-5 days after payment

Tai'an Dongtai Machinery Manufacturing Co.,LTD  is  located at the foot of Mount Tai "Five Sacred Mountains Domination" . Company use advanced production and processing equipment and full set of production technology and product design software . Produce of Auto testing and test equipment with the world advanced level,have more than 100 employees. Chinese first engineers, technicians major in Frequency fuel pump test stand, spare parts,Auto maintenance and computer fields
Main products include:
     1.Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories); 2.Injection pump test bench; 3.auto tools; 4.Auto parts; 5.special vehicles; 6.Turbocharger.......
     Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .

Our spirit is "excellent quality, excellent price, excellent service " three excellent operating principle of dedication to customer service, for the development of the internal combustion engine testing industry Chinese and abroad to make greater contributions.
