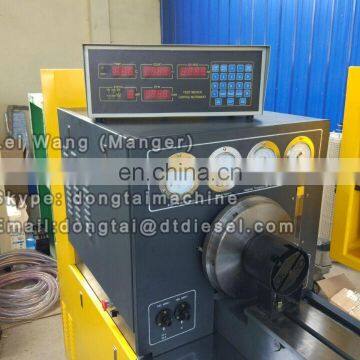

BD850 D diesel fuel injection pump test bench test stand for diesel car

Main function 1. Measurement of each cylinder delivery at any speed 2. Test point and interval angle of oil supply of injection pump. 3. Checking and adjust the mechanical governor. 4. Checking and adjusting the distributor pump. 5. Experiment and adjusting of behavior of supercharging and compensatory     device. 6. Measurement of oil return of distributing pump 7. Testing of the electromagnetic valve of distributor pump.(12V/24V) 8. Measurement of the internal pressure of distributor pump. 9. Checking of the advance angle of advance device. 10. Checking the sealing of injection pump body 11.Install tube of auto-sucking oil supply can check on oil supply    pump(including VE pump.

12. Checking the travel of stroke (on request) USD150.00

13. Advance angle checking.

l Characteristics

   1. Changing frequency changing rotational speed

2. Low fall of rotational speed and high output torque

3. High measurement precision;

4. The functions of over voltage, overload and short circuit protection;

5. Ten classes Rotation speeds presetting;

6. Constant temperature controlled;

7. Ultra low noise;

8. Operating position: arbitrary side of the two work sides of the test stand;

9. Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by computers in real time, digital controller;

11. Automatically generating and displaying speed characteristics curve; ( tooth bar stroke function on request)


Technical Parameters
