Home > Industrial Equipment & Components > Bearing > Slewing Bearing > Four Point Contact Slewing Bearing

Four Point Contact Slewing Bearing

Name: Four Point Contact Slewing Bearing
Brand: LYMC
SKU: 162398089
Availability: InStock

Four Point Contact Slewing Bearing thumbnail-1

Four Point Contact Slewing Bearing thumbnail-2

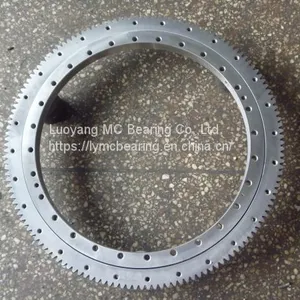

Four Point Contact Slewing Bearing thumbnail-3

Four Point Contact Slewing Bearing photo-1

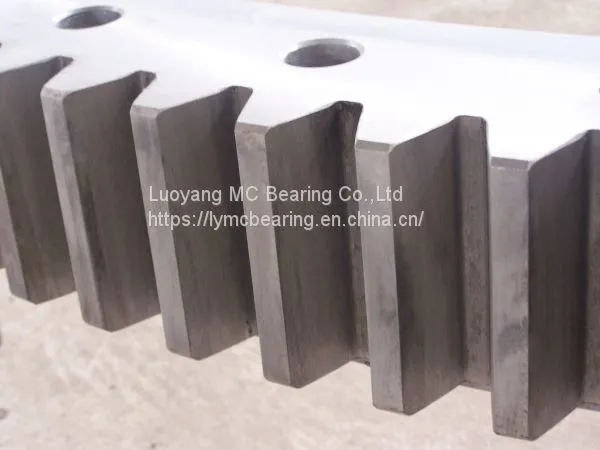

Four Point Contact Slewing Bearing photo-2

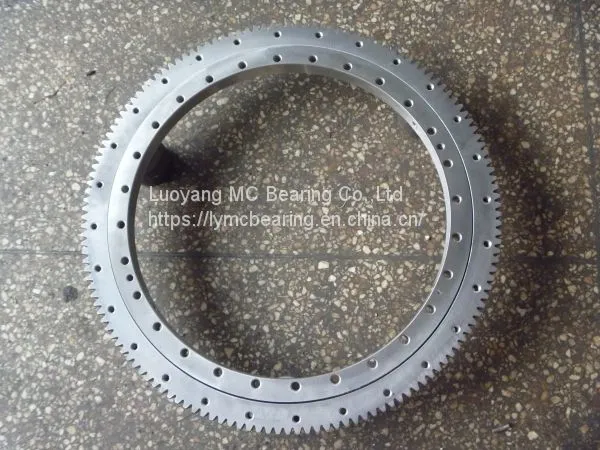

Four Point Contact Slewing Bearing photo-3

US$ 500 - 1000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

LYMC

Place of Origin:

China

Model Number:

011.20.200,011.20.224,011.20.250,011.25.315,011.25.400 and so on

Contact Supplier Request Quote Chat Now

Luoyang MC Bearing Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai,beijing,Qingdao

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Brand Name LYMC

Place of Origin China

Model Number 011.20.200,011.20.224,011.20.250,011.25.315,011.25.400 and so on

Feature Four Point Contact

Outside Diameter 280, 4726

Bore Size ,

Gear Options External Gear Only

MC single row four point contact ball slewing rings is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four points; it can bear the axial force, radial force and the tilting moment at the same time. It widely used in excavator slewing bearing,cranes,and so on.

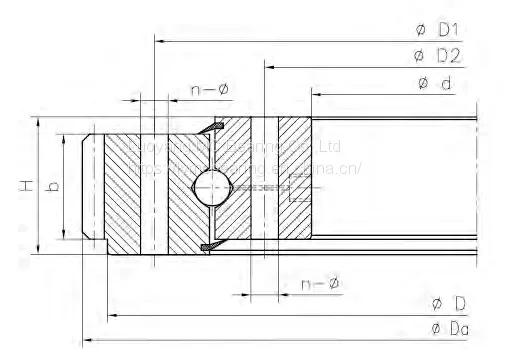

Designations	Boundary dimensions			Bolt hole diameter				Structure dimensions						Gear parameters							Basic load ratings	Mass
	D	d	H	D1	D2	n	φ	D3	d1	H1	h	n3	φ3	m	Da	Z	da	Z	b	x	Coa
external gear type	mm			mm		n	mm	mm				n3	mm	m	mm	Z	mm	Z	mm	x	104 N	kg
	170	70	40	148	90	6	10	121	119	35	5	2	M6x1								13	4.8
	240	90	36	214	116	8	10	179	177	28	8	2	M6x1								20	9.24
011.20.200	280	120	60	248	152	12	16	201	199	50	10	2	M6x1	3	300	98			40	0	33	20
011.20.224	304	144	60	272	176	12	16	225	223	50	10	2	M6x1	3	321	105			40	0	38	22
011.20.250	330	170	60	298	202	18	16	251	249	50	10	2	M6x1	4	352	86			40	0	42	25
011.20.280	360	200	60	328	232	18	16	281	279	50	10	2	M6x1	4	384	94			40	0	49	28
011.25.315	408	222	70	372	258	20	18	316	314	60	10	2	M8x1	5	435	85	190	40	50	0	76	43
011.25.355	448	262	70	412	298	20	18	356	354	60	10	2	M8x1	5	475	93	235	49	50	0	81	49
011.25.400	493	307	70	457	343	20	18	401	399	60	10	2	M8x1	6	528	86	276	48	50	0	96	55
011.25.450	543	357	70	507	393	20	18	451	449	60	10	2	M8x1	6	576	94	324	56	50	0	112	64
011·30·500·**	602	398	80	566	434	20	18	498.5	501.5	70	10	4	M10×1	5	630	123	365	74	60	+0.5	129	75.8
012·30·500·**	602	398	80	566	434	20	18	498.5	501.5	70	10	4	M10×1	6	630	102	366	62	60	+0.5	129	75.8
011·30·560·**	662	458	80	626	494	20	18	558.5	561.5	70	10	4	M10×1	5	690	135	425	86	60	+0.5	144	94
012·30·560·**	662	458	80	626	494	20	18	558.5	561.5	70	10	4	M10×1	6	690	112	426.517	72	60	+0.5	144	94
011·30·630·**	732	528	80	696	564	24	18	628.5	631.5	70	10	4	M10×1	6	774	126	492	83	60	+0.5	187	110
012·30·630·**	732	528	80	696	564	24	18	628.5	631.5	70	10	4	M10×1	8	776	94	488	62	60	+0.5	187	110
011·30·710·**	812	608	80	776	644	24	18	708.5	711.5	70	10	4	M10×1	6	852	139	570	86	60	+0.5	212	120
012·30·710·**	812	608	80	776	644	24	18	708.5	711.5	70	10	4	M10×1	8	856	104	568	72	60	+0.5	212	120
	1098	893	90	1060	845	48/47	22	956.5	953.5	71	19	6	M10×1								270	126
011·40·800·**	922	678	100	878	722	30	22	798.5	801.5	90	10	6	M10×1	8	968	118	632	80	80	+0.5	313	256
012·40·800·**	922	678	100	878	722	30	22	798.5	801.5	90	10	6	M10×1	10	970	94	630	64	80	+0.5	313	256
011·40·900·**	1022	778	100	978	822	30	22	898.5	901.5	90	10	6	M10×1	8	1064	130	736	93	80	+0.5	355	240
012·40·900·**	1022	778	100	978	822	30	22	898.5	901.5	90	10	6	M10×1	10	1070	104	730	74	80	+0.5	355	240
011·40·1000·12	1122	878	100	1078	922	36	22	998.5	1001.5	90	10	6	M10×1	10	1190	116	820	83	80	+0.5	394	305
012·40·1000·**	1122	878	100	1078	922	36	22	998.5	1001.5	90	10	6	M10×1	12	1188	96	816	69	80	+0.5	394	305
011·40·1120·**	1242	998	100	1198	1042	36	22	1118	1122	90	10	6	M10×1	10	1300	127	940	95	80	+0.5	443	300
012·40·1120·**	1242	998	100	1198	1042	36	22	1118	1122	90	10	6	M10×1	12	1308	106	936	79	80	+0.5	443	300
011·45·1250·**	1390	1110	110	1337	1163	40	26	1248	1252	100	10	6	M10×1	12	1452	118	1044	88	90	+0.5	554	420
012·45·1250·**	1390	1110	110	1337	1163	40	26	1248	1252	100	10	6	M10×1	14	1456	101	1036	75	90	+0.5	554	420
011·45·1400·**	1540	1260	110	1487	1313	40	26	1398	1402	100	10	6	M10×1	12	1608	131	1188	100	90	+0.5	617	480
012·45·1400·**	1540	1260	110	1487	1313	40	26	1398	1402	100	10	6	M10×1	14	1610	112	1190	86	90	+0.5	617	480
011·45·1600·**	1740	1460	110	1687	1513	45	26	1598	1602	100	10	8	M10×1	14	1820	127	1386	100	90	+0.5	702	550
012·45·1600·**	1740	1460	110	1687	1513	45	26	1598	1602	100	10	8	M10×1	16	1824	111	1376	87	90	+0.5	702	550
011·45·1800·**	1940	1660	110	1887	1713	45	26	1798	1802	100	10	8	M10×1	14	2016	141	1568	113	90	+0.5	793	610
012·45·1800·**	1940	1660	110	1887	1713	45	26	1798	1802	100	10	8	M10×1	16	2016	123	1568	99	90	+0.5	793	610
011·60·2000·**	2178	1825	144	2110	1891	48	33	1998	2002	132	12	8	M10×1	16	2272	139	1728	109	120	+0.5	1210	1100
012·60·2000·**	2178	1825	144	2110	1891	48	33	1998	2002	132	12	8	M10×1	18	2268	123	1728	97	120	+0.5	1210	1100
011·60·2240·**	2418	2065	144	2350	2131	48	33	2237.5	2242.5	132	12	8	M10×1	16	2496	153	1984	125	120	+0.5	1350	1250
012·60·2240·**	2418	2065	144	2350	2131	48	33	2237.5	2242.5	132	12	8	M10×1	18	2502	136	1980	111	120	+0.5	1350	1250
011·60·2500·**	2678	2325	144	2610	2391	56	33	2497.5	2502.5	132	12	8	M10×1	18	2772	151	2232	125	120	+0.5	1500	1400
012·60·2500·**	2678	2325	144	2610	2391	56	33	2497.5	2502.5	132	12	8	M10×1	20	2780	136	2220	112	120	+0.5	1500	1400
011·60·2800·**	2978	2625	144	2910	2691	56	33	2797.5	2802.5	132	12	8	M10×1	18	3078	168	2520	141	120	+0.5	1680	1600
012·60·2800·**	2978	2625	144	2910	2691	56	33	2797.5	2802.5	132	12	8	M10×1	20	3080	151	2520	127	120	+0.5	1680	1600
011·75·3150·**	3376	2922	174	3286	3014	56	45	3147.5	3152.5	162	12	8	M10×1	20	3480	171	2820	142	150	+0.5	2380	2800
012·75·3150·**	3376	2922	174	3286	3014	56	45	3147.5	3152.5	162	12	8	M10×1	22	3476	115	2816	129	150	+0.5	2380	2800
011·75·3550·**	3776	3322	174	3686	3414	56	45	3547.5	3552.5	162	12	8	M10×1	20	3880	191	3220	162	150	+0.5	2690	3200
012·75·3550·**	3776	3322	174	3686	3414	56	45	3547.5	3552.5	162	12	8	M10×1	22	3894	174	3212	147	150	+0.5	2690	3200
011·75·4000·**	4226	3772	174	4136	3864	60	45	3997.5	4002.5	162	12	10	M10×1	22	4334	194	3652	167	150	+0.5	3020	3600
012·75·4000·**	4226	3772	174	4136	3864	60	45	3997.5	4002.5	162	12	10	M10×1	25	4350	171	3650	147	150	+0.5	3020	3600
011·75·4500·**	4726	4272	174	4636	4364	60	45	4497.5	4502.5	162	12	10	M10×1	22	4840	271	4158	190	150	+0.5	3410	4000
012·75·4500·**	4726	4272	174	4636	4364	60	45	4497.5	4502.5	162	12	10	M10×1	25	4850	191	4150	167	150	+0.5	3410	4000
