HEUI TEST BENCH CAT4000L WITH COMPUTER TESTING MEDIUM PRESSURE INJECTOR

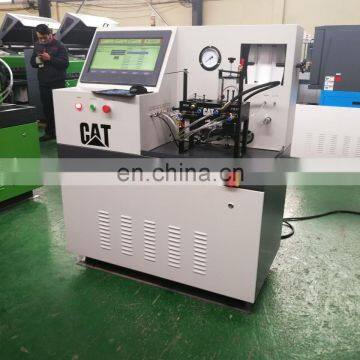

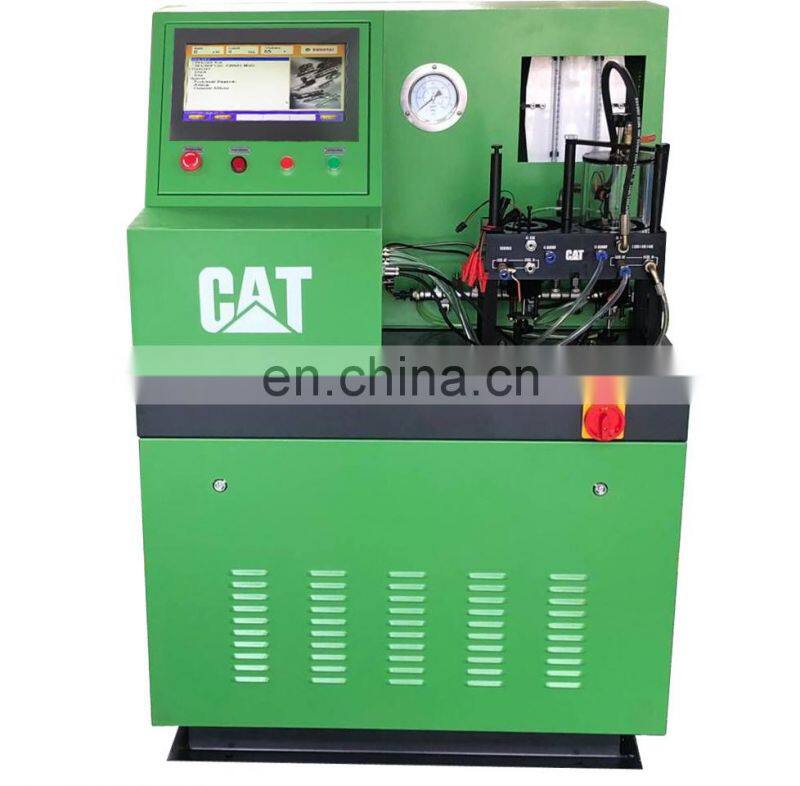

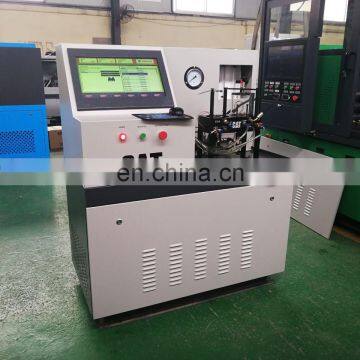

CR4000L HEUI Injector Test Bench

Improve fuel economy & enhance performance

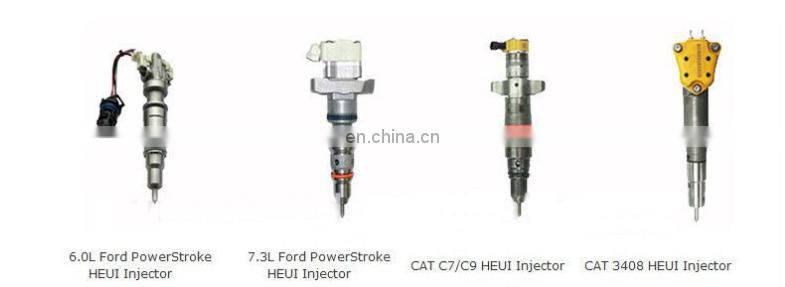

Measurement fuel delivery of four HEUI injectors
Sealing test for injectors upper seat of the solenoid control valve.
Technical characteristic:
Power:3KW
High Pressure adjustment range:0-500bar
Low pressure adjustment range:0-6bar
Fuel injection system: electronic measurement system, Display computer screen.
Temperature Control System: Fan

>>>FUNCTION

>>>TECHNICAL PARAMETER
Injection testing frequency :50~3000 rpm Pulse width: 0.1~200 ms
Continuous injection times: 0~1000 Fuel temperature :40±2℃
Supply oil quantity of common rail injector: 0~200cc/min 0.5%
Rail high pressure :0~2000 bar Test oil filtered precision :5μ
Input power :380V/50hz/3phase or 220V/60hz/3phase
Rotation speed:0~4000RPM Oil tank capacity: 60L
Flywheel inertia’s moment: 0.8KG.M2 Center height: 125MM
Output power :7.5KW(11kw,15kw,18.5kw as request)
