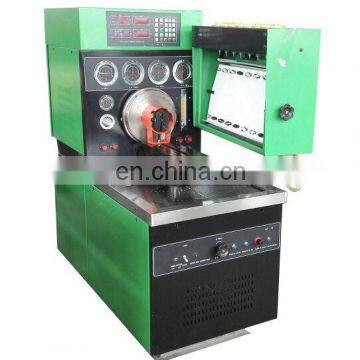

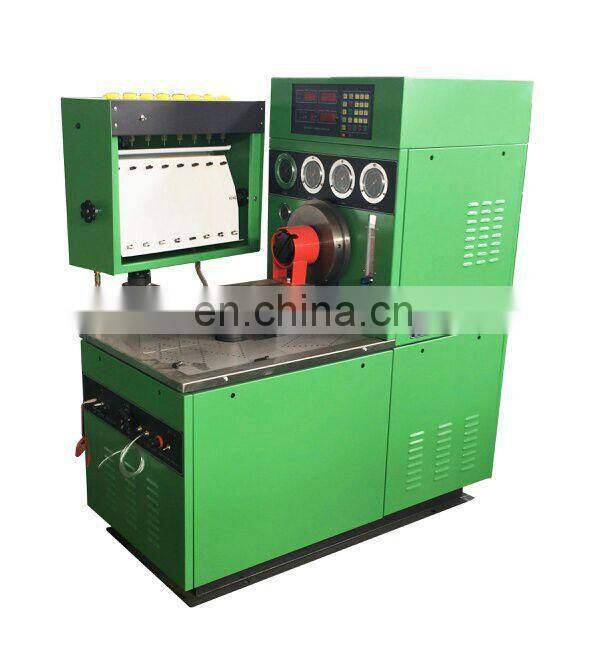

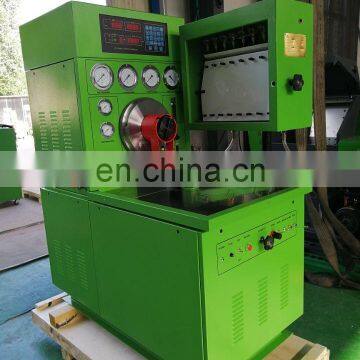

MINI-12PB Diesel test bench 6 cylinder

MINI-12PSB

This series diesel fuel injection test bench is design for customer’s require. It adopt high quality frequency
conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque,
perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price
in our business.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor
injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
Main function
1.Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
Technical characteristic
Type Technical characteristic Output power(KW)
MINI-12PSB / 12PSB-IV /
12PSDW / BD850
1.test cylinders:12 cylinders *(Mini-12PSB is 6 or8cylinders)
2.RPM 0-4000
3.Ten speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.Digital display of temperature
7.with air supply
8.Measurement of oil return of distributing pumps
9.Measure oil flux of VE pumps
10.Measure the internal pressure of VE pump.
