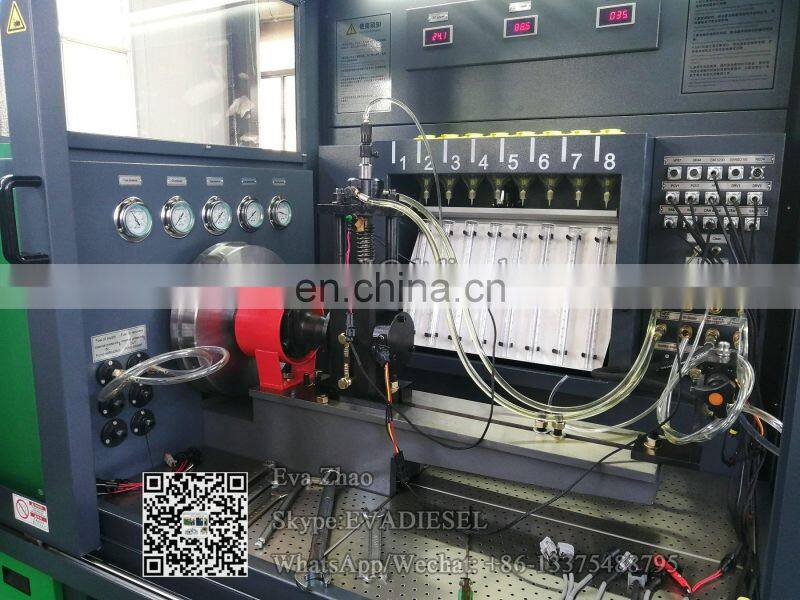

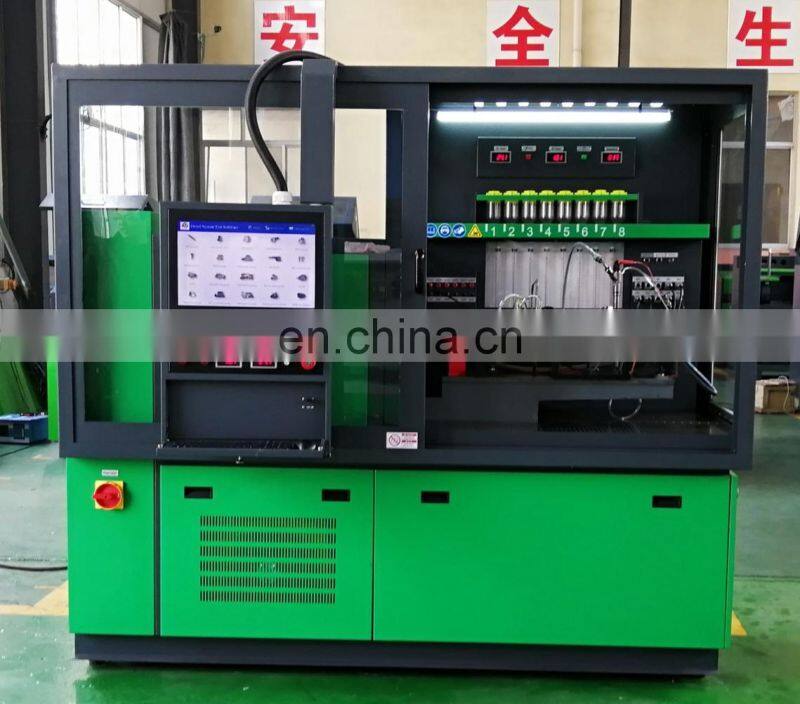

Pump Test Two Oil Tank Cr825 Common Rail Diesel Injector Test Bench

• Test all traditional in-line, rotor type high pressure oil pump
• ALL common rail injector tesitng with coding
• ALL PIEZO injector testing
• ALL Common rail pump testing
• ALL EUI EUP testing
• All double soleind valve EUI testing
• ALL HEUI Injector testing
• ALL HEUI Pump testing
• VP37  pump testing
• VP44 Pump testing
• BIP funcion( optional)
•
• Configuration
• 1.3 pcs import flow sensor
• 2.High quality oil tank with powerful compressor cooling system 3.Motor power: 220v/380v 18.5kw 8 or 12 cylinders with glass tube
• 4.Double high pressure rail

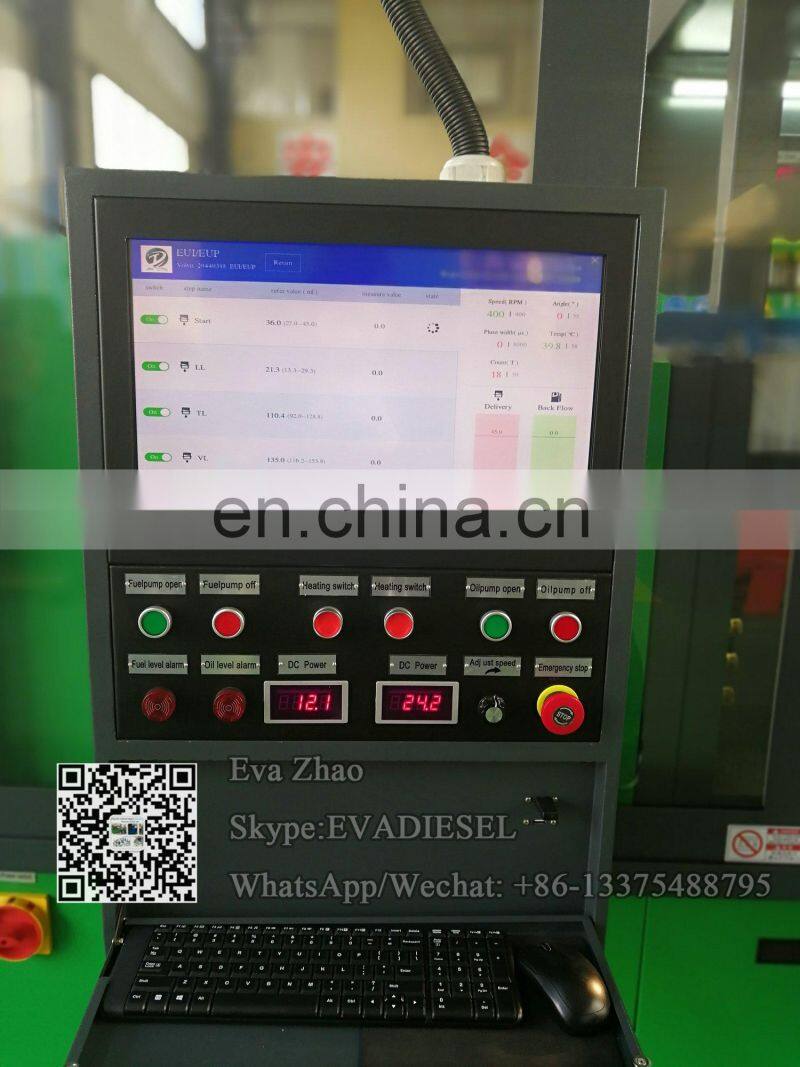

Test system

Automatically test different models solenoid valve injectors (common rail injectors and piezo injector)BOSCH, DENSO , DELPHI, SIEMENS. Common rail injector and piezo injector testing process

1.High pressure cleaning

2.Atomization test: to judge if the injector is blocked

3.Seal test: check the sealing performance of the nozzle, the Nozzle nut and solenoid valve.

4.Injector test: Test the injected fuel and the volume of return under rated speed, idle, emission status, pre-injection and preinjection.

5. Check the solenoid valve current of the injector, lifting the valve assembly, fuel injection lift.

BOSCH DENSO DELPHI SIEMENS Common rail injector testing and coding

Automactically test all common rail pumps( Bosch CP1 CP2 CP3 CP4, DENSO HP0 HP3 HP4 DELPHI )

        BOSCH CP4 PUMP TESTING                           DENSO HP0 PUMP TESTING

Also can test BOSCH CP1 CP2 CP3 ,DENSO HP3 HP4 ,DELPHI pump.

•  Automactically test ZME
• Automatically test EUI EUP ( contain 26sets adaptors
• Land Rover,CAT,Cummins,Scania ,Detroit,VW,Audi,John Deer,Delphi E1,E3,HENGYAN .ETC
