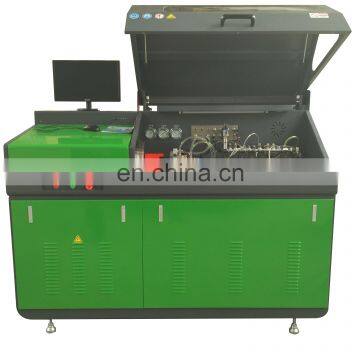

CR815 HEUI TEST BENCH WITH QR CODING

1. High-precision flow measurement, it use imported flow sensor, high precision, good repeatability.

2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection.

3. It can test DENSO, DELPHI, SIEMENS, CAT etc injector

4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact.

5. Advanced control, a key selection, the whole process of detection.

6. Massive data,

7.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration.

8.It with pump flow sensor, it works with high pressure rail sensor to test common rail pumps.

9.It can test CP1, CP2,CP3 ,HP0 etc high pressure common rail pumps.

10. It with Cambox can test EUI EUP and HEUI

Technical parameter

1. Out put power: 11kw                       2. Input power: 380V/50hz/3phase or 220V/60hz/3phase

3. Rotation speed: 0~3000RPM                 4. Rail high pressure: 0~2000 bar

5. Test oil filtered precision: 5                6. Oil tank: 60L

7. Size: 1900*900*1500                       8. Wight: 800kg
