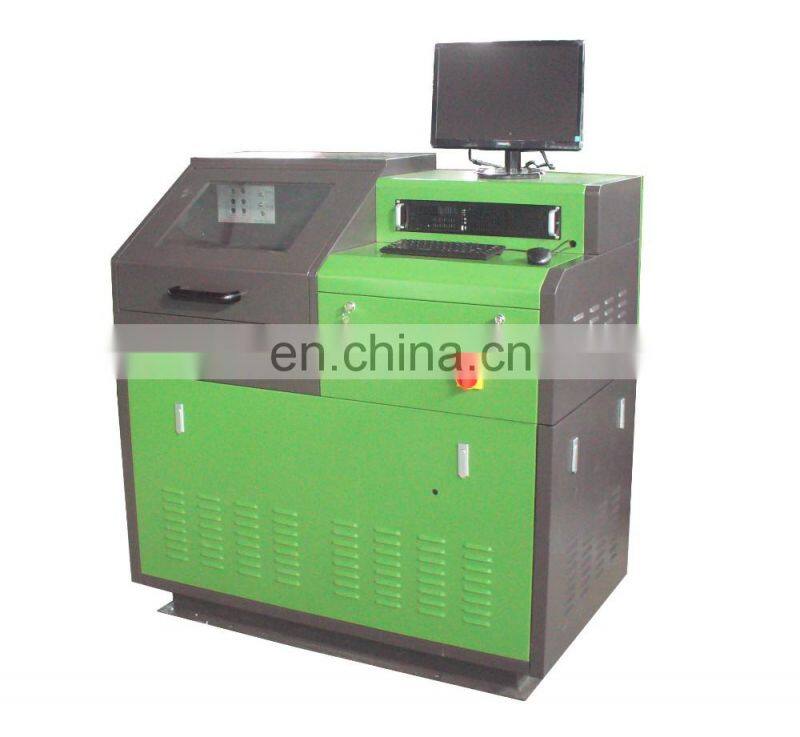

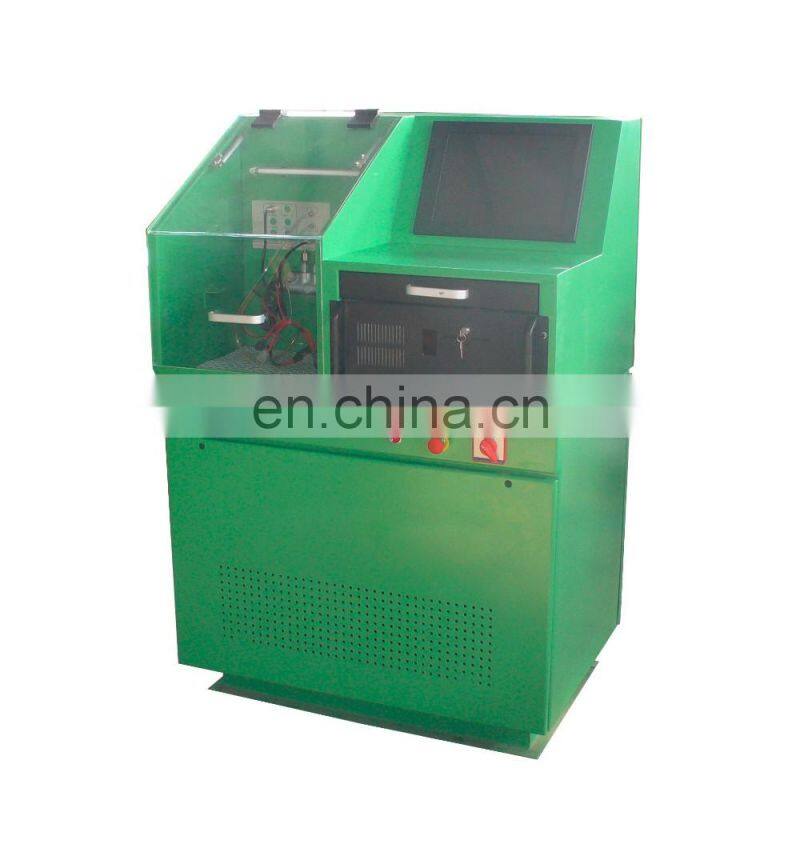

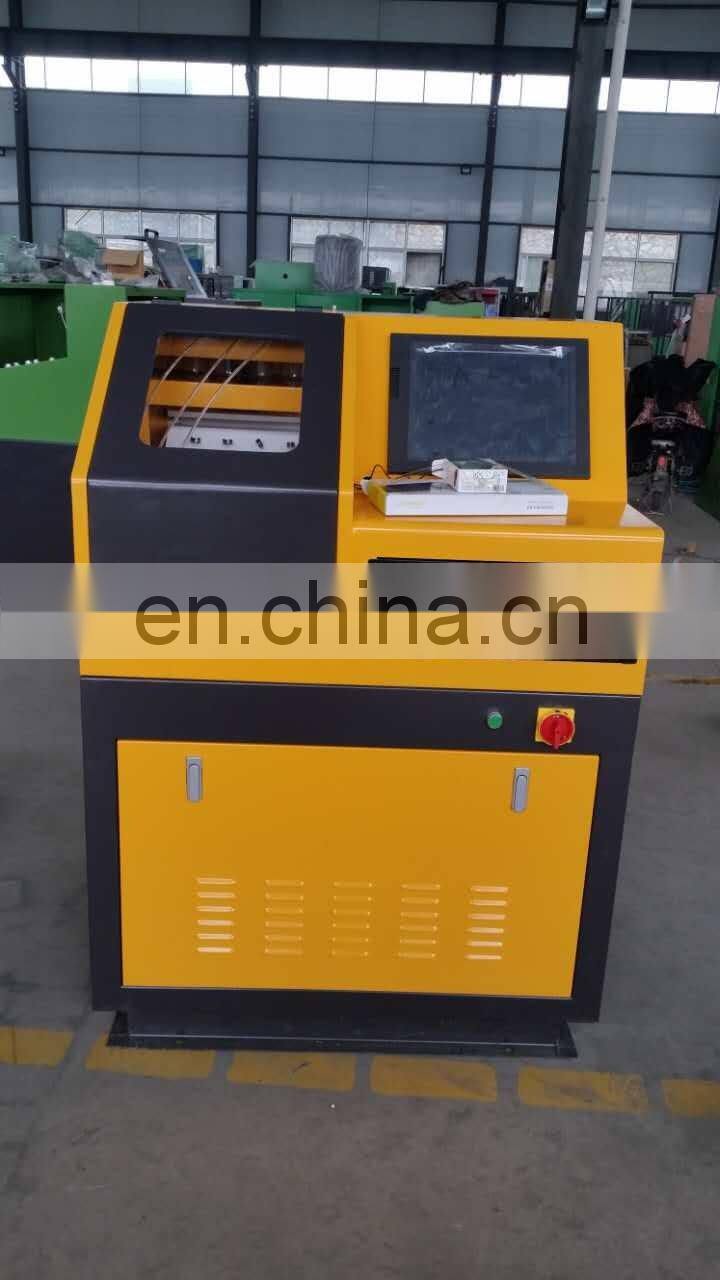

DTS300ACommon Rail Pump and Injector Test Bench

CRS708 COMMON RAIL TEST BENCH is mainly test for common rail pump and injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured valuse.

DTS300A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

Common Rail Injector Common Rail Pump

1. Test brands：BOSCH、SIEMENS、DELPHI、DENSO. 1.Test brands：BOSCH、SIEMENS、DELPHI、DENSO.

2. Test 4 pieces of injectors at a time.

(6 is also available---optional function) 2.Test the double plunger HP0 pump of

DENSO—(optional function)

3. Test the pre-injection of the high-pressure common rail injector. 3. Test the sealing of common rail pump.

4.Test the max. oil quantity of high-pressure common rail injector 4. Test the internal pressure of common rail pump.

5. Test the cranking oil quantity of high-pressure common rail injector. 5. Test the proportional electromagnetic valve of

common rail pump.

6. Test the backflow oil quantity of high-pressure common rail injector. 6. Test the input pressure of common rail pump.



7. Test the average oil quantity of high-pressure common rail injector. 7. Test the flux of common rail pump.



8. Test the high-pressure common rail injector's injection state and oil quantity measurement. 8. measure the rail pressure in real time.



9. Data can be searched, printed and made into database. Data can be searched, printed and made database.
