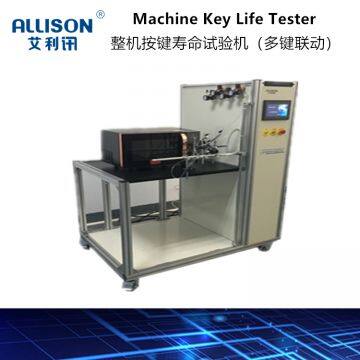

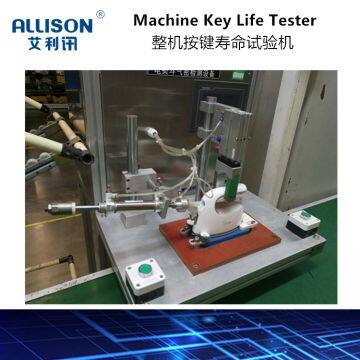

Button Tester Key Life Tester Key Switch Life Tester Button Tester Button Life Testing Machine

The machine key life tester is suitable for the durability life test of the control panel buttons of small household appliances, car touch screen panels, and mobile phones. Adopts PLC and touch screen control system for stable operation and simple and convenient maintenance

   Through PLC program control, single-point / multi-point linkage operation and program-type cycle operation can be performed. Really simulate the use of key linkage.

technical parameter:

1. Test station: single station (the number of stations can be customized)

2.Each station can test 4-6 more keys, and the program loops.

3. The fixture can be changed for different operation panel sizes

4. Control interface: 7-inch touch display with USB data export function

5. Control method: single-point control / multi-point linkage program control

6. The test head is a wear-resistant insulating silicone / touch metal material.

7. Test speed: 10-50 times / minute adjustable

8. Action stroke: adjustable (depending on the product)

9. Test times: 1-999999 arbitrarily set

10. Power supply: 220VAC 2.5KW

11. Equipment size: 1100 X 500 X 1650 Unit: MM
