DONGTAI HEUI CAT Common Rail Diesel Injector Pump Test Bench CAT4000L

 TAIANDONG HEUI TEST BENCH(COMPUTER) CAT4000L

HEUI Common Rail Test Bench is a test bench capable of testing medium pressure injectors.

can test C7,C9,C-9 ,3126,3408 HEUI  Injector

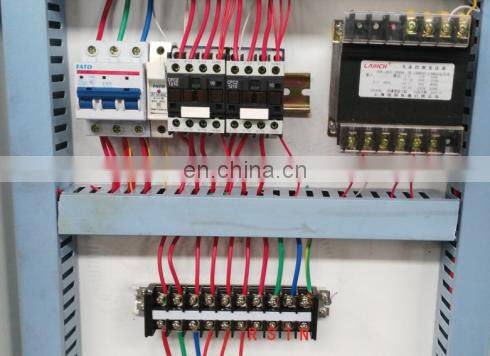

Wire Connection :

1)  R(10),S(20),T(30) connect the fair wire,N(0)connect 0 wire,E connect the ground wire.

2) .If the motor reverses, please exchange the position of the two Fire Wire R (10) and  T (30)  .

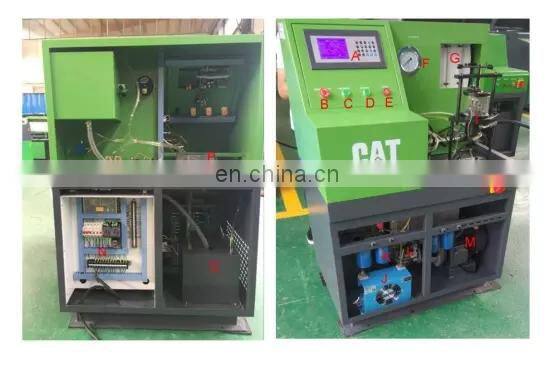

B.Main Functions

A : SIMULATOR     B:Emergency stop

C:Switch for Motor  D:Switch for Oil Motor

E:Power Indicator   F:Low pressure Guage

G:Glass tube       H:Motor for Power Indicator

I:HEUI Adaptor (C7,C9,C-9,3126 )  J:Fan

K:Diesel filter(4pcs)   L:Bosch CP3 pump

M: Motor             N:Distrubution box

O:diesel oil tank(2pcs) P:Oil pump (Made in Tai Wan)

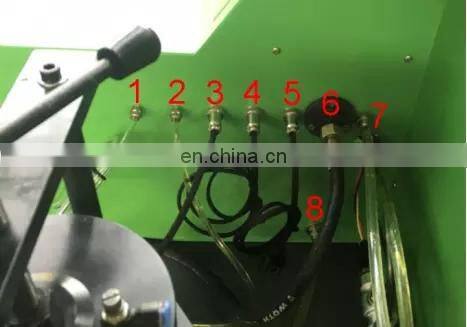

1.Low pressure return oil pipe   2:injection oil pipe        3,4. Injectors Solenoid valve power cable        5.Piezoelectric injector cable    6.Low pressure supply oil pipe    7.High pressure return oil pipe

8.Low pressure return oil pipe

Packaging  Detail: Carton/Wooden or as your requirements

Port: Qingdao

Lead Time: 3 days

Tai dongtai Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part .

Welcome you to visit our factory and cooperate in the future.
