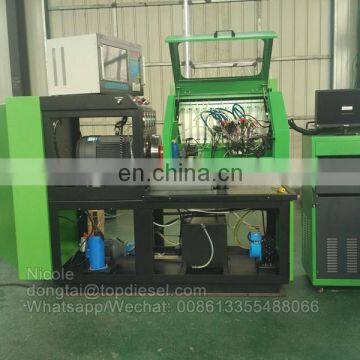

CRS300 is used to test common rail pump and injector.
It can be mounted on the convential test bench.
It adopts Bosch original common rail pump to provide 0~2000bar of rail pressure.
It can test common rail pump and injector of Bosch, Siemens,Delphi,Denso.
If you have a traditional test bench like 12PSB series and want to test common rail pump and injector, you can select our CRS300 Common Rail test System.
Characteriestic
1. Drive signal can be controlled.
2 Protection of short-circuit.
3 Rail pressure can be tested in real time, it contains high-pressure protection function.
4 Pulse and Frequency of the injector drive signal can be adjusted.
5 Injection time can be settled.
6 Computer dispaly.
Common Rail Pump | |
1. Test brands:BOSCH,SIEMENS,DELPHI,DENSO. | 1. Test brands:BOSCH,SIEMENS,DELPHI,DENSO. |
2. Test six pieces of injectors at a time. (optional) | 2. Test the double plunger HP0 pump of DENSON. |
3. Test the pre-injection of high-pressure common rail injector. | 3. Test the sealing of common rail pump.
|
4. Test the max. oil quantity of high-pressure common rail injector. | 4. Test the internal pressure of common rail pump. |
5. Test the cranking oil quantity of high-pressure common rail injector. | 5. Test the proportional electromagnetic valve of common rail pump. |
6. Test the backflow oil quantity of high-pressure common rail injector. | 6. Test the input pressure of common rail pump. |
7. Test the average oil quantity of high-pressure common rail injector. | 7. Test the flux of common rail pump. |
8. Set the high-pressure common rail injector's injection state and oil quantity measurement. | 8.Measure the rail pressure in real time. |
Packaging Detail: Carton/Wooden or as your requirements
Port: Qingdao
Lead Time: 3 days
Tai dongtai Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
