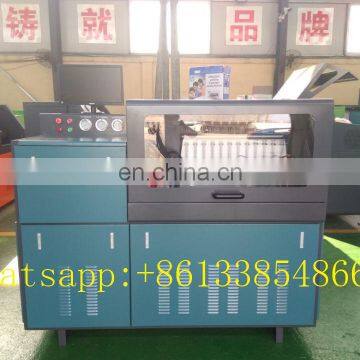

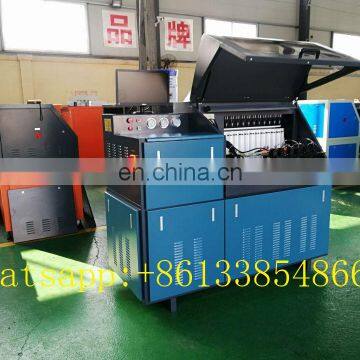

COMMON RAIL INJECTOR PUMP TEST BENCH CR3000A
- qingdao
- T/T Credit Card
You May Like
-
The Professional CR3000A Test Bench for Common Rail Fuel Injection Pump
-
Dongtai Common Rail Injector and Pump Test Bench CR3000A
-
Taian Dongtai Common Rail Injector and Pump Test Bench CR3000
-
China Manufacturer Test Bench Common Rail CR3000
-
TOP Selling Common Rail Fuel Injection Pump Test Bench CR3000
-
CR3000 COMMON RAIL FUEL INJECTOR & PUMP TEST BENCH
Product Details
| Brand Name | dongtai | Place of Origin | China | |
| Model Number | cr3000a |
packing in wooden box
Product Description

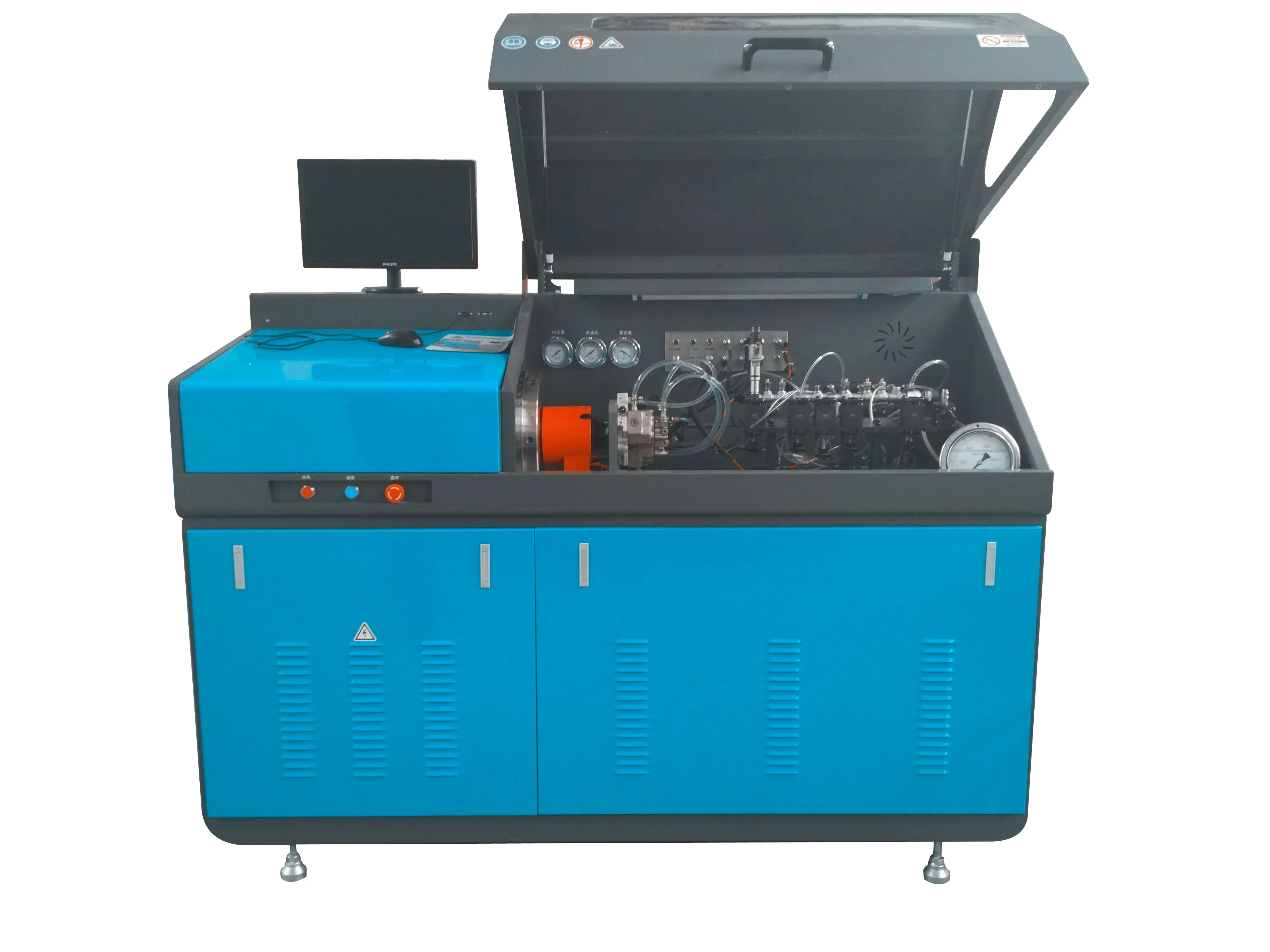

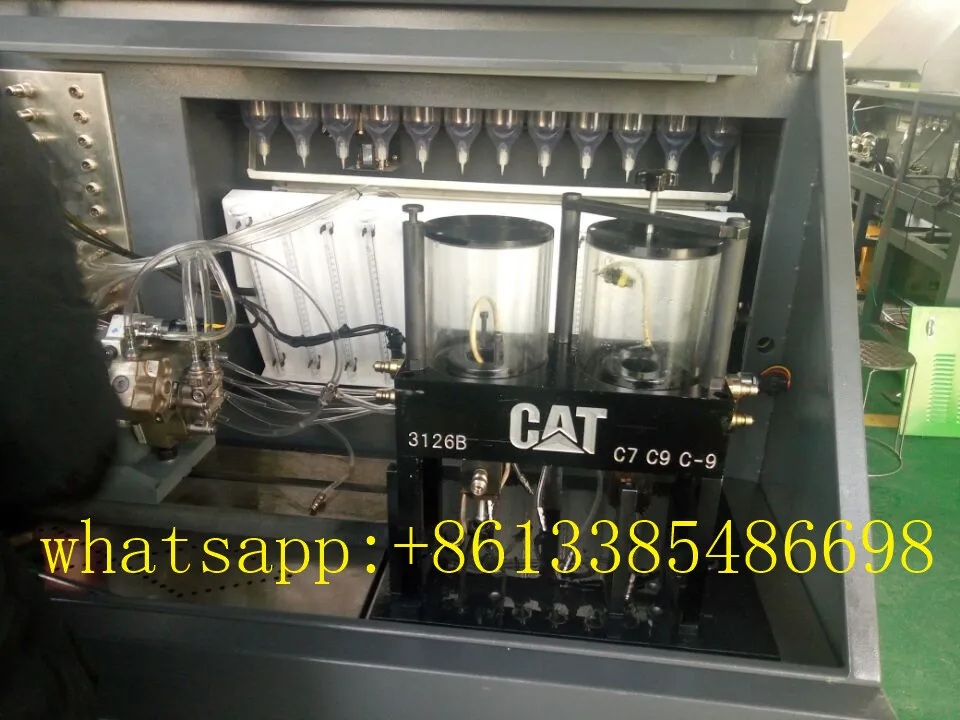

CR3000A common rail test bench with the heui/eui/eup function
1.Product description
CR815 is the professional test bench which is used for testing common rail system, can test common rail pump, common rail injector at same time.

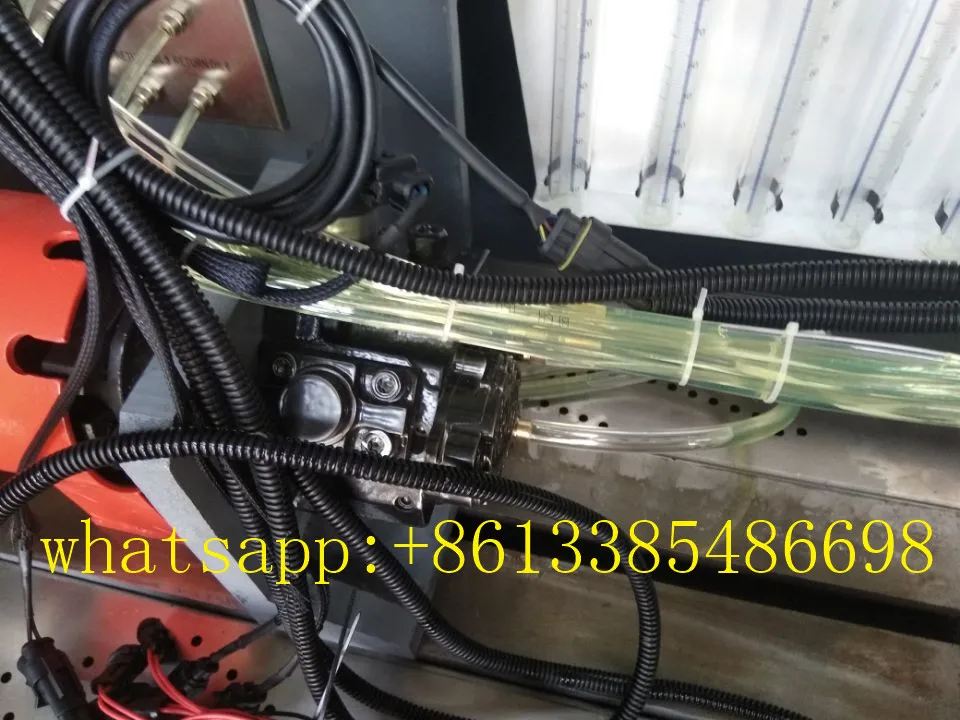

1,Pump testing: pump delivery, pressure,PVC working status, leakage of itself,
2,Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
3,it can test pressure sensor,and DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS
5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring, automatic detection.
2.Technical characteristic
| Injection testing frequency | 50~3000 rpm |
| Pulse width | 0.1~200 ms |
| Continuous injection times | 0~1000 |
| Fuel temperature | 40±2 |
| Supply oil quantity of common rail injector | 0~200cc/min 0.5% |
| Rail high pressure | 0~2000 bar |
| Test oil filtered precision | 5μ |
| Input power | 380V/50hz/3phase or 220V/60hz/3phase |
| Oil pump speed | 0~3000RPM |
| the main oil tank capacity | 45L |
| Flywheel inertia’s moment | 0.8KG.M2 |
| Center height | 125MM |
| Output power | 11KW, 15KW |
| Overall dimension(MM) | 1900*830*1550 (mm) |
| Gross Weight | 820KG |
major in Frequency fuel pump test stand, spare parts,Auto maintenance and computer fields
Main products include:
1.Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories); 2. Injection pump
test bench; 3.auto tools; 4.Auto parts; 5.special vehicles; 6.Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force .
High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
* Inquiry and consulting support.
* We are professional manufacturer.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 48H release testing
Company Profile
To improve our service, we offer products at reasonable price and good quality
