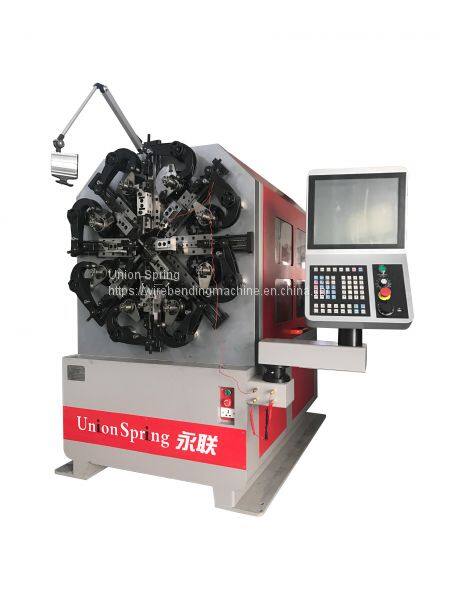

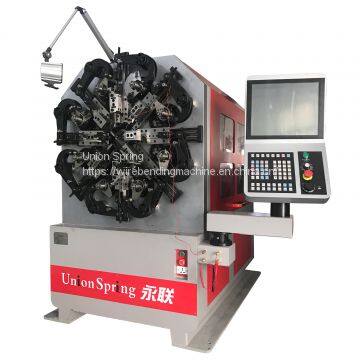

Help CenterHot Sale Automatic Computerized Wire Spring Roll Making Machine Spring Maker Machine Price
Related Products
-
Cnc Spring Forming Machine, Pins Hook Making Machine, CNC Torsion Spring Wire Forming Metal Clip Hook MachineUS$ 16000 - 20000MOQ: 1 Set -
China Standard Automatic CNC Spring Forming MachineUS$ 41000 - 43000MOQ: 1 Set
-
US-35 CNC 0.8-3.5mm Spring Forming MachineUS$ 26000 - 28000MOQ: 1 Set
-
Electronic and Electrical Hardware Spring MachineUS$ 15000 - 17000MOQ: 1 Set
-
CNC 0.8-3.5mm Spring Forming MachineUS$ 26000 - 28000MOQ: 1 Set
1. Wire rotary machine adopts Taiwan computer control system and Japanese servomotor, which has the characteristics of easy operation, high speed and high precision.
2. The five axis are cam axis, wire feeding axis, rotary wire axis, rotary quill axis, and spinner axis(optional accessory). The five axis can be operated synchronously. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. It is very easy to edit and modify the program data online.
3. The cam part has eight sets of slides, crank arm and CAM rotating axis. The wire feeding system is installed horizontally behind the machine. The wire rotary axis can control the rotation of wire, making the speed of high-difficulty special-shaped spring adjustment easier and faster.The rotating quill axis can be rotated positively or negatively, and the spinner device is installed on the slide.
4. The wire rotary spring machine can be applied to the production of lighting, electronics, toys, home appliances, sports equipment, automobile and other industries need precision spring.
Specification:
Model |
US-520R |
US-540R |
Axis |
4/5 |
4/5 |
Wire Diameter |
0.3-2.5mm |
0.8-4.0mm |
Wire Wheel Sets |
2sets |
3sets |
Cam Axis |
2.7KW |
4.5KW |
Wire Feeding Axis |
2.7KW |
4.5KW |
Rotary Quill Axis |
0.4KW |
0.4KW |
Rotary Wire Axis |
2KW |
2.7KW |
Spinner Axis |
0.4KW |
1KW |
Machine Axis |
1350*1500*1700mm3 |
1650*1700*1900mm3 |
Machine Weight |
1200kg |
2100kg |
FAQ
1. Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
2. Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years
3. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City. Guangdong province. When you arrive Shenzhen you can contact me,I will pick you up .
4. Q:How does your factory do regarding quality control?
A:Quality is priority. From material selection to machine completion, we will spend a lot of time to strictly monitor the operation of the machine. If the machine does not meet the quality we require, we will not ship it.
