Home > Office Supplies > Presentation & Bulletin Board > Whiteboard > Hivista Interactive Projector Module Im-100/200/300 PCB Board
US$ 100 - 150
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hivista
Place of Origin:
China
Model Number:
IM100/200/300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days
Related Products
-
Hivista Low Cost Portable USB Interactive Whiteboard Kit F-35 for SchoolsUS$ 120 - 180MOQ: 1 Set -
Hivista LED Elevator Advertisement Projector M16 Network Advertising Player Installed on Elevator DoorUS$ 500 - 600MOQ: 1 Set
-
Hivista Laser Shooting Training System & Interactive Projection Games & Shooting TargetsUS$ 3500 - 4000MOQ: 1 Set
-
Hivista Ultra-Short Focus LED All-in-One Interactive Projector Built-in ComputerUS$ 1100 - 1500MOQ: 1 Set
-
Latest 4k Video Portable P10 II Interactive Projector 2.4G/5G Wifi Touch Screen Mini Phone Wireless ProjectorNegotiableMOQ: 1
Brand Name
Hivista
Place of Origin
China
Model Number
IM100/200/300
Folded
No
Whiteboard Type
Interactive Whiteboard
Interactive Module with design of light weight applies to modifying of various long, short and ultra-short focus projectors, to let projectors have interactive whiteboard functions. This product utilizes the technology that high-speed IR camera lens tracking moving objects, realizes human-computer interactive function. It adopts HID interface design, compatible with USB 1.1, 2.0; Using newer, high efficient video compression algorithm to realize that image can be transmitted with high FPS in conditions of low bandwidth, improved product adaptability under various of light interference.
Features
1. Low-cost solution to transfer normal projector to be interactive
2. Lightest and smallest size
3. Multi-writing (Max 64 persons can write at the same time)
4. The size can be customized to adapt to any projector.
| Signal Receiver | |
| Realization Principle | Super-speed infrared track to locate |
| Port type | USB1.1. or USB 2.0 |
| Consumption current | <=160mA |
| Voltage | 5V (USB power) |
| Available wave length to receive signal | 808-940nm |
| Max USB transmission distance | <=20M USB signal amplifier) |
| Image dimension | 800*600 Interpolation 1600*1200 |
| Transmission FPS | 65~70 frame/sec |
| Positioning accuracy | 4096*4096 |
| Mouse Kbps | 65-70Ponit/s |
| Right-hand button | Fixed dot>800ms |
| Device driver | HID standard device, support PNP |
| Max available infrared dots to track | 128 |
| Receiving distance | >=0.4m <=1.7m |
| Receiving size | Refer to Appendix B |
| Operating Area | |
| Long-focus Module IM-100 | |
| Projection Application Size (Diagonal) | Distance between Receiver and projection (mm) |
| 60 inch | 1600mm |
| 80 inch | 1970mm |
| 100 inch | 2380mm |
| 120 inch | 3500mm |
| 150 inch | 3720mm |
| Short-focus Module IM-200 | |
| 60 inch | 710mm |
| 80 inch | 1050mm |
| 100 inch | 1400mm |
| 120 inch | 1780mm |
| 150 inch | 1950mm |
| Ultra-short focus Module IM-300 | |
| 60 inch | 400mm |
| 80 inch | 620mm |
| 100 inch | 780mm |
| 120 inch | 840mm |
| 150 inch | 1000mm |

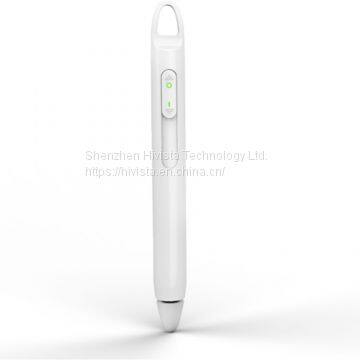

| E-Pen | |
| Movement Detection Technology | LED light |
| Power requirement | 3V CR 123A x1 |
| Pen Body Dimension | 13.2cm(length); 2cm(diameter) |
| Weight | 60g(with battery) |
| U-Pen | |
| LED size | 5mm |
| Battery | Built-in Li Battery |
| Pen Length | 17cm |
| Weight | 35g |
| Trigger methods | <1g for pressing |
| Button | Power Switch and Laser Pointer Switch |
| Power Supply | Chargable. |
| E-Pointer | |
| Movement Detection Technology | LED light |
| Control Buttons | 1 button (left and right click of a mouse) |
| Power Requirement | 3V CR 123A x1 |
| Weight | 90g |
| Length | 52cm |
