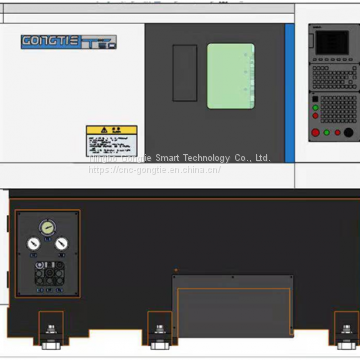

CNC lathe with heavy cutting
- 500 Set / Sets per Month
- NINGBO
- T/T L/C
- 80 days
You May Like
Product Details
| Place of Origin | China | Condition | New |
Product Description
cnc lathe with Slant Bed
slant bed lathe with programmable blowing
OEM slant bed lathe
T5,,a heavy cutting model with synchronism motor spindle, high-speed, high performance and profit, high rigidity.
Can single piece process or to process automatically with bar feeder or gantry loader.
*30 degree slant bed compact casting with integral structure provides superior rigidity; guarantee the machine’s turning lift time, accuracy and stability.
*The highly reliable pre-tensioned structure and full slide way cover is utilized to counteract the heat generation of the transmission sets, and better control the machine turning accuracy and stability.
*Handpicking famous brand components, taking hard rail as the X axis guide way, and heavy roller as Z axis guide way, to perfect meet the requirement of heavy cutting
*The head stock taking ITALY synchronism motor spindle with 11.5KW, to realize the heavy cutting, high speed and perfect product finish
parameter
| ITEM | SPEC. | UNIT | VALUE |
CAPABILITY | Max. swing dia. | mm | Φ520 |
| Max. turning dia. | mm | Φ300 | |
| Max. turning length | mm | 290 | |
STROKE | X axis | mm | 130 |
| Z axis | mm | 320 | |
SPINDLE | spindle structure | Three bearings front and two ones behind | |
| spindle nose | A2-6 | ||
| collet size | 36 | ||
| Chuck size | inch | 8 | |
| Bore of spindle | mm | Φ62 | |
| Max. bar through dia. | mm | Φ52 | |
| Spindle speed | r/min | 0-4500 | |
| Height from floor to spindle center | mm | ≈ 1120 | |
ACCURACY | Synchronism motor spindle | KW | 11.5 |
| Servo feeding motor | KW | 2.4 | |
| Min. traverse | mm | 0.001 | |
| X/Z axis rapid traverse | m/min | 24/30 | |
| External tool size | mm | 25 | |
| Boring bar holder | mm | 40 | |
| X/Z axis repeating positioning accuracy | mm | 0.002 | |
TAILSTOCK | Quill stroke | mm | 100 |
| Traverse stroke | mm | 200 | |
| taper | mm | MT4 | |
| Quill dia. | mm | 80 | |
| Machine total power | KW | 18 | |
| Dimension(LxWxH) | mm | 1920*2100*1740 | |
| Net weight | Kg | ≈3000 | |
