Core Sandwich Plates Sandwich Panel Aluminum Plate

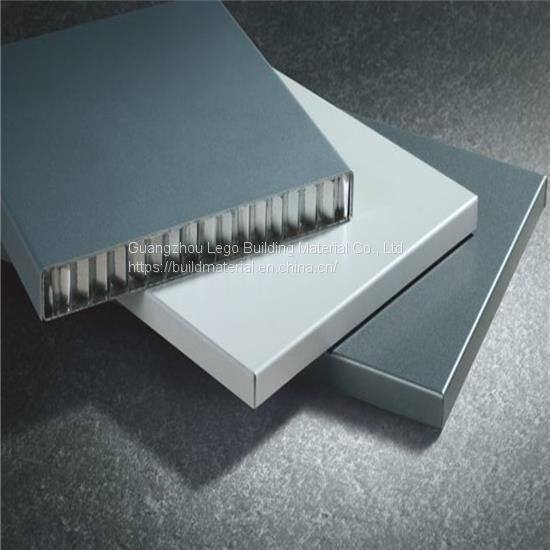

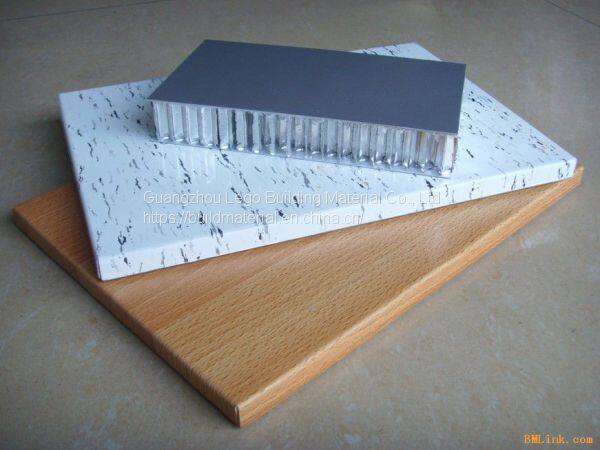

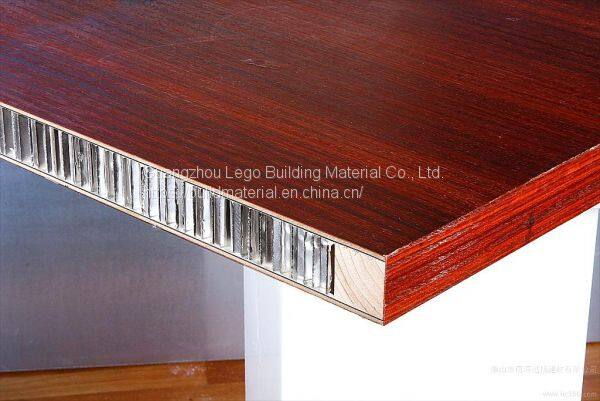

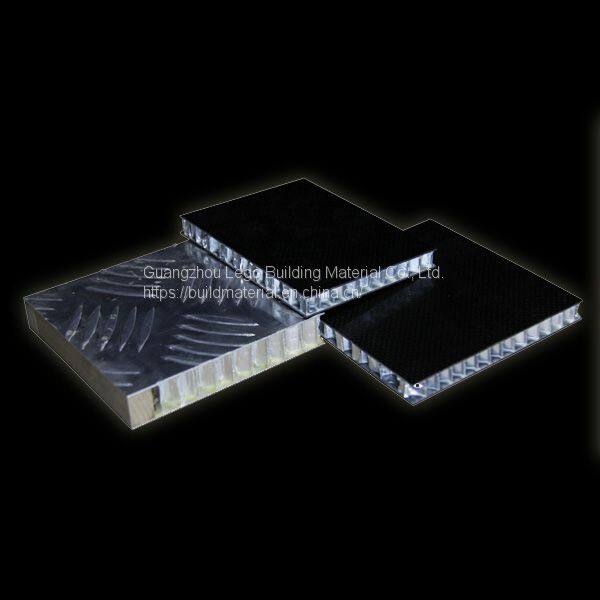

Honeycomb aluminum panel features

1. Large plate surface and high leveling do not require any reinforcement measures. Honeycomb aluminum plate surface size can be 1500*5000mm, and it can maintain excellent flatness.

2. The weight of the lightweight honeycomb aluminum plate is only 5-5.5KG/m2, which greatly reduces the load-bearing load of the building.

3, high strength can withstand high-strength pressure shear force, not easy to deform, can meet the requirements of super high-rise buildings wind pressure resistance.

4. Customized honeycomb aluminum panels can be customized according to customer's needs in terms of size, shape, paint surface and color.

5, the installation is simple and can be installed in any order, each wall panel can be separately disassembled and replaced, which improves the flexibility of installation and maintenance and reduces the cost.

6. The box-type honeycomb aluminum plate is a box-shaped structure with surrounding edges, which has good airtightness and improves the safety and service life of the honeycomb aluminum plate.

7, multi-purpose for building curtain wall, Baozhu, provocation, roof and outdoor ceiling.

Elevator engineering series

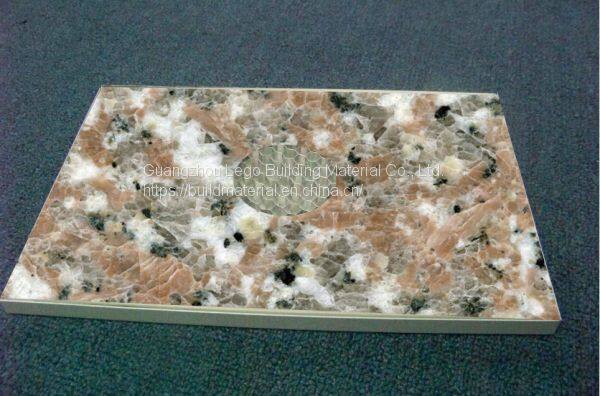

     Honeycomb aluminum and marble honeycomb panels have the advantages of fireproofing, heat preservation, sound insulation, shock resistance, heavy weight, cushioning resistance and light weight. It can greatly reduce the load of the elevator, and is the most ideal material for public elevators and cargo elevators.

Rail transit series

     Buses, trains, subways and rail vehicles, commercial transport vehicles and container truck bodies, shipbuilding, billboards, interior decoration works, interior partitions and merchandise display stands.

Honeycomb aluminum panels have the following advantages:

(1) Fire prevention: The aluminum plate is a non-combustible material.

(2) Corrosion resistance: Honeycomb aluminum plate is treated with epoxy fluorocarbon and has strong corrosion resistance. The salt spray was sprayed for 48 hours without cracking or foaming.

(3) Environmental protection: Honeycomb panels are pure aluminum products, which do not volatilize any harmful gases, no radioactivity and can be completely recycled, 100% environmentally friendly products.

(4) The honeycomb aluminum plate is easy to disassemble and assemble, and the plate is not removed. Due to its light weight and convenient transportation, it can be transported to different places for repeated use. This is not comparable to other partition plates.
