APPLICATION:
This range of water meter is used to measure the total quantity of cold
(hot) water which consumed in industrial and mining enterprise passing
through the pipeline.
Compliance with Standard: Technical data conforms to ISO4064 Class B
Standard for Horizontal installation
PRODUCT FEATURE:

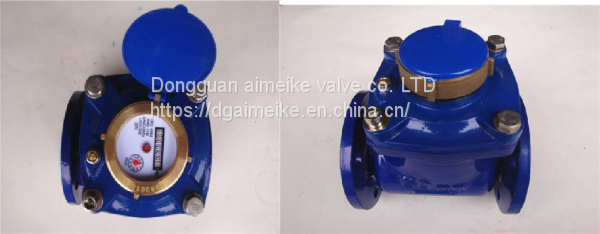

*Woltmann detachable type
*Dry-dial, Magnetic drive.
*Selected high quality materials for steady& reliable characteristic&, low
head loss and enable use a long life span.
*Vacuum sealed register ensures the dial kept free from fog and keep the
reading clear in a long term service.
*Universal use within this range detachable, without removing the
meter from the pipeline for a easy maintenance and replacement ,good
looking etc.
* Hot water meter and remote reading transmission system for option .
MAIN TECHNICAL DATA
Dia | Qs | Qp | Qt | Qmin | Starting | Min | Max | |||
Size | Overload | Nominal | Transitional | Min | Flow | Reading | Reading | |||
DN | Class | Flow | Flow | Flow | Flow | |||||
(mm) | ||||||||||
m³/h | L/h | m³ | ||||||||
50 | B | 30 | 15 | 3 | 0.45 | 150 | 0.01 | 9999999 | ||
65 | B | 50 | 25 | 5 | 0.75 | 170 | 0.01 | 9999999 | ||
80 | B | 80 | 40 | 8 | 1.2 | 280 | 0.01 | 9999999 | ||
100 | B | 120 | 60 | 12 | 1.8 | 400 | 0.01 | 9999999 | ||
125 | B | 200 | 100 | 20 | 3 | 800 | 0.01 | 9999999 | ||
150 | B | 300 | 150 | 30 | 4.5 | 1200 | 0.01 | 9999999 | ||
200 | B | 500 | 250 | 50 | 7.5 | 1500 | 0.01 | 9999999 | ||
250 | B | 800 | 400 | 80 | 12 | 2500 | 0.01 | 9999999 | ||
300 | B | 1200 | 600 | 120 | 18 | 6000 | 0.01 | 9999999 | ||
MAXIMUM PERMISSIBLE ERROR
In the lower zone from Qmin inclusive up to but excluding Qt is±5%
In the upper zone from Qt inclusive up to and including Qs is±2%
(Hot water meter±3%)
