CCTV 420tvl600tvl CCD Car Vandalism Security Video CCTV Bus/Truck/RV Side View Commercial Vehicle Dash Camera
US$ 9.75 - 14.35
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Wardmay/OEM
Place of Origin:
China
Model Number:
WDM-C6003B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vandal-Proof Car Safety Monitoring Camera 420tvl/600tvl CCD HD Indoor Vehicle Security CameraUS$ 9.95 - 13.95MOQ: 50 Pieces -
Ahd 720p Inside Bus Truck Taxi Indoor Mini Hidden Box CameraUS$ 10.7 - 10.7MOQ: 50 Pieces
-
420tvl CCD Indoor Video Surveillance Security Mini Hidden Vehicle Car Camera for Taxi/Car/BusUS$ 8.15 - 8.15MOQ: 50 Pieces
-
Vehicle Mini Dome Camera CMOS CCTV 1080P Car/Bus/Truck Indoor Camera With Starlight Night VisionUS$ 12.8 - 12.8MOQ: 50 Pieces
-
Top10 Cheap CCD 420tvl Car/Bus/Truck Indoor CCTV Dome Camera for Vehicle Mobile DVRUS$ 9.45 - 9.45MOQ: 50 Pieces
Brand Name
Wardmay/OEM
Place of Origin
China
Model Number
WDM-C6003B
Type
Analog Camera
Special Features
Waterproof / Weatherproof
Technology
Infrared
Sensor
CCD
Style
Hidden Camera
Car/Bus/Truck 420TVL/600TVL Rear View Camera
Features:
This is a closed circuit TV CCTV camera with mirror image used on car/bus /truck. It adopts 2.8mm lens which can form 120degree wide angle view .It is waterproof camera and water resistant level is IP67, so you can feel free to install outside. It can be worked with car DVR recorder, quad processor. It can be viewed through LCD monitor, TV and etc.
Metal structure is firm, safety and waterproof. All products have been passed through high-press soggy testing and electricity ageing test over 12hours.
Specifications
| Model | WDM-C6003B | WDM-C6003M | WDM-C6003N | WDM-C6003G |
| Image Sensor | 1/3 CCD3142+405 | 1/4 CMOSH7440 | 1/3 CCD 8050+639 | 1/3 CCD 4140+673 |
| Horizontal Resolution | CCD 420TVL | CCD 600TVL | CCD 600TVL | CCD 700TVL |
| TV system | PAL/NTSC | |||
| Effective pixels | PAL:512(H)×582(V) | PAL: 795(H)*596(V) | PAL:795(H)*596(V) | PAL:976(H)*582(V) |
| NTSC: 512(H)×492(V) | NTSC:811(H)*508(V) | NTSC:811(H)*508(V) | NTSC:976(H)*494(V) | |
| Minimum Illumination | 0.01Lux@(F1.2,AGC ON), 0Lux with IR | |||
| S/N | ≥48dB | ≥45dB | ≥48dB | ≥48dB |
| Auto Gain Control | Support | |||
| D/N Mode | IR cut Auto switching | - | - | IR cut Auto switching |
| Back light compensation | Support | |||
| White Balance | AUTO | |||
| Digital Noise Reduction | Adaptive digital noise reduction, 2D/3D-DNR | |||
| Electronic Shutter | AUTO/1/50(1/60) -1(50, 000Sec) | |||
| Image Function | Original/Reverse image | |||
| Output Adapter | 4P aviation head cable | |||
| Lens | 2.8mm/3.6mm lens | |||
| IR LEDS Quantity | 10pcs ir leds/white leds | |||
| IR distance | 10meters | |||
| IP grade | IP67 Waterproof | |||
| Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) | |||
| Power Supply | DC12V±10% | |||
| Power Consumption | ≤1.2W | |||
| Customization | 1. Wide voltage: 9V~24V/9V~36V | |||
| 2. Custom Auido board | ||||

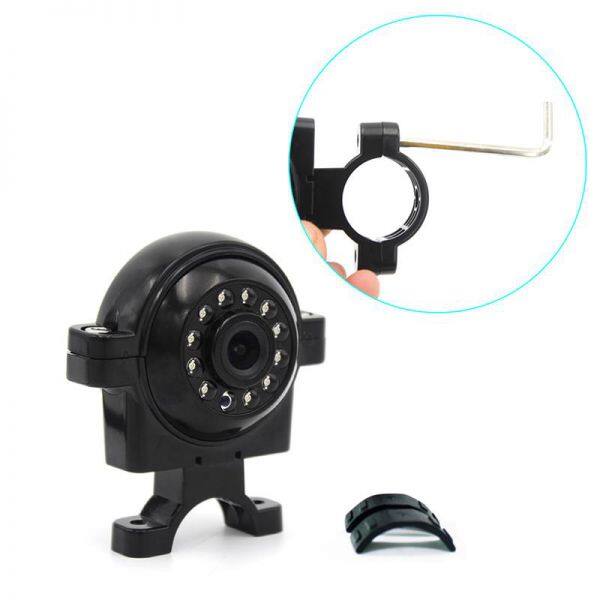

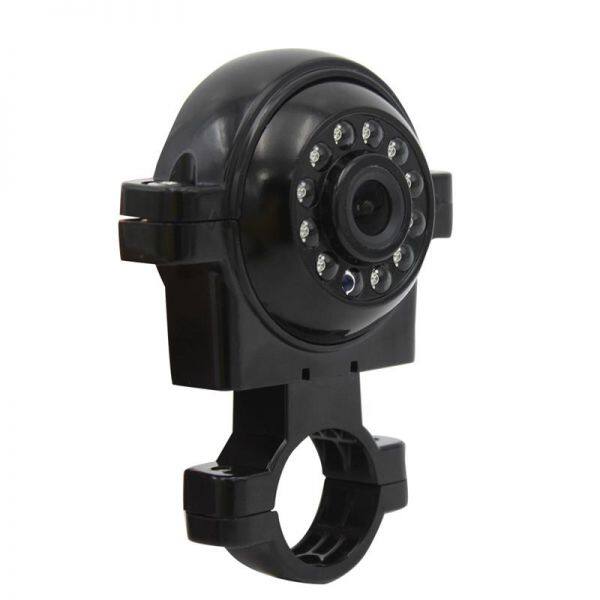

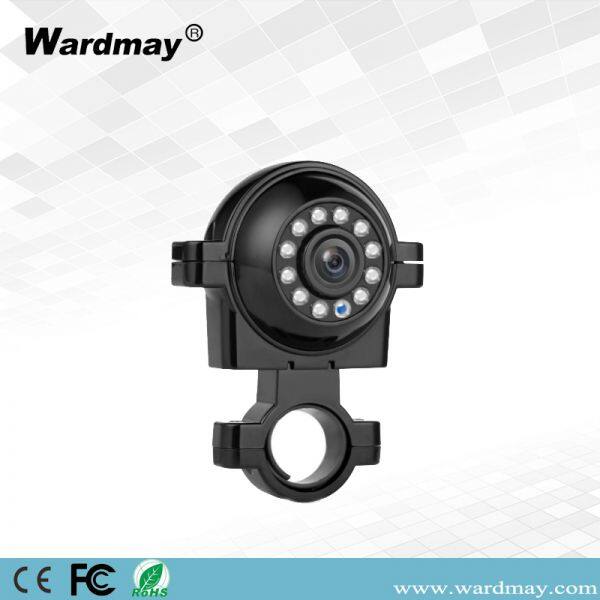

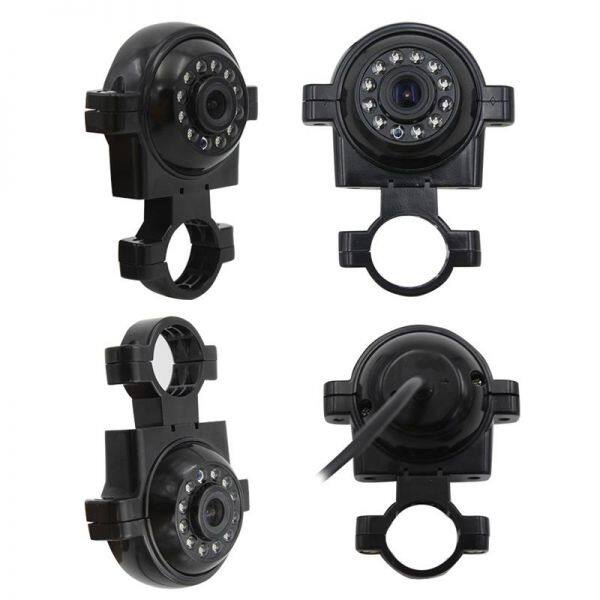

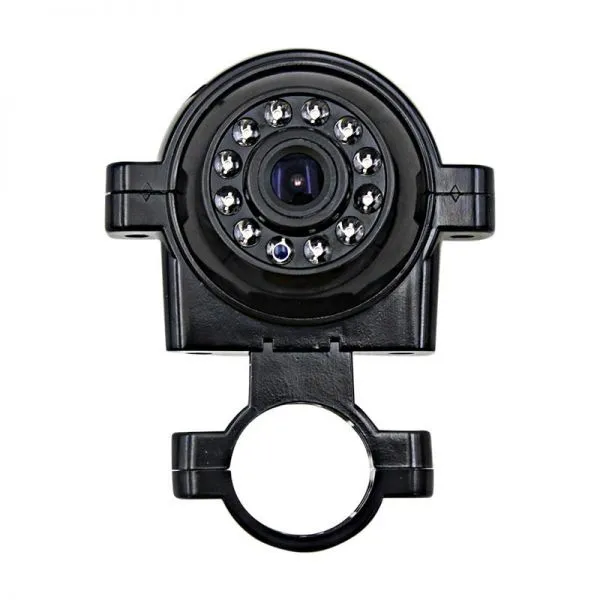

Product Show
