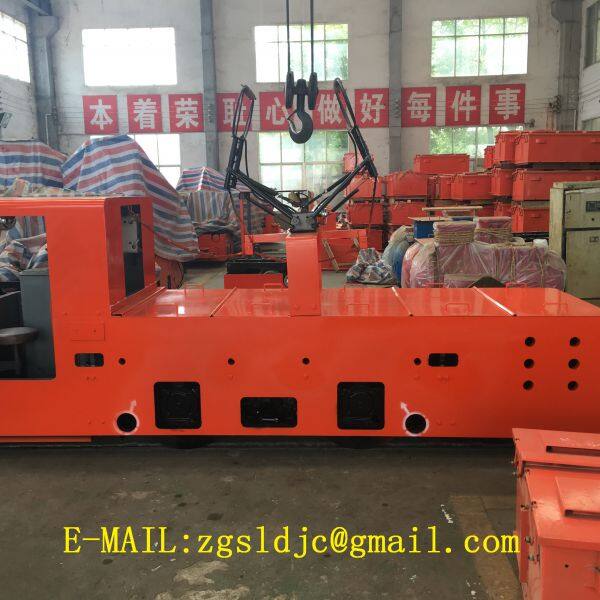

High Reflective Cjy7/6gp 7t High Reflective Electric Trolley Locomotive
- T/T L/C Other
You May Like
-
Electric Mine Locomotive High Reflective Cty8 600mm 700mm 900mm
-
Trolley Electric Locomotive Cjy14/6gp 14t Mining Railway
-
Trolley Electric Locomotive Cjy10/6.7.gp Underground Trolley Overhead Line
-
Coal Mine Locomotives Explosion Proof Cjy7/6g(b/p)-250v
-
Cjy18/9gp Coal Mine Locomotives Explosion Proof
-
Trolley Powered Cjy7/6g(b/p)-250v Line Mining Locomotive
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Specifications:
1.Long service life of gear
