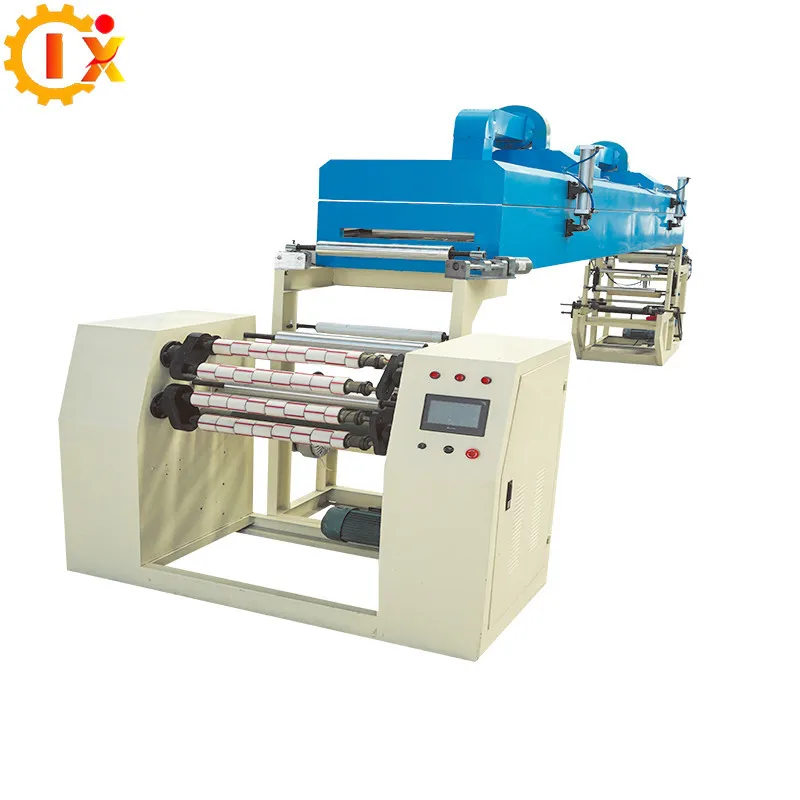

GL-500E Industrial BOPP Packing Adhesive Tape Making Machine
- 300 Set / Sets per Month
- Packing Adhesive Tape Making Machine delivery Qingdao/Shanghai/Tianjin
- T/T L/C
- Economical, Efficient and Energy-Saving Manual Screen Printing PU Scraper Cleaning Machine
- Tamprinter glitter powder machine The operating principle
- flame treatment machine TM-F4 car bumpers flame processor equipment
- Air-Gas burner Bottle flame treatment machine with automatic ignition
- Manufacturer Wholesale Custom Tamprinter glitter powder machine
- Factory Supply Tamprinter Squeegee Clean machine for sale
Product Details
Brand Name: | Guolian | Place of Origin: | China | Model Number: | GL-500E |
Certification: | TUV | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 2500KG |
Dimension(L*W*H): | 7.6M*1.3M*2.6M | Voltage: | 380V | Power: | 18kw |
Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Condition: | New | Automatic Grade: | Automatic |
Packaging Material: | Plastic | Packaging Type: | Other, Packing Adhesive Tape Making Machine is Standard Container or as your special requirements |
Product Description
Function: Packing Adhesive Tape Making Machine making printed &clear & color different sizes small tapes on same machine by one step from raw materials (bopp film,water based pressure sensitive glue,paper core)
Features:
1.Oven top wholly opening : Easy film putting in oven & cleaning & checking
2.EPC for guiding right direction of film walking & flat rewinding edge of the tapes.
3.Energy saving temperature control: Two segmented automatic temperature controls.
4.PLC control system with touch screen control panel. Simple operation, more user friendly.
Technical parameters of Packing Adhesive Tape Making Machine:
Item | GL-500E |
Dimensions | 7.60m*1.3m*2.40m |
Power | 3-phase,380v,50Hz,15kw |
ating width | 500mm |
ating speed | 25m/min |
Max.loading diameter | 600mm |
Max.rewinding diameter | 180mm |
Drying | heating water by electricity |
All our certification is REAL ONE.NOT FAKE,NOT FAKE,NOT FAKE!!!
Please Contact Us To Show You tape making machine making tapes .
Packing Adhesive Tape Making Machine production process
Production process :
Final product:
We have our own R&D department, talented engineers with more than 10 years experience. We dedicate to supply superior quality products to customers all over the world. Customers can visit our factory and production base any time.
As the development of our business activities,our products have gained good reputation in east Asia, southeast Asia, central Asia, Arab countries like Korea, Australia, Mexico, Thailand, Vietnam, Jordan, Egypt Pakistan, Turkmenistan,UAE, Russia etc.
We firmly stick to honesty principal to build good partnerships with all customers. We will join your hands together to create more wealth for our society!
Two hours from Guangzhou to our factory by air.
90mins by air from Shanghai .
We directly pick you up at our Xinzheng International Airport.
Our factory address:
Xueyuan Road NO.168 ,Mazhai Industrial Park,Erqi District, Zhengzhou City ,Henan Province,China.
This is the feedback from the customer:
1. Product quality: Quality tesing records in manufacturing & expriments.
2. Price guarantee: Fine & brand quality materials,parts on machine.
3. Delivery guarantee: Related brochures along with delivery:
operation&maintenance;
installation drawing;
operation books for relater parts of outer supply;
spare parts list and stand accessories.
4. After sales guarantee: The seller is responsible for changing the parts which have the quality problem of the machines in one year,but except from the wearing parts and the quality problem were leaded by wrong operation and other man-made factors,and the quality problem should be confirmed by two sides.
Shipping:by express,by air,by sea
packing:carton box,wooden frame,wooden case,fly case
