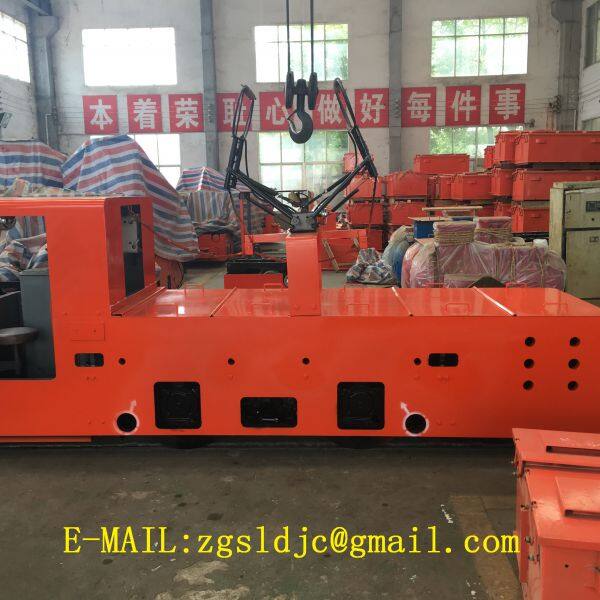

Cjy7/9g-250 Railway Locomotive Trolley Electric Locomotive
You May Like
-
Underground Trolley Overhead Line Cjy14/6gp 14t For Coal Mining
-
Trolley Locomotive Cjy3/6.7.9g For Coal Mine Power Equipment
-
Trolley Locomotive Mine Aerial Cable Locomotive Cjy7/6gp 7t
-
Electric Mine Locomotive For Underground Mining Cjy7/6g(b/p)-250v
-
High Safety For Coal Mine Transportation Cjy14/6gp 14t
-
Coal Mine Locomotives Cjy7/6g(b/p)-250v For Coal Mining
Product Description
Specifications:
1.Long service life of gear
2.More powerful traction effort
3.Faster running speed
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
