Honeycomb Panel Available Transparent And In Colors Apply Into Tim Fileds

Application:

Polycore PC honeycomb can apply into window to save energy consumption, the window installed with transparent PC honeycomb can lessen heat loss 80 percent than common window;

Polycore PC honeycomb can cut to round shape or designed shape to install into lighting system to get unique lighting appearance.

Polycore PC honeycomb can apply into camera to get special effection photo; Polycore PC honeycomb can apply into lighting to get special result.

Polycore  PC honeycomb can directly apply into farm glasshouse; Polycore  tranasparent PC honeycomb plates can be applied in solar air heating, warming, drying.

Built-in Collecting and storing solar energy heater with Polycore pc honeycomb run in low or high sunshine efficiency is better than vacuum heater. Solar heater with PC honeycomb run stable in winter and price is cheaper than vacuum heater,easy to match to building roof.

Honeycomb activated carbon filter is composed of the Polycore PC honeycomb structural and activated carbon granules or powder. It is not only easy to be assembled but also competent for adsorption.  Mainly used for air purification, removing volatile organic compounds and the dust, smoke stench, toluene, polluting substances such as methanol in the air conditioner. Honeycomb actived carbon filter widely used for air purifier, Air conditioner, Air-conditioning fan, The exhaust air production equipment and family health supplies.

Polycore pc honeycomb apply into wind tunnels — grilles, sandwich cores, radome, skylights, energy absorbing structures and TIM fileds.

Product Description

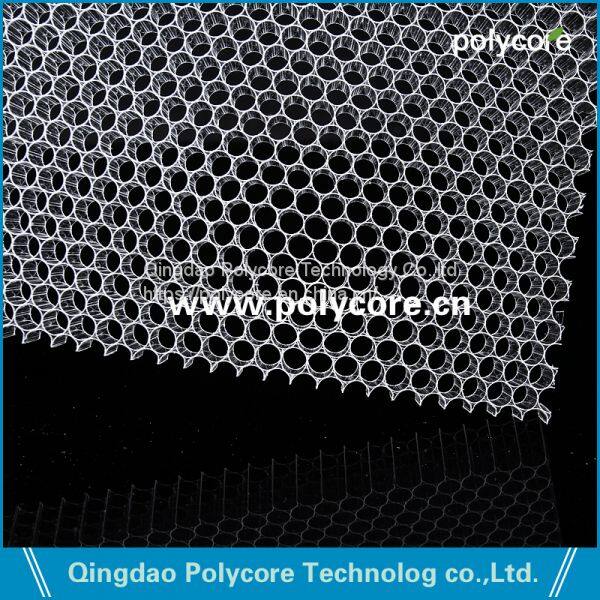

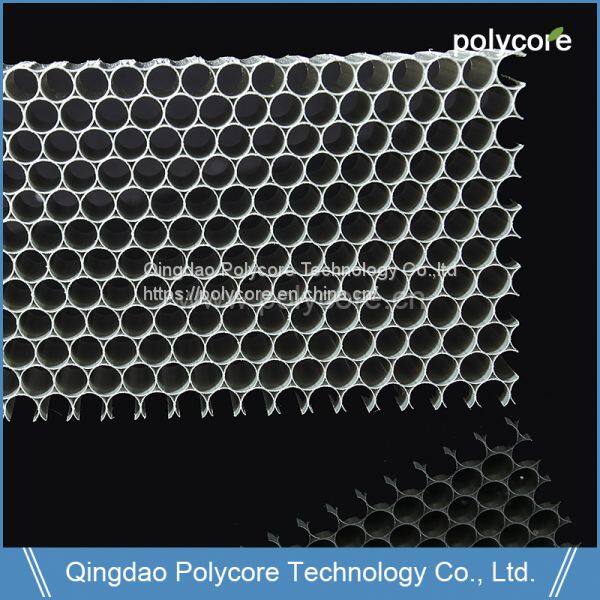

Polycore PC honeycomb is specially three dimensional structure,so it's more steady and equilibrium than other two dimensional honeycomb structure. PC honeycomb core stand by tightly to provide excellent compressive strength,besides PC honeycomb holds following characteristics, so that bring widly application in different project and fields.

--  Lightweight stiffness strength

--  Insulated

--  Fire resistant

--  Corrosion resistant

--  Fungi resistant

--  Energy absorption

--  Excellent dielectric properties

--  Good thermal and electric insulator

--  temperature -40 + 110 celsius degree

--  Available transparent and in colors

Availability:

Available corecell diameter: 3.0mm---8.0mm

Common dimension: 1260x630mm (PC3.0,PC3.5,PC6.0,Grey color)

Standard dimension:1220*2440mm (PC6.0,PC8.0,Transparent color)

Max dimenstion:1250x3560mm (PC6.0,PC8.0)

Thickness: 2mm---80mm   Tolerance:+/-0.3mm

Common corecell diameter we supplying is 3.5mm , 6.0mm,7.0mm and 8.0mm,if you need other corecell we can make it too (order quantity is reach to 40’c once time).

Common length is within 1260mm,width and thickness is made according to customer requirement. There are transparent, grey and black can be selected as color.

Special dimension,corecell,color,tolerance,shape can be made according to clients request.

Company introduction:

Qingdao Polycore Technology Co., Ltd is plastic honeycomb and honeycomb series products expert manufacturer . main products are PP honeycomb, PC honeycomb, FRP pp honeycomb composite board,non-woven roving fiberglass PP honeycomb composite board,PC sheet,PC honeycomb composite board ,transparent honeycomb,transparent plates,honeycomb panel,honeycomb plates supplier from China.
