Nipple Graphite Electrode Nipple

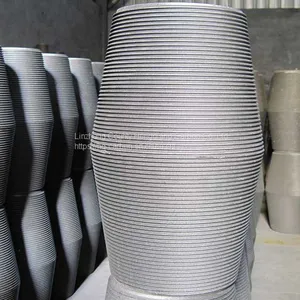

Nipple Graphite Electrode Nipple thumbnail-1
Nipple Graphite Electrode Nipple photo-1
Negotiable MOQ: 10 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Hengqiang
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Linzhang County Hengqiang Carbon Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hengqiang
Place of Origin China

Nipple Graphite Electrode Nipple  Graphite Electrode Nipple supplier

DESCRIPTION

Nipple is used as a joint for the electrode. The conical joint not only has high flexural strength, but also is easy to connect.



SPECIFICATION

We supply 4 types of nipples: 3TPI/3TPIL/4TPI/4TPIL.



4 TPIL Nipple/4 TPI Nipple Dimension Table

Electrode diameter

Joint

Joint hole

Pitch

D

L

d2

l

d1

H

75

46.04

-0.5

76.2

-1.0

20.8

-30

6

39.72

0.5

41.10

0.5

6.35

100

69.85

-0.5

101.6

-1.0

40.3

-30

6

63.53

0.5

53.80

0.5

6.35

130

79.38

-0.5

127.0

-1.0

45.6

-30

6

73.06

0.5

66.50

0.5

6.35

150

99.08

-0.5

139.7

-1.0

56.2

-30

6

85.76

0.5

72.85

0.5

6.35

200

122.24

-0.5

177.8

-1.0

80.0

-30

6

115.92

0.5

91.90

0.5

6.35

250

155.58

-0.5

220.1

-1.0

103.8

-30

10

147.14

0.5

113.05

0.5

8.47

300

177.17

-0.5

270.9

-1.0

116.9

-30

10

168.73

0.5

138.45

0.5

8.47

350

215.90

-0.5

304.8

-1.0

150.0

-30

10

207.47

0.5

155.40

0.5

8.47

400

241.30

-0.5

338.6

-1.0

169.8

-30

10

232.87

0.5

172.30

0.5

8.47

450

273.0

-0.5

355.6

-1.0

198.7

-30

10

264.62

0.5

180.80

0.5

8.47

500

298.45

-0.5

372.5

-1.0

221.3

-30

10

290.02

0.5

189.25

0.5

8.47

600

317.50

-0.5

457.2

-1.0

233.5

-30

10

324.00

0.5

243.50

0.5

6.35



Linzhang County Hengqiang Carbon Co., Ltd is the professional manufacturer for graphite products in North China, Hebei province.

The main products are : Graphite Electrodes with RP/HP/UHP or customized according to your needs.

Other Graphite products are: Graphite crucible, Graphite powder, Graphite rotor, Graphite tube, Graphite boat, Graphite rod, Graphite block, Graphite mold, etc., from raw materials to finished products, strictly implement international standards. With the advantages of high strength, high temperature resistance, corrosion resistance, good performance in vibration, shows strong anti-oxidation activity, low resistivity and some other good characteristics.
