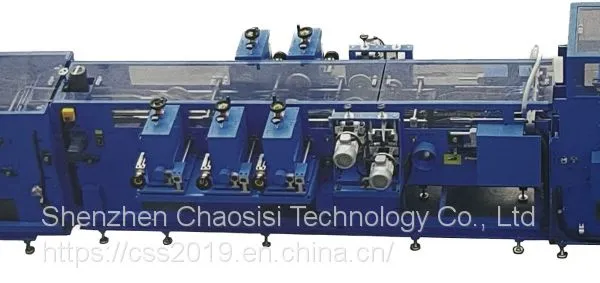

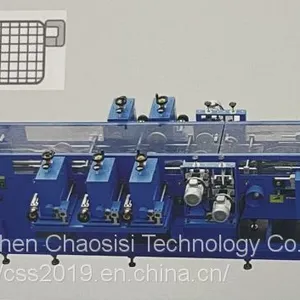

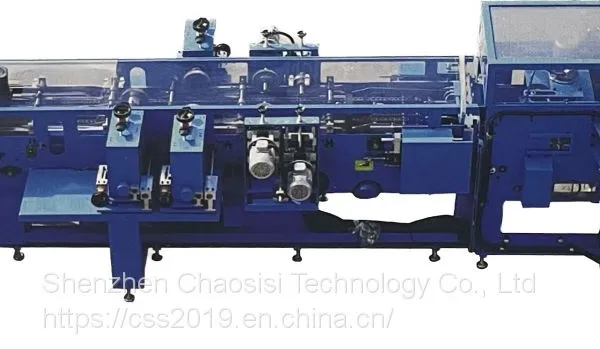

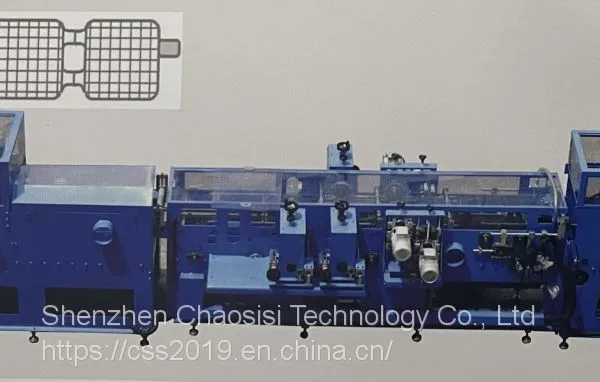

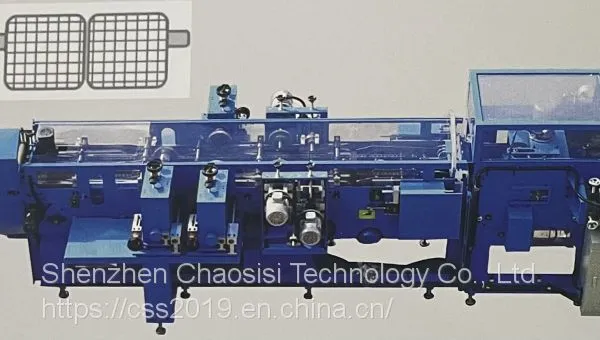

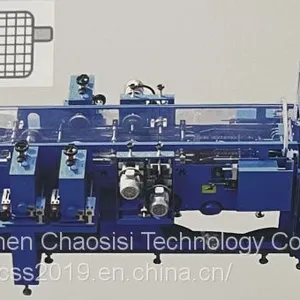

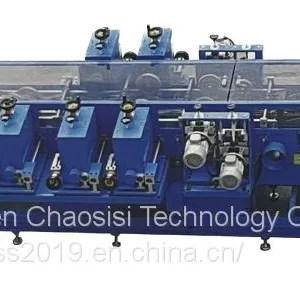

APCBM-022321 Plate Cutting and Brush Machine Lead-acid Battery

FUNCTION

Applied to the plate: with false pole ear plate total width of 380mm, and remove the false pole ear plate horizontal maximum size 360 (mm), the plate longitudinal largest size 140 (mm), thickness: 1.1 -5 .0 mm specific to provide the buyer with the drawings in consultation.
System Features Remarks

1. The device uses the main roll forming roll cutting, high precision slitting, no waste generated.
2. Sucker material cutter adjustable spacing compatible slitting nine contiguous parts of the plate.
3.  Brush the photoelectric machine to ensure the safety of equipment performance.
4, the chain support rails for the stainless steel, corrosion-resistant, does not affect plate performance.
5. It has a sub-board automatic counting a set number of sub-board stacking conveyor, put two-piece, very ears slitting scrap automatic transmission collection features.
6. PLC control, high reliability, and ease of maintenance.

7. Longitudinal and transverse conversion using the company's patent for the agency, for the fast and stable, and completely changed the ills of similar equipment, the roll cutting speed from the 20-30 slices per minute to 60-100 slices per minute.

8. Entire channel using the partial closure of patent, and to minimize the generation of lead dust and lead residue recycling, while better protecting the machine itself is less affected by the infringement of lead dust, to extend the life of the machine.
