Air Conditioning System Tube Cleaner for Descaling and Swabbing of the Tube

Air Conditioning System Tube Cleaner for Descaling and Swabbing of the Tube

CM is one of the earliest factories in developing and manufacturing rotary tube cleaners. The CM-II/III is the third generation of the original rotary tube cleaner. All our rotary tube cleaning machines make tough tube cleaning a simple, one-person operation. They are ideal for cleaning tubes/pipes 6.35mm-25.4mm (1/4'-1') I.D.In chillers, condensers, evaporators, absorption machines and heat exchangers etc.

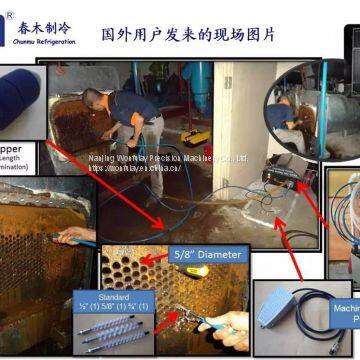

The CM-II/III air conditioning Tube Cleaner uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. As the shaft rotates inside its watertight nylon casing,the unit feeds water through the casing to the cleaning tool. A foot switch controls shaft rotation and water flow.While the operator feeds the rotating shaft assembly through the tube, the water flow flushes out deposits as they are loosened.

Application:
CM-II/III air conditioning Tube Cleaner Used for central air conditioner of Carrier, York, Trane in condenser, chiller, evaporator, absorption machine, heat exchanger and pipes which need maintenance frequently etc.

Features:
Professional equipment- no damage to pipe.
Simple to operate- minimal training required.
Reversing available
Stainless steel construction-long life.
Quickly connect and disconnect the flexible shaft- no tools required.
Interchangeable cleaning tool- versatile.

Standard Configurations:
Flexible shaft(1 piece) Φ=12mm, long=7.6m
Nylon brush(3 pieces), each diameter 12.7mm, 15.9mm, 19.1mm
Foot switch(1 piece)
Connector plug(1 piece)
Instruction manual

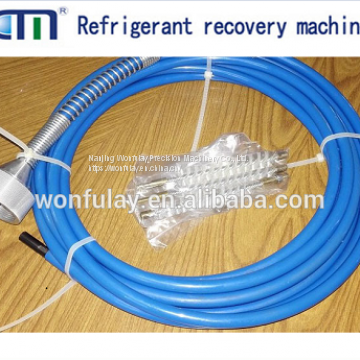

Flexible shaft:
6mm flexible shaft(standard length 3.7m) is suitable for pipe diameter 6.4mm-9.5mm
10mm flexible shaft(standard length7.6m) is suitable for pipe diameter 11.1mm-25.4mm
12mm flexible shaft(standard length 7.6m) is suitable for pipe diameter 12.7mm-25.4mm

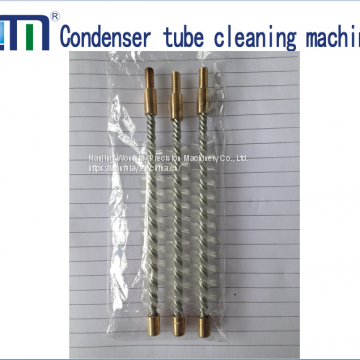

Brushes:
(Nylon brush/brass brush/stainless brush) 6.4mm, 7.9mm,9.5mm, 12.7mm, 14.3mm, 15.9mm, 17.5mm, 19.1mm, 20.6mm, 22.2mm, 23.8mm, 25.4mm
Flexible shaft maintenance components: power end connector(4 pieces), brush connector(4 pieces), crimping tool (1 piece), anti-rust lubricant(1 bottle), oil gun for smoothing flexible shaft(1 set).

CM-II /III factory price Air condition Portable Tube Cleaner pipe cleaner

Any special requirements, please feel free to contact us.
