Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion

Shandong Huaxia Master Group Co.,Ltd
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion thumbnail-1
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion thumbnail-2
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion thumbnail-3
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion thumbnail-4
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion thumbnail-5
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion photo-1

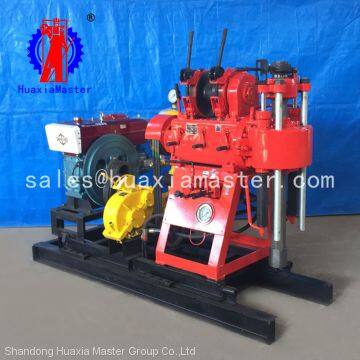

Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion photo-2

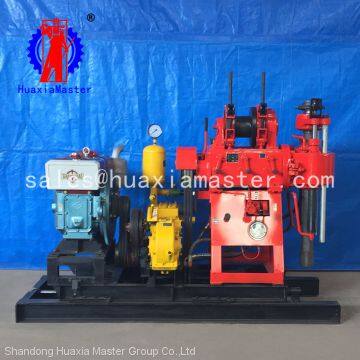

Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion photo-3

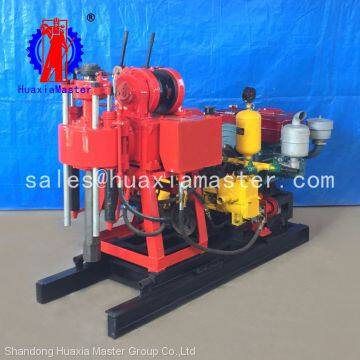

Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion photo-4
Diesel Power XY-200 Hydraulic Water Well Drilling Machine/geological Exploration Drilling Rig on Promotion photo-5
US$ 3200 - 6899 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
XY-200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HuaxiaMaster
Place of Origin China
Model Number XY-200
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 760KG
Dimension(L*W*H) 2.75*0.95*1.60 M
Power Type Diesel
Voltage 380V
Usage Other, water well ，engineering exploration
Condition New
Power(W) 22HP


.jpg

   XY-200 hydraulic core drilling rig

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Maximum opening diameter

400mm

Maximum borehole depth

200m

Diameter of the end hole



75mm

Borehole dip angle

90-75°

Machine overall size

2.75*0.95*1.60m

Drill pipe diameter

50mm

Weight of drill rig diameter of drill pipe (without power)

760kg

A vertical scroll of painting

Shaft rotation speed



71/142/310/20r/min

Vertical axis stroke

450mm

Windlass

Maximum lifting weight of single rope

2008kb

Drum lifting speed

17/35/75/160 rm/s

Wire rope diameter:

13mm

Wire rope capacity

35mm

Width of sluice

70mm

Mud pump

Type: horizontal single cylinder double action

flow:180L/min

Maximum pressure



1.5mpa

Working pressure

0.7mpa

Inlet size

50mm

Outlet pipe diameter

45mm

Power

Diesel oil

22hp

Rated speed

2200r/min

Electric machinery

15kw

Rated speed

1460r/min

 .jpg

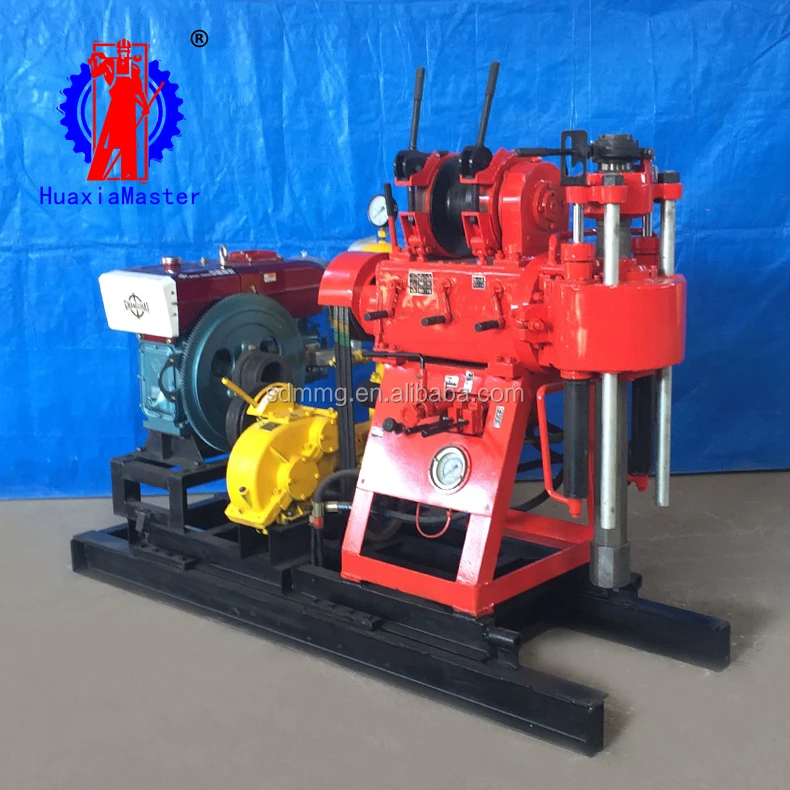

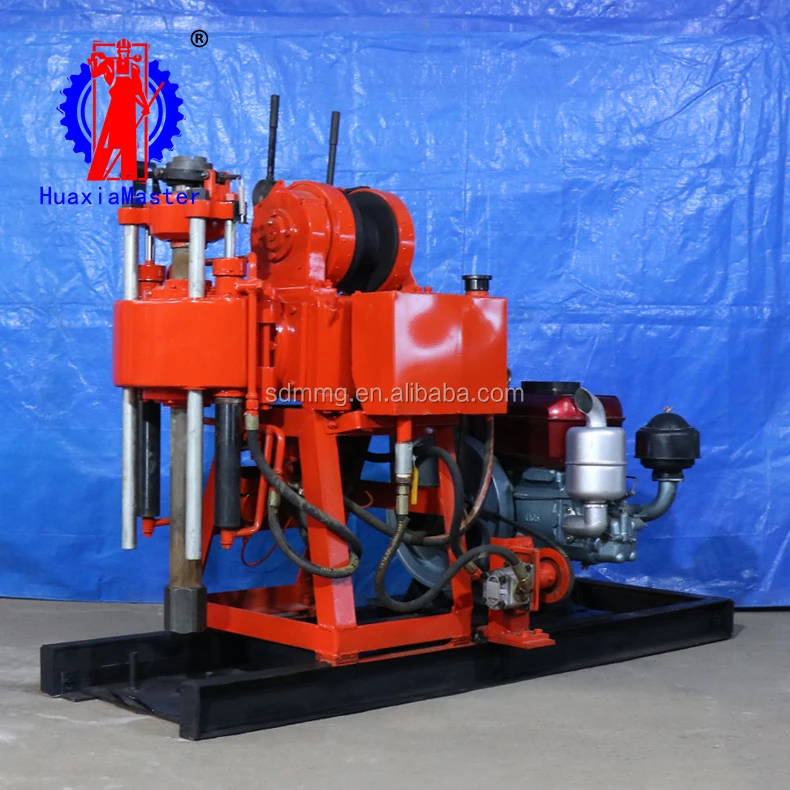

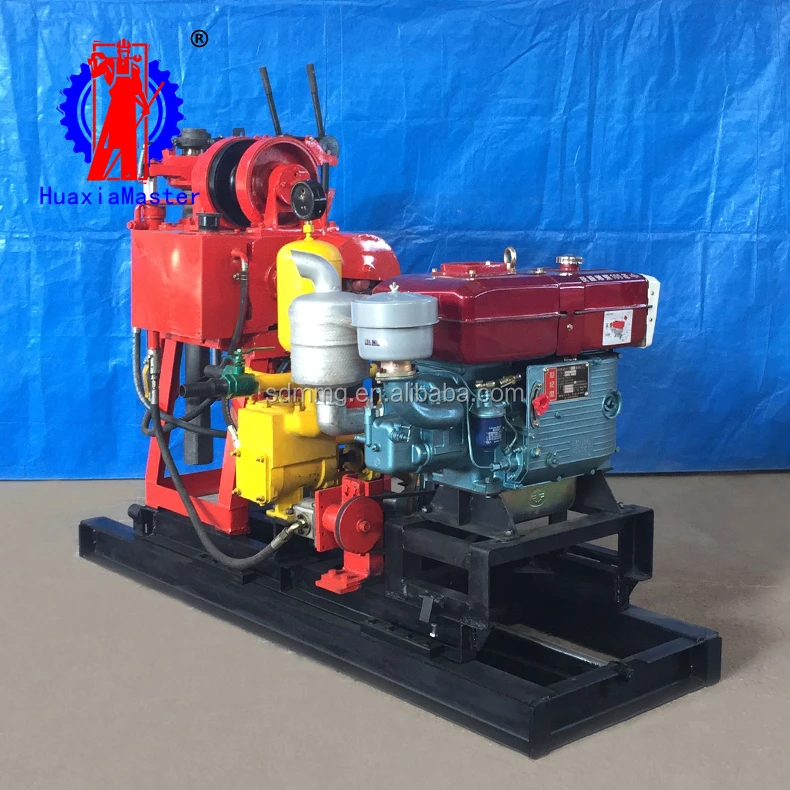

XY-2005XY-2002XY-2001XY-2004XY-2006XY-2003

.jpg



Product Tags: Water well drill machine , geological exploration drilling rig , 200m depth engineering drill
