Energy Saving Heat Pump Dryer/No-Pollution Air Source Heat Pump Dryer Machine For Sea Food

Energy Saving Heat Pump Dryer/No-Pollution Air Source Heat Pump Dryer Machine For Sea Food

1. Product Description

The air heat pump dryer is finned evaporator, compressor, fin condenser (machine) and expansion valve of four parts, by making the working medium continuously complete evaporation (absorb heat from the outdoor environment) to compression, condensation (gives off heat drying room) indoors to throttle, thermodynamic cycle process of evaporation, again to the external environment at low temperature in the heat transfer to the drying room, under the action of refrigerant in the compressor circulating in the system.It made within the compressor gas booster heating process (temperature up to 100℃), it enters the release of the high-temperature heat drying room air, while being cooled and translated into flow liquid when it runs to the outside machine, rapid heat evaporating liquid into a gas again, at the same time, the temperature can fall to - 20 ℃~ 30 ℃, then the air surrounding the heat absorber will continue to transfer heat to the refrigerant.

2. Principle

   The heat pump drying technology uses a working medium (such as ammonia, water, etc.) to evaporate under reduced pressure in the evaporator, so that the surface temperature of the evaporator is lower than the indoor air dew point, so that when the air flows through the evaporator, it is cooled and lowered below the dew point. When the excess steam in the air is condensed and precipitated on the surface of the evaporator, the condensed water is poured into the water tray and then drained into the water container by the drain pipe. After the liquid working medium is heated and vaporized, it is sent to the condenser through the compressor, and the condenser emits a large amount of latent heat of vaporization under high temperature and high pressure. When the air cooled in the evaporator passes through the condenser, the endothermic temperature rises, and is discharged in a dry state, and is mixed with the room air. Thereby reducing the indoor air humidity and achieving the purpose of drying and dehydrating.

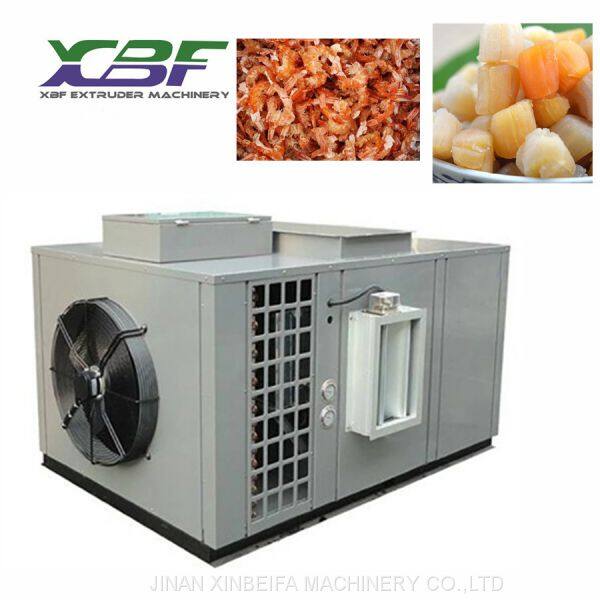

3.Product Pictures

 Drying seafood: Sea fish, Shrimp, Trepang, Hippocampi, etc.

.

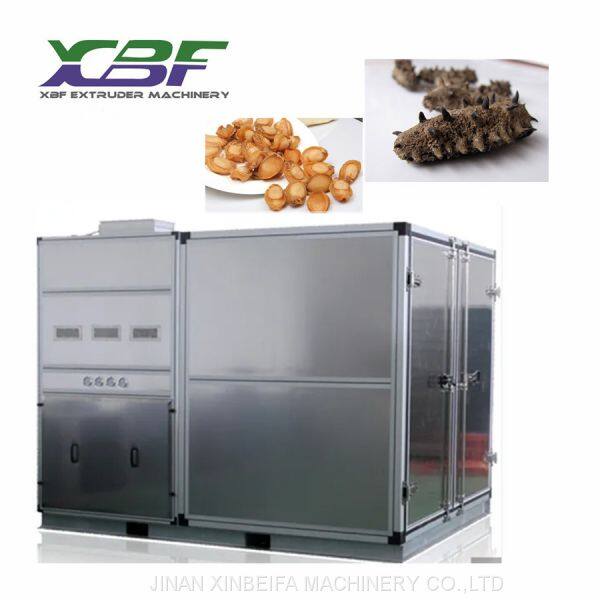

4.Products Details Show

5.The Technical Parametrs Of Oven

6. Dryer Features:

1- Most of the hot air circulates in the tank, which is highly efficient and saves energy.
2- With forced ventilation, the box is equipped with an adjustable air distribution plate, and the material is evenly dried.
3- The heat source can be widely used in steam, hot water, electricity, and hot air furnaces.
4- The whole machine has low noise and stable operation. Temperature control, easy installation and maintenance.
5- Wide range of applications, can dry a variety of materials, is a general drying equipment.

7.Composition of heat pump drying system

8. Early warning system: early warning can be set according to the requirements of the user, according to the time, temperature, humidity and other parameters, convenient to remind the user.

8.The advantages of dryers

1, stable, not restricted by the weather: whether cloudy days and rainy days, day and night, wind and snow, all-weather stable operation.

2. Energy saving and high efficiency: using clean electric energy to work, the drying operation cost is only 40% of oil drying equipment, 60% of coal drying machine and 30% of electric heating drying machine, saving more than 60% of energy compared with ordinary drying equipment.A closed dehumidification mode is adopted, without discharging waste heat to the outside world.Patented level 3 waste heat recovery technology, rapid discharge of water while your heat loss.

3. Good effect: the finished product after drying has a good appearance;High active components;Uniform drying, 360 degrees without dead Angle drying.

4. Small footprint and easy installation: the equipment only needs a small installation site;Drying room on site assembly is simple and convenient.

5, intelligent, unattended: the touch screen programmable intelligent control system, a key to start the unit automatic operation, no need to turn over materials, no need to replace the baking tray and cart, no need for special guard

6, safety: the use of electrical separation technology, no risk of electric shock leakage, no inflammable fire, explosion and other dangers.

10.Our service

1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free installation and commissioning of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6.Free new production techniques and formulas;
7. Provide 1 year complete guarantee and life-time maintenance service;
8. Engineers available to service machinery overseas.
9. Provide technical exchanging
10. Provide English Version of Installation/Operation/Service/Maintenance Manual

11.Delivery And Packing

For heat pump dryer parts---with plywood
For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood

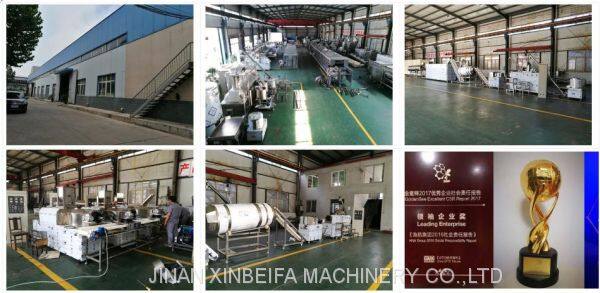

12.Company Profile

  Jinan xinbeifa machinery equipment co., LTD. Has professional designers, experienced technicians and first-class processing equipment, for the manufacture of naive equipment identification a solid foundation. With years of experience, our company has independently developed a variety of expanded food equipment and front and rear end auxiliary equipment, the product sales throughout the country all provinces, cities, autonomous regions, more exports to Australia, the Netherlands, Pakistan, Malaysia, myanmar and other Asian, European, American countries.. Our company adhering to the "professional casting quality, integrity to win the future" business purposes;In the principle of mutual benefit and common development, based on a high starting point, large investment, high level of operation;Adhere to high standards, zero defects, refined production standards, ensure that every production link, to create a safe and high-quality brand.

If you are interested in our heat pump dryer, please contact us for more information, such as catalogue, video,etc.
