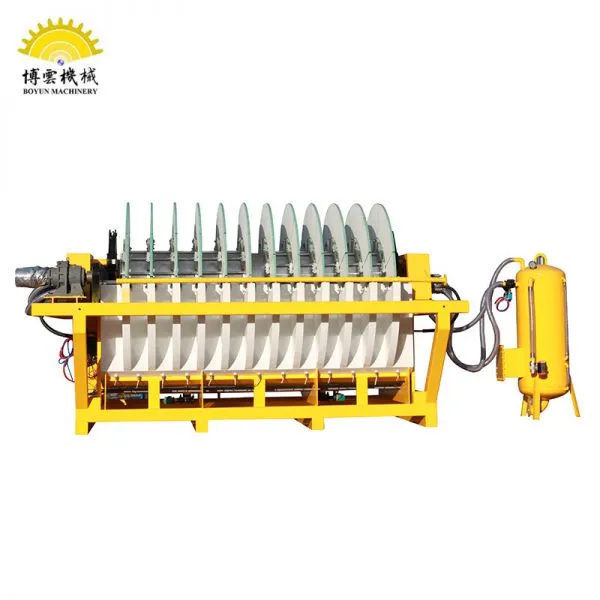

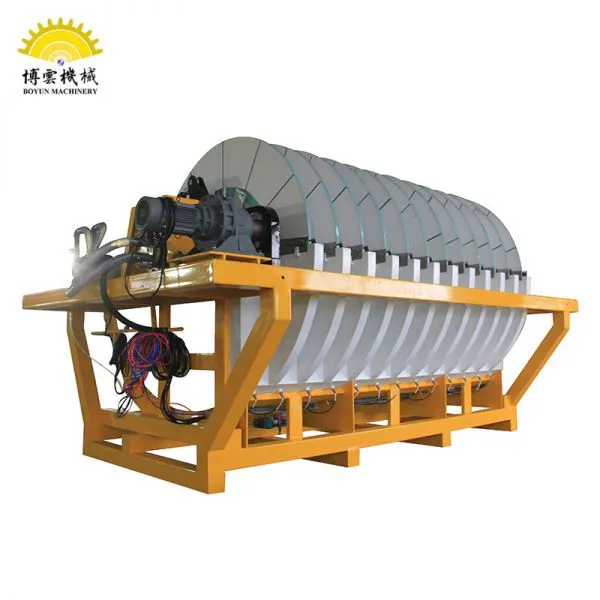

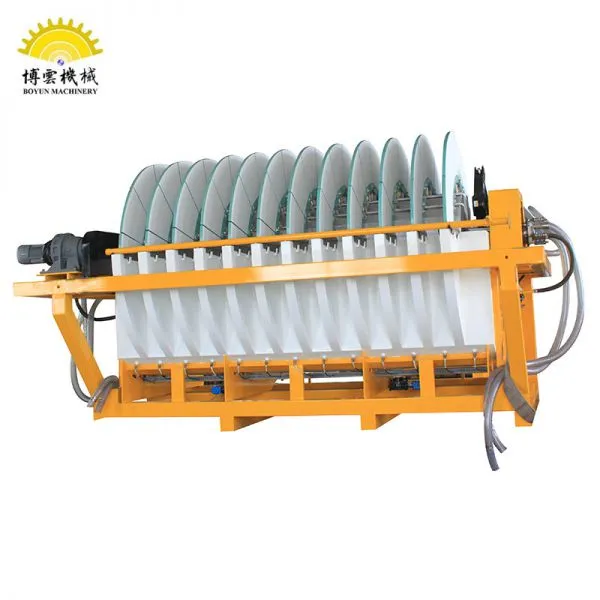

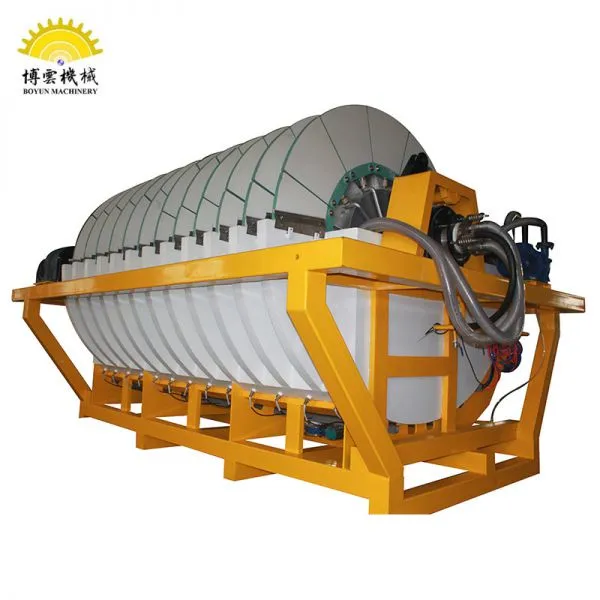

Washing plant cement plant wastewater solid-liquid filtration equipment

Name: Washing plant cement plant wastewater solid-liquid filtration equipment
Brand: Boyun
Price: USD $10000 - 200000 / Set

FOB Price

USD $10000 - $200000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao,Shanghai
Payment Terms:T/T Other
Delivery Detail:14 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Boyun	Place of Origin:	China	Model Number:	BY-45
After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	1 Year	Weight:	7.0t
Dimension(LWH):	473030002860	Certification:	ISO9001	Condition:	New
Power(W):	15.7 KW	Automatic Grade:	Automatic

Product Description

Type	FilterArea(m2)	Disk number Plate number (a)	Filter Plate Diameter (mm)	Main size(LWH)	Weight (KG)	Installed Power (kw)
BY-45	45	15/12	1920	7300×3200×2580	12000	27.55
BY-60	60	15/12	2060	7440×3260×2885	20100	37.5
BY-80	80	16/12	2100	7600×3260×3060	28000	48.5
BY-120	120	24/12	2100	10000×3260×3060	36000	48.5
BY-150	150	80/12	2100	11800×3260×3060	42000	48.5

SELLING POINTS

• Energy saving and high efficiency, higher processing capacity;

• Automatic control, automatic feeding, automatic cleaning, highly automation, lower labor cost;

• Perfect automatic protection function: with automatic fault alarm system, fault screen display function, high and low liquid level display, and automatic removal or shut down manual processing;

• Firmly and durable structure: more than 10 years service life;

• Higher quality of products and lower cost of transportation;

• Obvious environmental protection effect: reusable, reduction of emissions,

conforming to current trend of clean production and environmental protection;

Boyun’s vacuum disc filters widely use for dewatering of concentrate and tailing in mine industries of non-ferrous metal, precious metal rare metal and minerals, and dehydration of electro slag, leaching slag, slag cement such like gold, silver, copper, iron, aluminum, tin, lead, zinc, nickel, palladium, cobalt, molybdenum, phosphorus, sulfur, silicon, silica, feldspar, electro slag, leaching slag, slag cement dehydration,coal washing, lead oxide, rare earth Zinc Oxide, zinc sulfide, as well as waste acid treatment. It is also using in such industries of chemical,food,power plant,stone,fabrication,construction material,fertilize,pharmaceutical etc.

Lianyungang Boyun Machinery Co., Ltd. is a professional manufacturer of mineral machinery, specialized in the design, research & development, manufacture & sales. We have owned 60 products including feeding, cracked, transportation, ore grinding, classification, flotation, concentration, drilling & magnetic separation. Those are widely used in mines, drilling and engineering construction.

Boyun is located in Donghai County, Lianyungang City. There are 10 engineers & 100 staff members more or less. Boyun pays much attention to product quality, and actively follows ISO9001 standards. We have many advanced performance test equipment and continuously make improvements to our quality assurance system. Quality service is considered as an important part of our product quality, and we honor our commitments we make before and after sales. We take seriously on every machine production so that we make sure it meets demand of our customers. Besides, we also can supply our customers mineral separation program design, mineral separation technological process design and standard & non-standard design. Donghai has beautiful scenery and beaches, convenient transportation that included harbors, an airport, railroads, and highways.

Welcome friends all over the world to visit our factory.

FAQ

Q1:Could you provide OEM service?

Yes, we have strong R&D capacity and technical support to customize the products according to customer’s requirements.

Q2:What about the payment term?

We can accept T/T, Western Union, Paypal.

Q3:Could you provide samples?

Yes.

Q4:Do you provide the technical support?

Yes, we have a experienced technical team to provide the pre-sales and after-sales supporting.

Q5:How does your factory do regarding quality control?

We have professional QC team and test equipments to ensure the quality.

Contact Us

Lianyungang Boyun Machinery Co., Ltd.: Contact nameMatthew Bao; Phone86-518-87802627; Addressdonghai Lianyungang,Jiangsu
