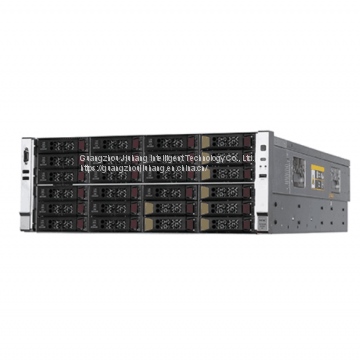

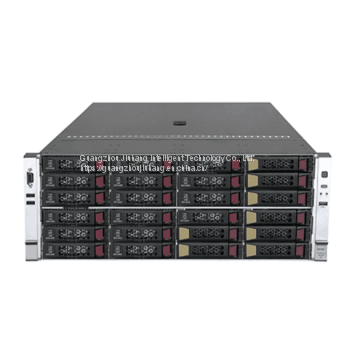

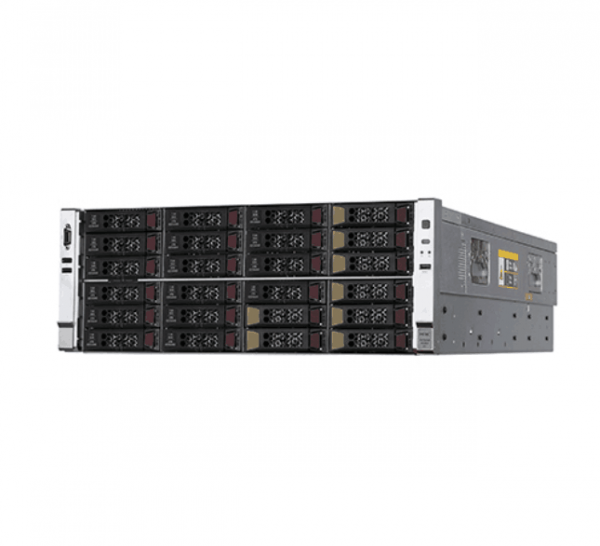

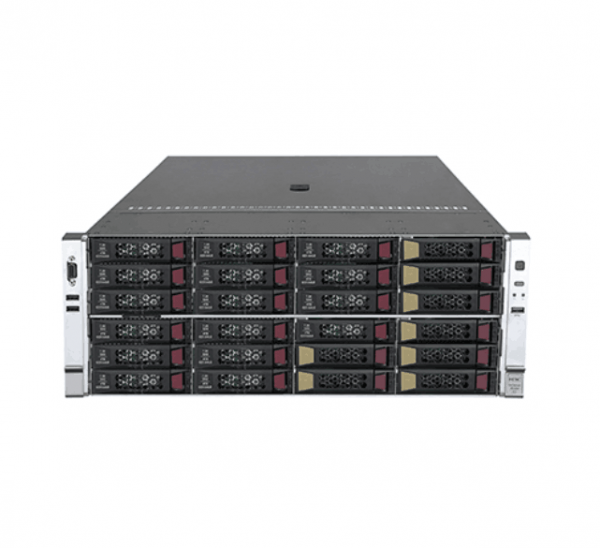

R5300 G3 Server Used Rack Dual Xeon DDR4 RAM Computing Server

GPU computing module

8GPU module

20GPU module

Chassis height

4U

chipset

Intel®C621

processor

Supports 2 Intel® Xeon® scalable processors: Skylake series or Cascade Lake series CPUs with a maximum support power of 205W

GPU

Supports up to 8 dual wide GPUs

Supports up to 20 dual wide GPUs

RAM

Support for 24 DDR4 RDIMMs or LRDIMMs

Support rate DDR4 2400/2666/2933MT/s

Storage controller

Optional high-performance RAID controller, support RAID0/1/10/5/6/50/60

PCIe

4 single-wide PCIe cards, 1 OCP3.0 card and 1 on-board RAID card

4 single-wide PCIe cards, 1 OCP3.0 card and 1 on-board RAID card

Front hard drive expansion

System SAS/SATA/NVMe hard disk configuration:

● 24x 3.5 SAS/SATA/NVMe (16LFF+8NVME or 20LFF+4NVM or 24LFF)

● 12x 3.5 SAS/SATA/NVMe (8LFF+4NVME)

The internet

Support 2×10GE optical port or 2×25GE optical port through OCP3.0 expansion

Fan

Support 8 8056 fans, N+1 hot swap redundant fans

Management software

HDM & FIST

Front I/O

2x USB2.0 is located on the left mounting ear and 1x USB3.0 is located in the right mounting ear

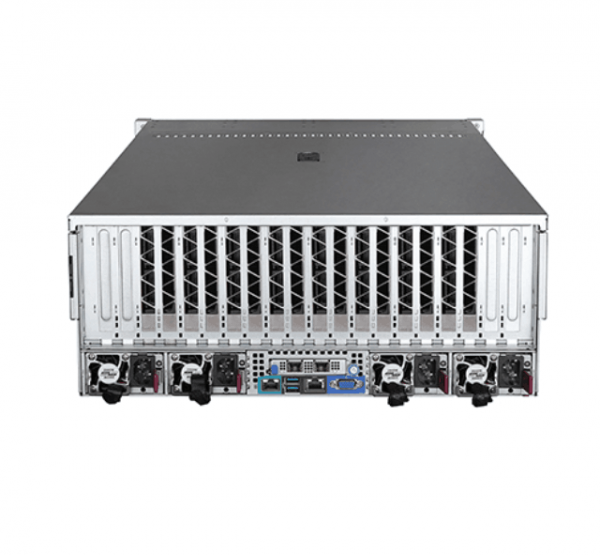

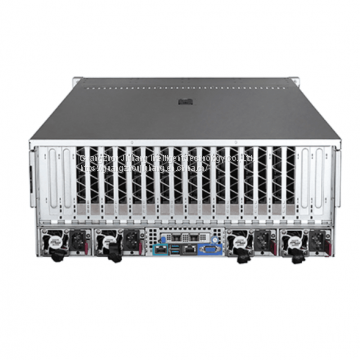

Rear I/O

2x USB3.0+1x VGA+1x serial+1xHDM management network port is located on the rear panel

power supply

Up to 4 2000W Platinum power supplies, supporting N+N redundancy

Operating temperature

Operating environment temperature: 5 ° C ~ 35 ° C

Storage environment temperature: -40 ° C ~ 70 ° C

Working humidity

Working environment relative humidity (non-condensing): 8% to 90%

Storage environment relative humidity (non-condensing): 5% to 95%

Shape / chassis depth

4U standard chassis;

Without safety panel: 174.8mm X 447.0mm X 807mm

With safety panel: 174.8mm X 447.0mm X 829mm

weight

4U standard chassis;

8GPU models are fully equipped (8GPU+24LFF) 65.13kg

16GPU model full (16GPU+24LFF) 57.16kg
