Mirror Aluminum Coil/sheet/strips/rolls/plates Manufacturers/factories/suppliers/wholesalers/distributors

Color coated aluminum coil/Color coated aluminum sheet/Color coated aluminum strip/Color coated corrugated aluminum  manufacturers/factories/suppliers/wholesalers/distributors

colors coated aluminum coil

Basic introduction:

Alloy: 1050 1060 1100 3003 3004 3005 3105 5052 5083 etc

Temper: H12 / H14 / H16 / H18 / H24 etc

Specification: 0.2 - 2.0 mm * 50-1560 mm * C

Brief information:

Color coated aluminum coil/sheet is a kind of product after deep processing of aluminum coil surface, is a special coating for coloring the surface of aluminum sheet and strip because of aluminum bonding.

Coating technique can greatly improve the weather ability and corrosion resistance of aluminum coil/sheet, which increases the decorative properties of aluminum coil/sheet. It is one of the deep processing technology links of aluminum coil/sheet.

Color coated aluminum coil/sheet Application:

Color coated aluminum coil/sheet is mainly used in building decoration materials, household appliances panel, food packaging (cans), transportation and other fields.

1.Building decorative materials: roof slab, ceiling, honeycomb board, insulation board, curtain door, louvers, window, aluminum curtain wallboard

2.Materials for household appliances: lampblack suction machine, refrigerator, air conditioning, refrigerator freezer interior panel, etc.

3.Food packaging: cans top cover, cans pull ring, aerosol spray cover 4.Transportation: box truck shell, inner wall of box truck, vehicle interior.

Color coated aluminum coil/sheet features:

1. Thickness 0.2-4.0 mm, width 10mm-1560 mm.

2. Zero color difference compared to the sprayed product.

3. Ultra-flatness, smoother surface

3. Less pollution, more cleanness

4. Stronger weatherproof ability, corrosion resistance

5. Small film thickness tolerance

6. Ultra low loss, lower processing cost

PV/PVDF coated aluminum sheet difference :

PVDF Coated: PVDF coating mainly refers to a vinylidene fluoride homopolymer or a copolymer of vinylidene fluoride and other small amount of fluorine-containing vinyl monomer. The chemical structure is stable and firm, and the physical properties of the fluorocarbon coating make the PVDF coated aluminum coil better wear resistance, impact resistance, fading resistance, and UV resistance.

PE Coated: The PE coating is formed by repeatedly baking the surface of the aluminum plate to form a solid continuous film which is firmly adhered. It is an anti-UV ultraviolet coating and has decorative properties.

Classification of coated aluminum coil/sheet：

As per types of surface coating of paint, color coated aluminum coils can be divided into polyester (PE) coated aluminum coil, fluorocarbon (PVDF) coating aluminum coil and Epoxy coated aluminum coil.

According to the thickness of the coating, it can be divided into single-coated aluminum coil (4-20 microns); double-coated aluminum coil (25 to 28 micron) and triply-coated aluminum coil (35-38 micron).

Main type of our coated aluminum coil/sheet :

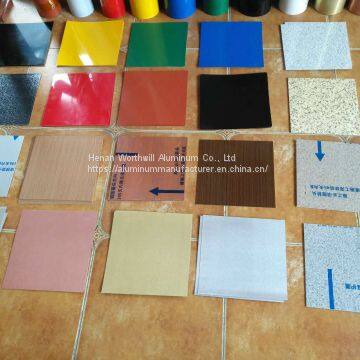

1. pure color coated aluminum coil/sheet

2. Imitation stone color coated aluminum coil/sheet

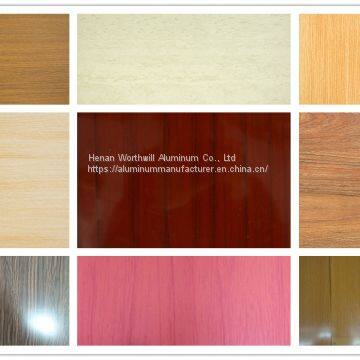

3. Imitation wooden color coated aluminum coil/sheet

4. Brushed color coated aluminum coil/sheet

5. Chameleon color coated aluminum coil/sheet

6. Mirror aluminum coil/sheet
