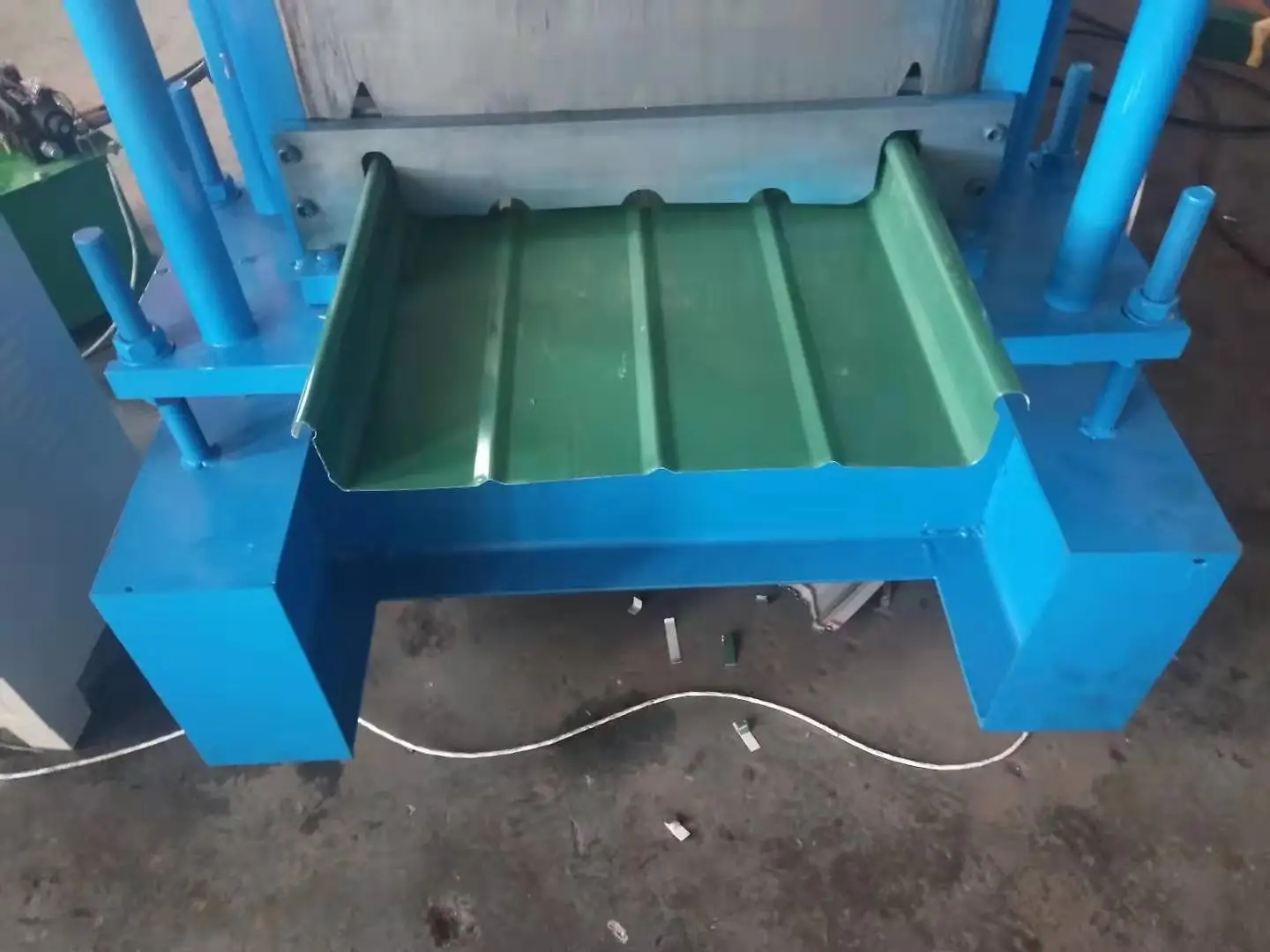

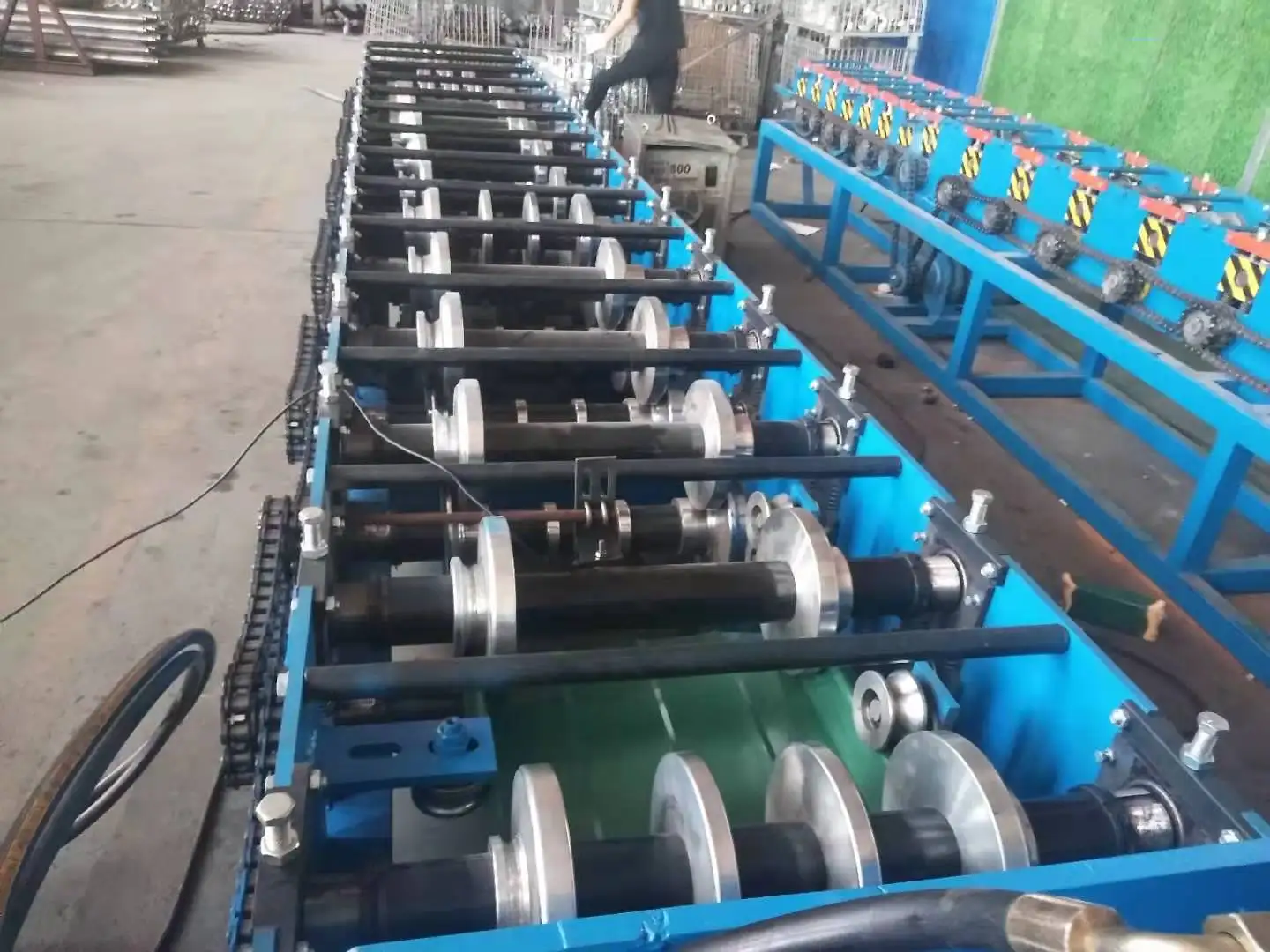

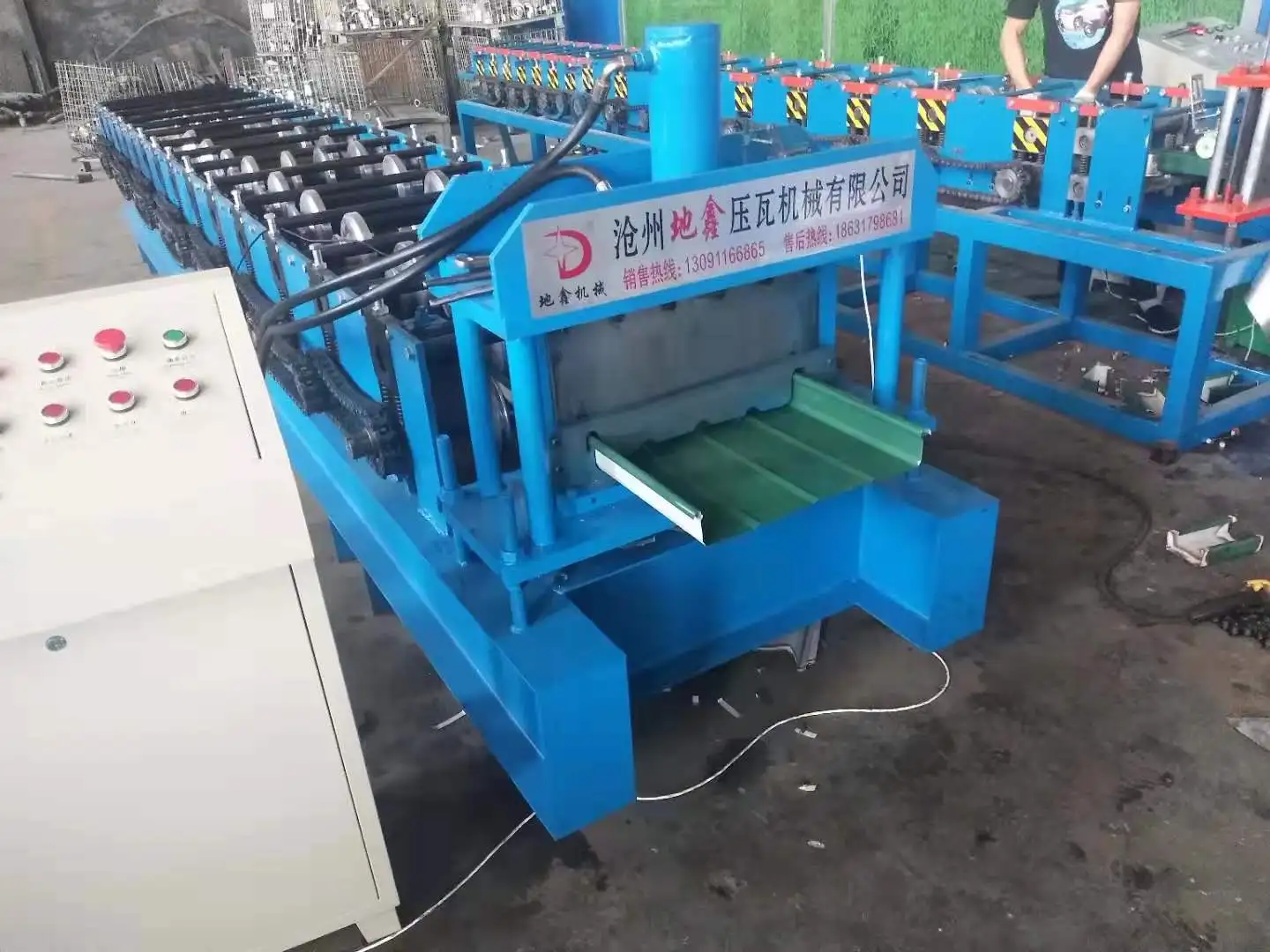

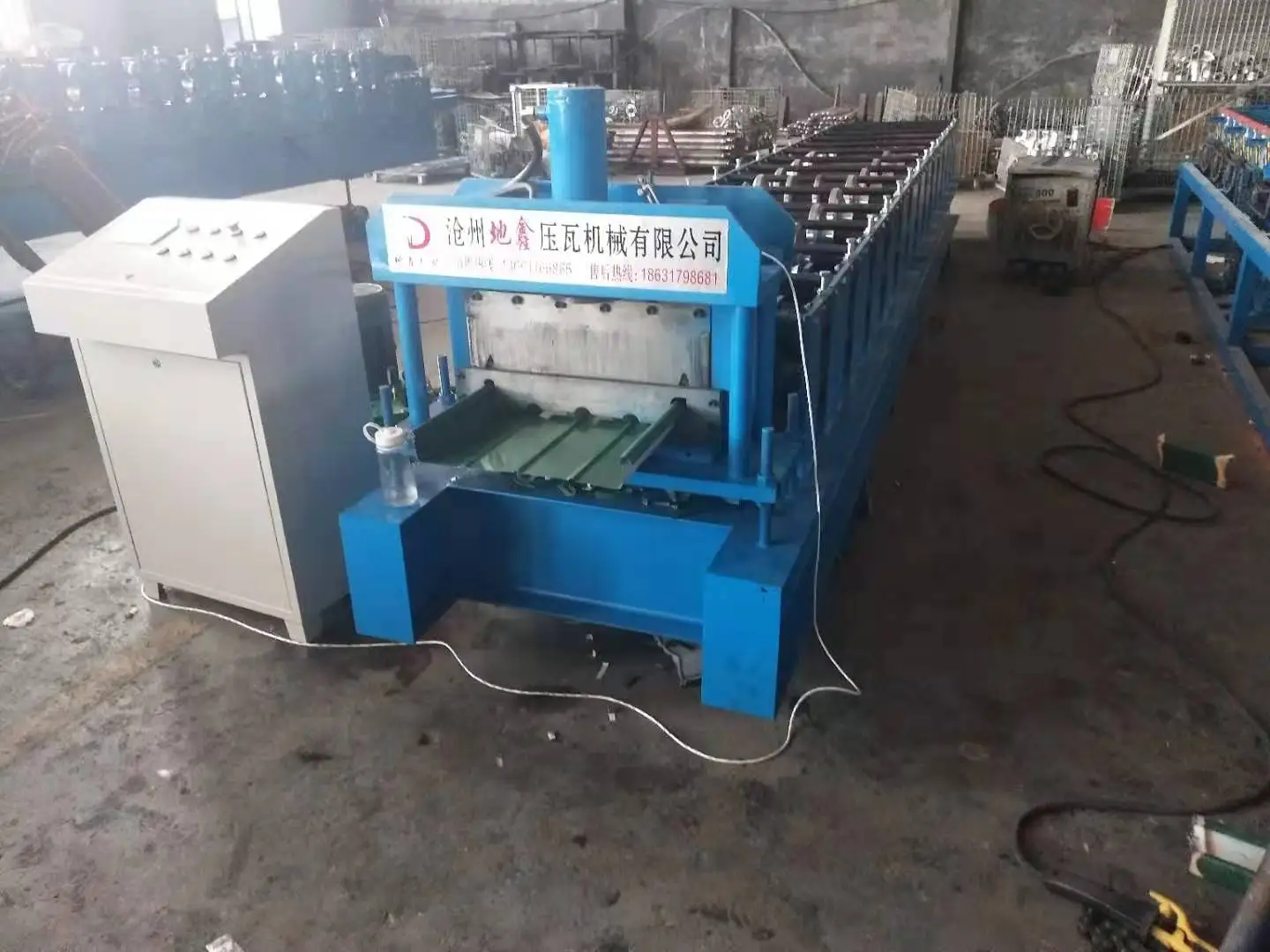

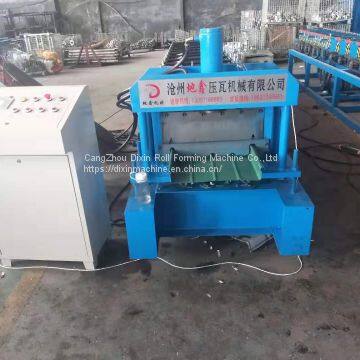

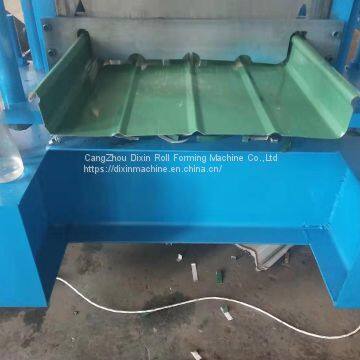

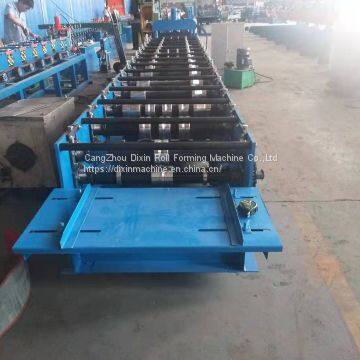

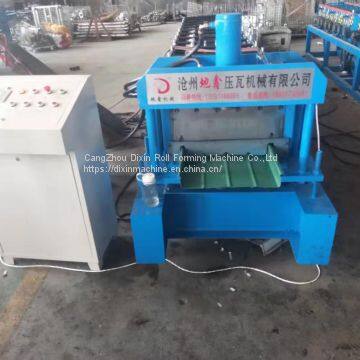

High Quality Jch Standing Seam Steel Structure Metal Sheet making machine
Technical paramter
| 1 | Size | DX5-400/425 |
| (automaticl cutting) | ||
| 2 | Dimension | 5800*1600*1400mm |
| 3 | Weight | 7000KGS |
| 4 | Motor Power | 7.5KW*2 |
| 5 | Voltage | 380V/50HZ/3PH |
| 6 | Forming Steps | 13 steps |
| 7 | Forming Speed | 8-14m/min |
| 8 | Effective Width | 400-425mm |
| 9 | Material of Width | 575mm-603mm |
| 10 | Material of AL-Mg-Mn,Galvanized Sheet | 0.4-0.8mm |
| Thickness | ||
| 11 | Material Thickness | 0.5-0.8mm |

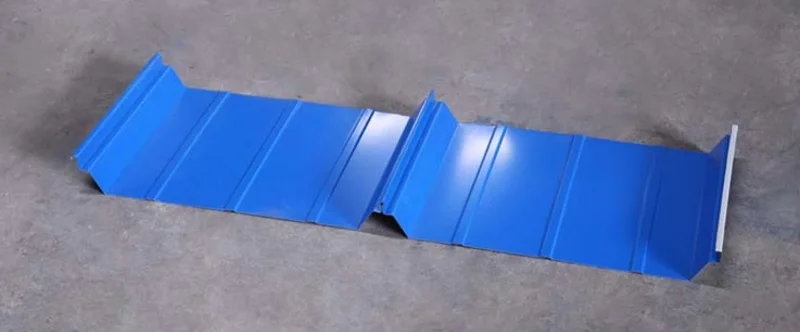

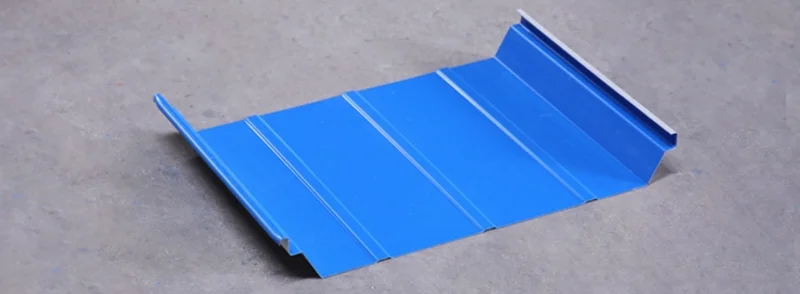

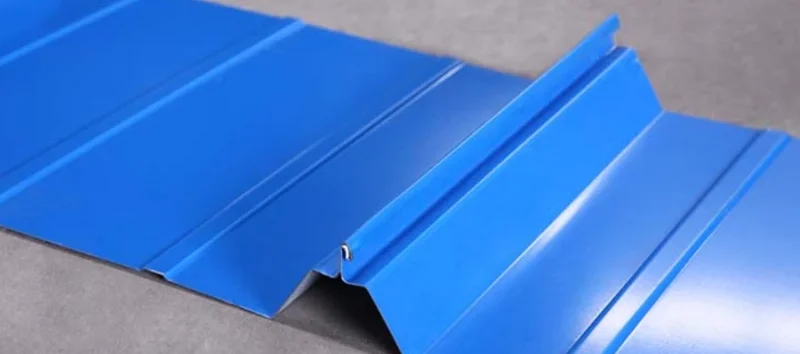

| 12 | Standing Height of Roofing | 25mm |
| 13 | Thickness for common use | 0.6mm, 0.7mm |
| and testing machine | (material: PPGI, GI, Aluminum) |
Working flow
After-sale service of standing seam roof panel roll forming machine
1. The warranty of standing seam roof panel roll forming machine
is one year after the client receives the machine.
Within one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 50 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
