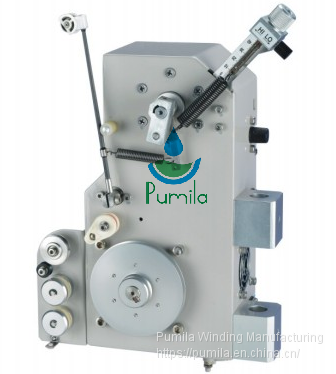

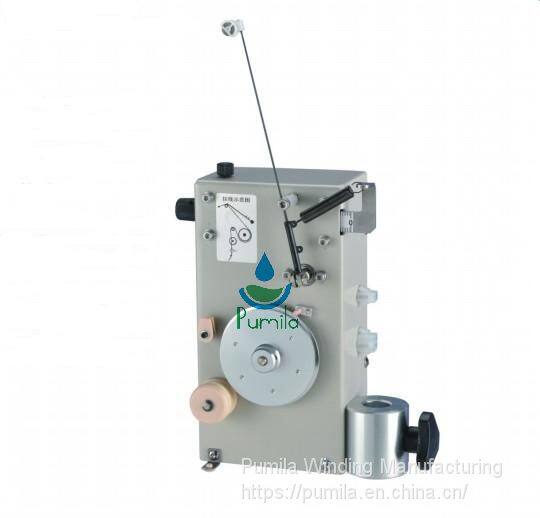

SET-R Coil Winding Tensioner for Coil Winding Machine
US$ 561 - 783
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
Coil Winding Tensioner Servo Wire Tensioner for Fine Copper Wire
-
0.01-0.8mm Fine Wire Coil Winding Tensioner Servo Tensoner
-
Custom Small Magnetic Card Reader Coil Custom Shape Air Coil
-
Customized Inductive Coil Special Shape Air Coil
-
Different Shape and Size Copper Coil Air Coil
-
Air Coil Copper Special Shape Coil Induction Coil
Product Details
| Brand Name | Pumila | Place of Origin | China | |
| Model Number | SET-R |
Product Description
| Model: | SET-R Series |
| Characteristic: | With Motor outside |
| Function: | Can change over two tension forces |
| Power: | DC24V |
| Electric Current: | 1.2A |
| Wire Speeding: | 5m/s |
| Product Size: | 300mm*215mm*115mm |
| Weight: | 5.40KG |
| Model | Applied wire diamiter(mm) | Tension scope(g.f) |
| SET-100-R | φ0.01-φ0.12 | 1g-100 |
| SET-200-R | φ0.02-φ0.17 | 2g-200 |
| SET-300-R | φ0.03-φ0.22 | 5g-300 |
| SET-2000-R | φ0.18-φ0.80 | 200g-2000 |
Product Description:
SET Standard Series Servo tensioner is sent from the traditional passive-line change to take the initiative to send lines from the motor, by replacing the spring tension to change its value, this product comes with tension feedback stabilization system that can automatically tension stable equilibrium. Tension is not speed, wire cover, pulleys, and felt the impact of tension in particular stable and easy to adjust.
The linear speed of standard type is 5m/s, and it can be customized that according to your special requirements.
Any inquiry please contact amber@pumilatech.com
