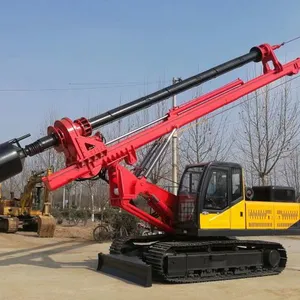

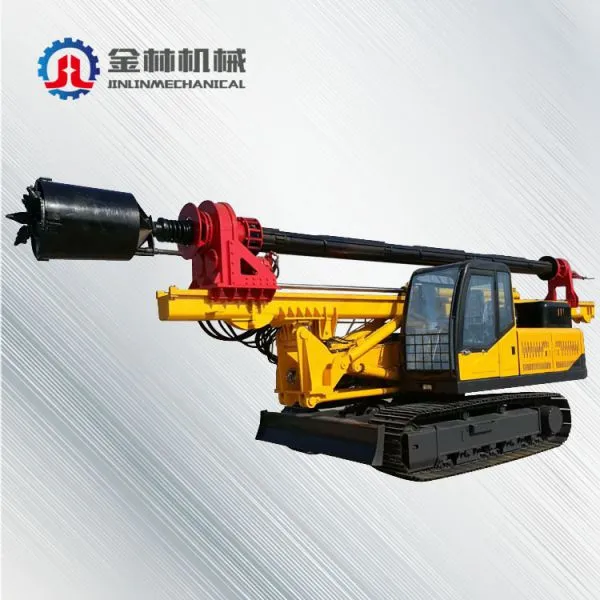

Help Center360 Degree Wheeled Type Shallow Well Drilling Equipment
Related Products
-
Diesel Power New Condition Portable Hydraulic Drilling RigNegotiableMOQ: 1 Set -
Mechanical Mobile Conventional Drilling RigNegotiableMOQ: 1 Set
-
Excellent Quality Kw180 Water Well Drilling EquipmentNegotiableMOQ: 1 Set
-
Rotary Drilling Machine Rock Drill With A CompressorNegotiableMOQ: 1 Set
-
Water Well Drilling Pile Driving MachineNegotiableMOQ: 1 Set
Technical Parameters | ||||||
Parameter, model |
YDR150 |
YDR200 |
YDR260 |
YDR300 |
||
Dimensions |
Working status |
m |
5.9*2.3*10.5 |
7.1*2.6*12 |
8*2.8*11.5 |
8.8*2.8*12.8 |
Transportation status |
m |
8.2*2.3*3.25 |
10*2.6*3.38 |
10*2.8*3.55 |
10.8*30*3.65 |
|
Overall weight |
t |
17 |
22 |
26 |
28 |
|
Maximum drilling diameter |
mm |
1200 |
1400 |
1400 |
1400 |
|
Maximum drilling depth |
m |
15 |
20 |
25 |
30 |
|
engine |
Brand |
Yuchai |
Cummins |
Cummins |
Cummins |
|
model |
4A115Z |
6BT5.9-C150 |
6BTAA5.9-C205 |
6BTAA5.9-C205 |
||
rated power kw/rpm |
89/2400 |
110/2300 |
153/2000 |
153/2000 |
||
Advantages
Advantage:
1)High efficiency and energy-saving hydraulic system.
2)Big torque and full hydraulic driver.
3)180 degree free rotation.
4)Wide application, high construction efficiency and stable performance.
5)Deep pile, fast speed, convenient movement.
6)Low cost of purchase, low transportation cost and fast profit.
Details of product
1.Drills up to 200m deep, 75-500mm diameter , trailer mounted.
2. Hydraulic control, diesel engine. Drill speed: 15m/hour.
3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.
4. Used for Water wells drilling for farm/industry irrigating ,fresh water drinking, or anywhere need fresh water. etc.
5. It is a full set of machine can be used upon arrival.
