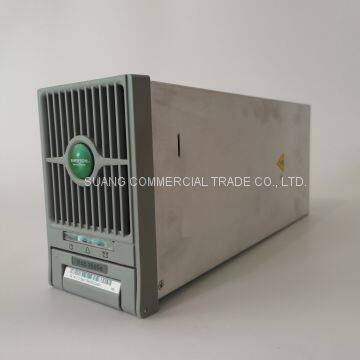

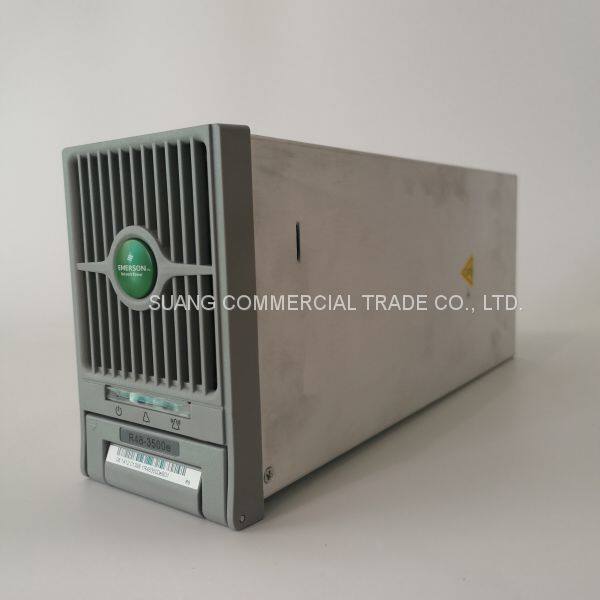

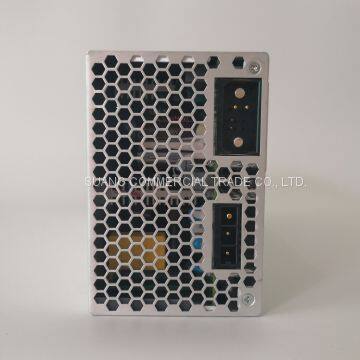

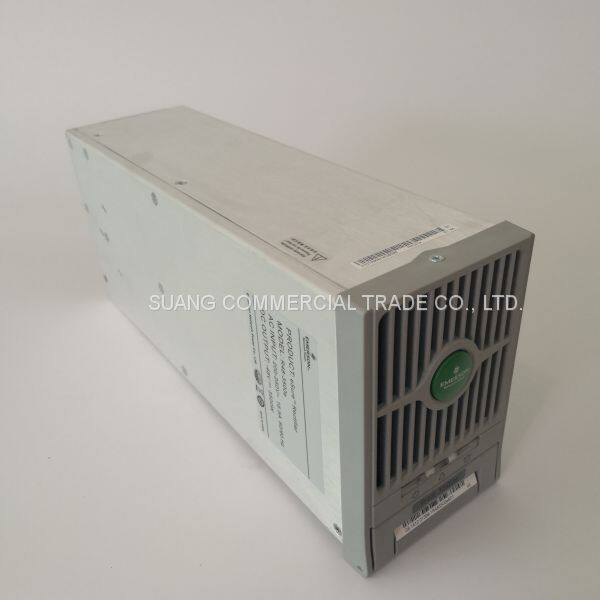

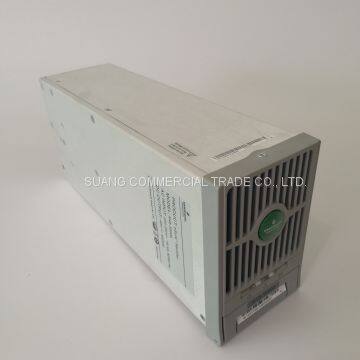

R48-3500e Power Supply Module

1, the efficiency is as high as 93%.

2, power factor 0.998;

3. Input grid frequency: 45 ~ 65Hz;

4. Working temperature range: -40 ~ +65 C;

5, rated output power: 5800W, power density as high as 0.813 W/cm3;

6, safety regulations: EN60950: 1992, UL1950;

7, EMC: EN55022 Class B;

8, hot swap non destructive;

9, rectifier module MTBF>57 hours.

* Emerson's high-efficiency rectifier module R48-3500e adopts non-destructive hot-swapping technology, and its output and input have soft-start units, so the output voltage of the system will not fluctuate when the module is swapped.

* working temperature: -40°C~70°C

* altitude: less than 2000m (2000m with upper power).

* output power: 3500W (input voltage 176Vac~30Vac).

* input voltage range: 85Vac~300Vac (single phase three wire system).

* rated input voltage: 200Vac~250Vac

* maximum static voltage without working time: 415Vac

* input current: <20A @2900W/176Vac

* starting current: <32A

* rated input frequency: 50Hz/60Hz

* output DC voltage range: 42V~58V

* output DC current: 0A~65.5A

* regulation accuracy: less than or equal to 0.5%.

* load adjustment rate: less than or equal to 0.5%

* voltage adjustment rate: less than or equal to 0.1%.

* power factor: greater than or equal to 0.90 (@25%~50% rated output power).

                        More than 0.90 (@50%~100% rated output power)

                        More than 0.99 (@50%~100% rated output power)

* efficiency: greater than or equal to 91%

* over voltage protection: input under voltage protection point 80 + 5Vac input overvoltage protection point 305V + 5Vac

* Output Overvoltage Hardware Protection Point: 58.5-59.5V (Output Overvoltage Software Protection Point 56V-59V can be set by monitoring)

* module current sharing error: less than + 0.9A

* cooling mode: forced air cooling.

* safety standards: UL/EN/IEC 60950-2000

* safety requirements: CE/UL/NEBS

* outline size: 87.9mm (high) X85.3mm (wide) X272mm (deep)

* module weight: ≤4kg

 Lead time:
We have a lot of stock ,If the quantity isn't very big , we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.
Transporting:
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near the port of TianJin.
Our service:
We can offer the sample. If the quality is good, we can offer very very competitive price .And can pack according to customer's requirment.
