W Section Palisade Fence
Material: Low carbon steel pale, galvanized steel pale
Pale: 62mm, 70mm, etc.
Angel rail: 40*40mm,50*50mm
Length: 2750mm
Height: 1.8m-3.0mm
H Post: 55*100mm
Square post: 60*60mm, 80*80mm,100*100mm, etc.
Accessories: fishplate, nuts and bolts.
Surface treatment: Hot dipped galvanized, Powder coated
Packaging: pallets
Certificates: ISO9001, BV,SGS

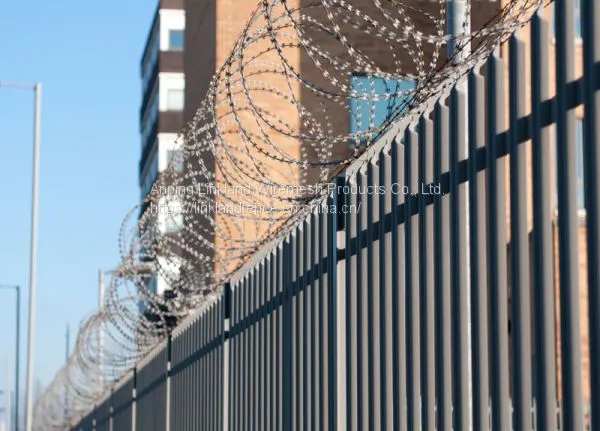

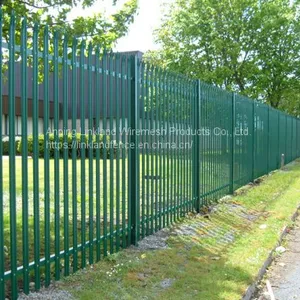

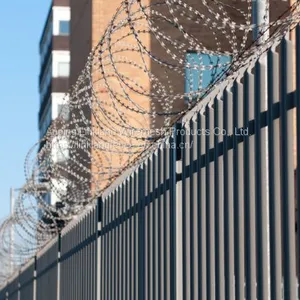

W section palisade fence is a high security fencing, it is very popular in Europe market, Australia market, South Africa market. It is designed to provide a protection against introduction and theft and provides a good alternative to a high wall. It is manufactured using hot-formed and cold-rolled substantial steel sections. Also it has a very neat-looking option,like different pales sections and pale top point, and can be painted easily with your colour of choice to match the environment or buildings.Palisade fence is easily to install and move. Palisade fence is a cost effective way to providing a high level of security to the boundary line of any property.
W section palisade fence Feature:
● Conform to international quality and environment standards are used to create safe and healthy space for your life ;
● Standard height and reliable anti-access spacing ensure your safety ;
● High transparency and aesthetic effect ;
● Personalized optional colors ;
● Superior quality ;
● Unique arc design, soft, elegant and brilliant .
We can custom Palisade Fence
Panel size |
W section Pale:70mm |
Angel Rail |
Post |
|||
Height |
Width |
Pale Thickness |
Qty:Pale |
Square post |
I Post |
|
1.8m |
2.75m |
2/2.5/3mm |
17pcs |
40×40×4mm 50×50×6mm |
60*60mm 80*80mm 100*100mm |
100×55mm |
2.1m |
2.75m |
2/2.5/3mm |
17pcs |
|||
2.4m |
2.75m |
2/2.5/3mm |
17pcs |
|||
3.0m |
2.75m |
2/2.5/3/3.5mm |
17pcs |
|||
W section Pale:62mm |
||||||
1.8m |
2.75m |
1.5/2/2.5mm |
17pcs |
40×40×4mm 50×50×6mm |
60*60mm 80*80mm 100*100mm |
100×55mm |
2.1m |
2.75m |
1.5/2/2.5mm |
17pcs |
|||
2.4m |
2.75m |
1.5/2/2.5mm |
17pcs |
|||
3.0m |
2.75m |
1.5/2/2.5mm |
17pcs |
|||
Surface treatment: Galvanized or galvanized then powder coating finished | ||||||
Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only. | ||||||
Pale use mild steel plate(black or galvanized)
Horizontal rails:Standard 50×50×5mm angle rail
Post use I post(100×55mm)
Fixings:Steel plate:40×8×150mm
Bolts:M8×30,M12×30 anti-vandal steel or stainless steel
Surface:Galvanized or galvanized then powder coating finished
Color: Green, gray, black, blue, etc.
Steel grade can be chose.
Powder from AKZO NOBEL
