Don′t Take The Porcelain Ceramic Pigtail Hook Screw
- shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
Product Details
| Brand Name | Pumila | Place of Origin | China | |
| Model Number | SH-01 |
Product Description

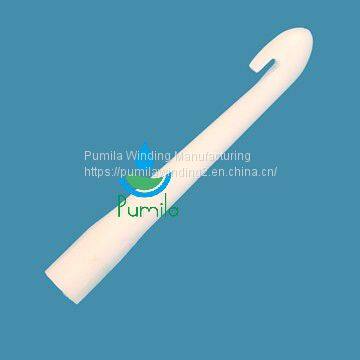

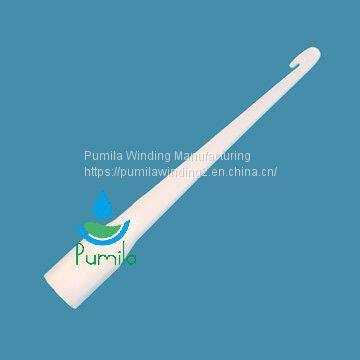

Teflon Toroid Coil Winiding Hook Single/Double Hook (coil winding hook)
Toroid coil winding hook is made from Teflon, Nylon. It is one light And handy, high-strength, resilient tool. It is used for winding toroid coil. Make The wire be wrapped tight with the toroid core. Avoid the magnetic wire of insulation Film be damaged. The single hook there are screw which need connect with the Handle to use(the handle is optional), or used in hook winding machine. The double Hook can be used to wind direct.
Speficication of telfon toroud coil winding hook
| Description | Part No. | Suited wire Dia. | W(mm) | T(mm) | L(mm) | D(mm) |
| Hand held double hook | 21 | ≤ 0.14mm | 0.94 | 0.44 | 130.00 | 7.00 |
| Hand held double hook | 12 | ≤ 0.14mm | 1.00 | 0.50 | 130.00 | 7.00 |
| Hand held double hook | 23 | ≤ 0.14mm | 0.92 | 0.50 | 130.00 | 7.00 |
| Hand held double hook | 24 | ≤ 0.16mm | 0.96 | 0.60 | 130.00 | 7.00 |
| Hand held double hook | 25 | ≤ 0.16mm | 1.04 | 0.70 | 130.00 | 7.00 |
| Hand held double hook | 8 | ≤ 0.16mm | 1.00 | 0.68 | 130.00 | 7.00 |
| Hand held double hook | 22 | ≤ 0.16mm | 1.10 | 0.64 | 130.00 | 7.00 |
| Hand held double hook | 7 | ≤ 0.16mm | 1.20 | 0.86 | 130.00 | 7.00 |
| Hand held double hook | 11 | ≤ 0.2mm | 1.48 | 0.84 | 130.00 | 7.00 |
| Hand held double hook | 26 | ≤ 0.3mm | 1.29 | 0.76 | 130.00 | 7.00 |
| Hand held double hook | 6 | ≤ 0.4mm | 1.85 | 1.34 | 130.00 | 7.00 |
| Hand held double hook | 29 | ≤ 0.4mm | 2.10 | 1.37 | 130.00 | 7.00 |
| Hand held double hook | 27 | ≤ 0.45mm | 2.60 | 1.40 | 130.00 | 7.00 |
| Hand held double hook | 28 | ≤ 0.45mm | 2.22 | 1.34 | 200.00 | 7.00 |
| Hand held double hook | 5 | ≤ 0.5mm | 2.90 | 1.74 | 130.00 | 7.00 |
| Hand held double hook | 14 | ≤ 0.7mm | 3.21 | 1.84 | 200.00 | 7.00 |
| Hand held double hook | L14 | ≤ 0.7mm | 3.20 | 1.84 | 220.00 | 7.00 |
| Hand held double hook | 18 | ≤ 0.7mm | 3.1 | 1.6 | 200.00 | 7.00 |
| Hand held double hook | 9 | ≤ 0.8mm | 3.75 | 2.00 | 247.00 | 7.00 |
| Hand held double hook | 16 | ≤ 0.8mm | 3.78 | 2.34 | 215.00 | 7.00 |
| Hand held double hook | L16 | ≤ 0.8mm | 3.78 | 2.34 | 230.00 | 7.00 |
| Hand held double hook | 15 | ≤ 1.0mm | 4.66 | 3.24 | 200.00 | 7.00 |
| Hand held double hook | L15 | ≤ 1.1mm | 4.70 | 3.10 | 220.00 | 7.00 |
| Hand held double hook | 10 | ≤ 1.1mm | 5.80 | 3.20 | 247.00 | 7.00 |
| Hand held double hook | 17 | ≤ 1.3mm | 5.80 | 3.90 | 225.00 | 7.00 |
| Hand held double hook | L17 | ≤ 1.3mm | 5.80 | 3.90 | 250.00 | 7.00 |
| Hand held double hook | 3 | ≤ 1.7mm | 7.00 | 4.80 | 240.00 | 11.62 |
| Hand held double hook | 4 | ≤ 2.0mm | 10.00 | 7.00 | 240.00 | 10.0 |
| Single hook Specification | ||||||
| Part No. | W | T | H | L | D | Suited wire Dia |
| 14# | 3.21 | 1.84 | 0.85 | 51 | 7 | ≤0.7 |
| 9# | 3.75 | 2 | 0.8 | 51 | 7 | ≤0.8 |
| 16# | 3.78 | 2.34 | 0.9 | 51 | 7 | ≤0.8 |
| 15# | 4.66 | 3.24 | 1 | 51 | 7 | ≤1.0 |
| L15# | 4.7 | 3.1 | 1.1 | 51 | 7 | ≤1.1 |
| 10# | 5.8 | 3.2 | 1.5 | 51 | 7 | ≤1.1 |
| 17# | 5.8 | 3.9 | 1.55 | 51 | 7 | ≤1.3 |
| 13# | 6.6 | 6.2 | 3.1 | 51 | 10 | ≤1.5 |
| 3# | 7 | 4.8 | 2.1 | 51 | 11.62 | ≤1.7 |
| 4# | 10 | 7 | 2.6 | 51 | 10 | ≤2.0 |
| 1# | 10 | 8 | 4.5 | 48.5 | 40 | ≤2.5 |
