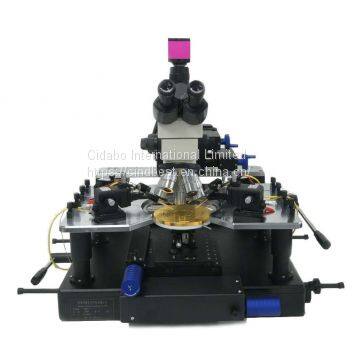

CINDBEST probe station,CINDBEST CL-6

Diameter

4"/6"/8"

Rotation angle

360-Degree rotation, fine-tuning 15 degrees, accuracy 0.1 degrees, with angle locking device

X-Y travel range

4"*4"/6*6"

Moving precision

10μm/1μm

Z Travel Range

10mm

Sample fixde mode

Vacuum adsorption

U Shape

6 Micropositioners available

Electrical design

Electrical Floating with Banana plug adapter, can be used as a backside electrode

Dimension

400mmL*400mmW*600mmH/580mmL*480mmW*600mmH

Weight (about)

40KG/60KG

Magnification

16X-200X/20X-4000X

Moving range

X-Y axle stroke 2"*2",Z axle storke 50.8mm

illuminant

External LED non-polar adjustable brightness ring light source/Coaxial light source

CCD Pixel

200W Pixel / 500W Pixel / 1200W Pixel

Adsorption mode

magnetic adsorption/ vacuum adsorption

Mechanical resolution

10um / 2um / 0.7um/0.5um

Current leakage accuracy

10pA / 100fA (with Shielding Box）

Cable connectors

BNC/Banana head / Crocodile clip /  Coaxial / Triaxial

Point Radius(in microns)

0.2um/1um/2um/5um/10um/20um

 Needle tip material

Tungsten steel/beryllium copper

Shielding box

Display screen

Gold plated Chuck

Special Adapter

Vibration Free Table

RF Testing accessoriess

Light intensity / wavelength testing

High Pressure Test Accessories

Microscope fast tilt device

Laser system

Probe card clamp
