Home > Products > sectional steel profile > C purlin C section steel profile

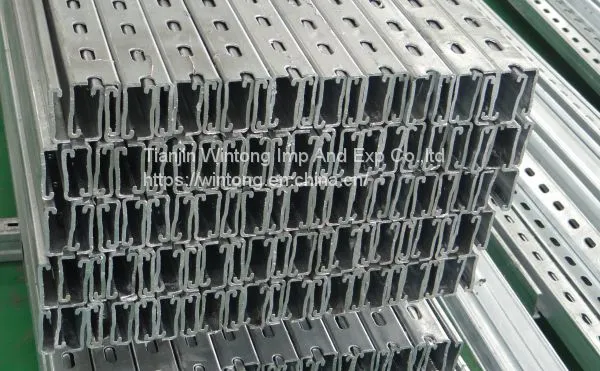

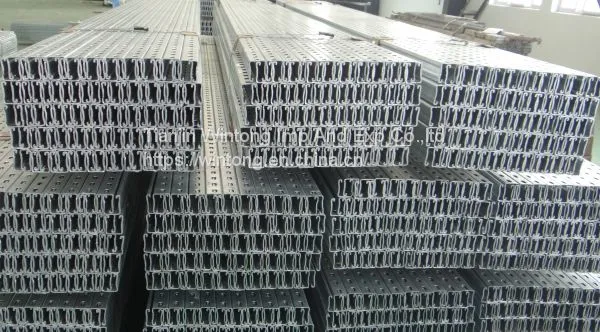

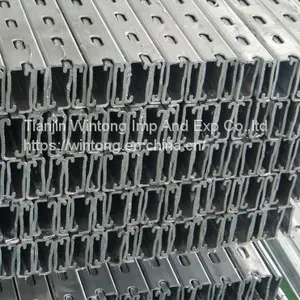

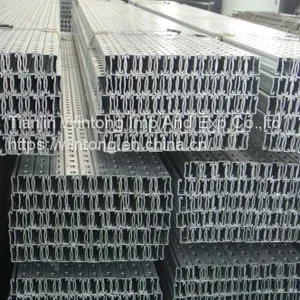

C purlin C section steel profile
- 1000 Ton / Tons per Month
- tianjin
- T/T L/C
You May Like
-
Cable protection pipe/ HDG cable protection profile/cable steel profile
-
Steel connector for greenhouse ,pipe connector ,greenhouse fittings,greenhouse accessories
-
GALVANIZED OMEGA STEEL GALVANIZED OMEGA SHAPE
-
W steel profile Pre-galvanized W steel profile special shaped steel profile W section steel channel
-
Louvers steel profile 104*0.5*5800 104*0.65*5800
-
ZZ steel profile Z STEEL profile 74*1.0*5800
Product Details
| Brand Name | wintong | Place of Origin | China | |
| Model Number | 2 | Shape | Other, sigema | |
| Application | construction | Standard | AISI, GB | |
| Grade | 1 | Dimensions | according to the drawing | |
| Perforated Or Not | Not Perforated |
Product Description
C section steel ,C purlin C channel steel | |||
Height (mm) | Thickness (mm) | Small Lip a (mm) | Lip b (mm) |
40-450 | 1.2-5 | 15-35 | 30-120 |
Material :carbon steel | |||
Surface treatment: HDG; Pre-gavlanized ; cold galvanized | |||
Remark: other specification upon request: according to the customer drawing for the production | |||
Z section steel ,Z purlin
Z section steel ,Z purlin | |||
Height (mm) | Thickness (mm) | Small Lip (mm) | Lip (mm) |
40-450 | 0.7-6 | 5-30 | 20-120 |
Material :carbon steel | |||
Surface treatment: HDG; Pre-gavlanized ; cold galvanized | |||
Remark: other specification upon request: according to the customer drawing for the production | |||
DECRIPTION | THICKNESS(mm) | Size(mm) | length |
ZZ STEEL PROFILE | 0.65,0.6,0.7,1.0,1.15 | 74*32*11*0.65 etc | 5700,5800 etc |
S STEEL PROFILE(> Louvers) | 0.5,0.55,0.6,0.65 | 17*104*0.6 etc | 5700,5800 etc |
BOTTLE STEEL PROFILE | 1.2 | 35*93*4.4*1.2 | 5700,5800 etc |
ANGLE STEEL PROFILE ( L Steel profile) | 0.6,0.7,0.9,1.4 | 20*20*0.6 etc | 5700,5800 etc |
SMALL U STEEL PROFILE | 0.5,0.6 | 12*12*0.7 etc | 5700,5800 etc |
Tolerance:±0.03mm, width:±2mm, height: ±3mm, length:±10mm | |||
Material: Q235 BLACK | |||
