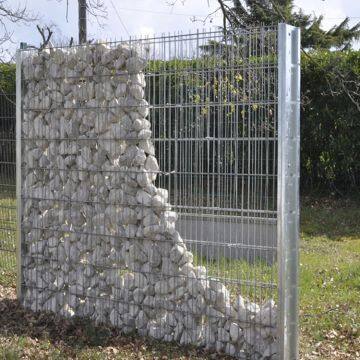

Architectural Welded Mesh Gabions / Galvanized Welded Gabions for Landscape

Architectural welded mesh gabions / galvanized welded gabions for landscape

Product Description:

Welded gabions is a great choice for both home and landscape design. Made from rust-proof and weather-proof galvanised steel, the gabion is very stable and durable for years of service. The mesh grid is formed by welding transverse and longitudinal wires at each and every intersection. With the wire diameter of 3.0-6.0 mm, hole size are from 50*50-150*150mm, special size and details also can be customized.

Corrosion Protection

Triple Life Coated (95% zinc 5% Aluminium)

PVC – Zinc Coated

Stainless Steel

How to install welded gabion box:

After checking you have all the components, open out the mesh panels.

Lift the side panels into vertical position and join by feeding the correct length of helical formed spiral into the corner, using a rotating action, until the helical is fully engaged.

When the helical is fully engaged, the formed end should lock in place.

All panel joints (vertical joints) are formed by assembling to the adjacent panel. Each joint is retained with one helical.

Repeat the filling and stiffener wire installation until the gabion is full and then close the lid by joining with the correct helical while ensuring the top mesh bears down on the rock fill.

Welded mesh stone cage benefits:

Economical

Durable

Modular

Anti-corrosive

Easy installation

Not need maintenance

Applications of welded gabion box:

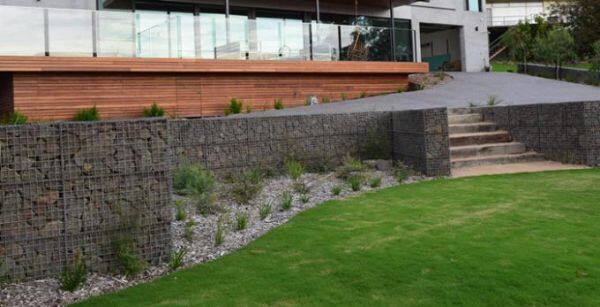

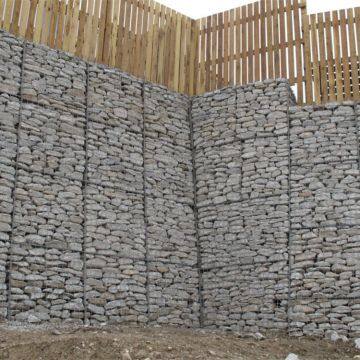

Gabions made of welded wire fabrics offer much strength compared with woven wire gabions while they have similar flexibility, Welded gabions can be connected with other similar containers and filled with stone to form flexible and permeable structures for retaining of riverbank and soils,Gabions are also used extensively as architectural cladding to buildings.

If any question about welded mesh gabions, pls contact us: michael(at)
