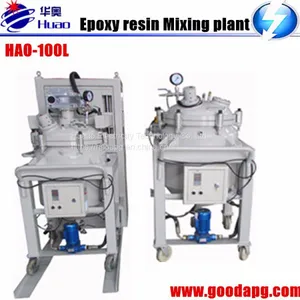

Epoxy Resin Thin Film Degassing Vacuum Mixing and Injection Device thumbnail-1
Epoxy Resin Thin Film Degassing Vacuum Mixing and Injection Device photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HUAAO
Place of Origin:
China
Model Number:
HAO-100L
Contact Supplier Request Quote Chat Now
Huaao Electricity Technology Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
55 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUAAO
Place of Origin China
Model Number HAO-100L
After-sales Service Provided Engineers available to service machinery overseas
Condition New

HAO-100L

Thin film-degassing vacuum mixing and injection device

1.Electronic vacuum guage more precision

2.Triple safety design

3.Oil cycling heating surround pot,heated evenly

4.Thin film de-gassing,excellent vacuumize

5.Adopt frequency motor to control mixing speed,quick degassing,uniform mixing

6.Compact structure,less space,flexible use

7.The temperature control system has functions of temperature display,automatic temperature limiting,safety protection and so on

8.Use stirring and injection vehicle directly,it is convenient to use

Machine Technical Parameters

mixing power                   3kw

mixing speed                   20-70r/min

capacity of pot                100L

pot size                       1100mm*1000mm*1800mm

vacuum pump power              1.1KW

hydraulic power pack power     0.75KW

vacuum degree                  0.5mBar

injection pressure             0.5Mpa

dimension of pot               2100mm*870mm*2100mm

weight of pot                  900KG
