Pneumatic Folding Mast Inside Cable 6m Extension Pole for Cars
- Xingang
- T/T Credit Card
You May Like
Product Details
| Brand Name | Talents pneumatic folding mast | Place of Origin | Tianjin, China | |
| Model Number | 11TAL-M6-2-50 |
Product Description

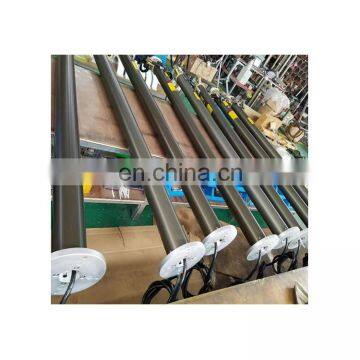

Pneumatic folding mast inside cable 6m extension pole for cars
pneumatic folding mast inside cable 6m extension pole
1.Basic specifications
| Product name | pneumatic folding mast inside cable 6m extension pole for cars |
| Material | 6063 aluminum alloy |
| Closed length | 2.0 m (Bottom base included) |
| Extended length | 6.0 m (Bottom base included) |
| Max.payload | 50kgs |
| Lifting method | pneumatic lifting |
| OD | 66-82-98-118mm |
| Thickness | 3-3.5-4-4mm |
| Color | light brown |
Surface treatment | Phosphoric acid anodizing |
| Section | 4 |
Wind load | 100 km/h |
| Max Working pressure of air compressor | 0.25MPA |
Working temperature | -15--+60℃ |
Inside cable | 1pc CAT5 for camera+2pcs AWG14 for light+2pcs RG59 for VHF antenna |
Lifting time | about 3 mins |
| Air compressor | Power:DC12V 45A pressure:30PSI output volume : about 160L/min |
2.Detailed information of Main pole in 4 sections:
Section No. OD Thickness
1#: 66mm 3.0mm
2#: 82mm 3.5mm
3#: 98mm 3.5mm
4#: 118mm 4.0mm
3. Detailed information of cable
about RG59 cable----75Ohm for camera and CCTV system, Coaxial cable
Outer covering:TPU hardness:95A working temp. of cable: -35 to 85℃
4.Accessories
No | Items | Qty | Total |
1 | 6m Main pole | 1 set | 1 set |
2 | 5m Pu air tube | 1 piece | 1piece |
3 | Car clamp | 1 piece | 1piece |
4 | 12V air compressor | 1 piece | 1 piece |
5 | Top plate | 1 unit | 1 unit |
6 | Guy wire | 6 pieces | 6 pieces |
7 | cable | 1pc CAT5+2pcs AWG14 +2pcs RG59 | 5pcs |
5.Accessories photos
One unit of pneumatic folding mast to be wrapped with Poly tapes then two or one sets packed into a carton, carton inner covered by hard foam
pneumatic folding mast inside cable 6m extension pole for cars
Installation
A. Fixed mode: achieved by tripod; vehicle mode: fixed by car clamps
B. The telescopic mast should be mounted on a flat and solid foundation. If the mast is tilted or tilted for a long time, its speed will be affected and it will cause damage to the mast itself.
C. The top load of mast should not exceed its conventional bearing so as not to tilt or damage the mast
D. Telescopic mast above 10m or less than 10m (including 10m) carrying more than 5kg must be fitted with pulling cords.
E. And the mast need be fitted with pulling cords when the wind speed exceeds 14m/s.
F. Method for erecting a mast with pulling cord (take a three layer pulling cord mounted on the ground as an example):
a. The telescopic mast should be vertically fixed on the horizontal base.
b. The position selection of ground anchors. The distance between ground anchor and the bottom center of mast is greater than 2/3 of the height of the mast, and nails shall be driven into ground every 120 degrees.
