Professional Hanging Light Mast With Hand Winch

FOB Price

US$ 2,165.28 - 2,391.2 / Set

1 Set(Min. Order)

Port Shanghai port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents,aluminum alloy telecom military manual telescopic mast		Place of Origin	Tianjin, China
Model Number	TAL-M20-2.95-10-A

Product Description

Manual telescopic mast

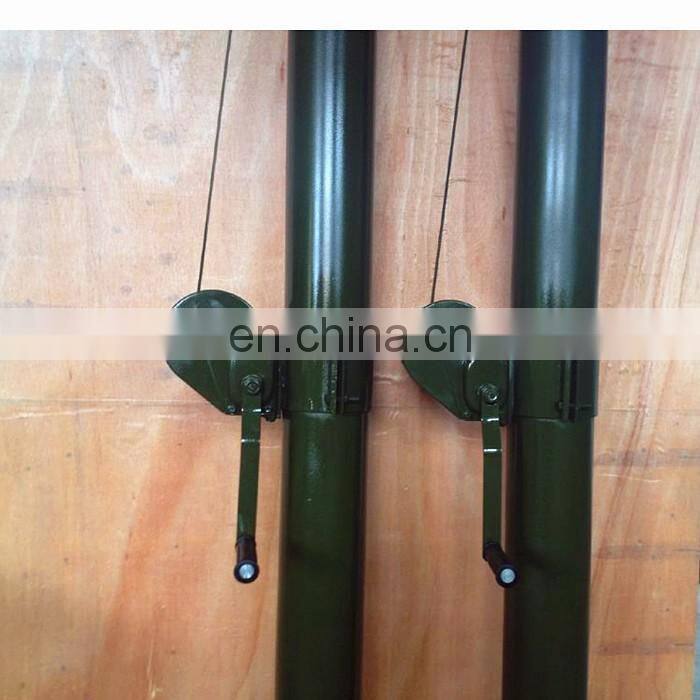

* handle lifting bar for lifting control. ( with winch system)

* Provide convenient installation and use for communications, security, lighting...
* Portable, retractable, widely application

* Accept customerized request

* Specification range: extended height from 1m to 35m. max head-load from 5kg to 200kg...

* Based on different mount place, different accessories will be provided.

Specification

Specification Professional hanging light mast with hand winch
Model No.	TAL-M20-2.95-10-A
Extended height	20.0m
Retracted height	2.95m
Max head-load	10kg
Mast self weight( without tripod)	around 90kg
Mast sections No.	9sections
Section No.& tube OD*Wall thickness	1#130/5mm 2#105/2.5mm 3# 90/2.0mm 4# 80/2.0mm 5# 70/2.0mm 6# 60/2.0mm 7# 50/2.0mm 8# 40/2.0mm 9# 30/2.0mm

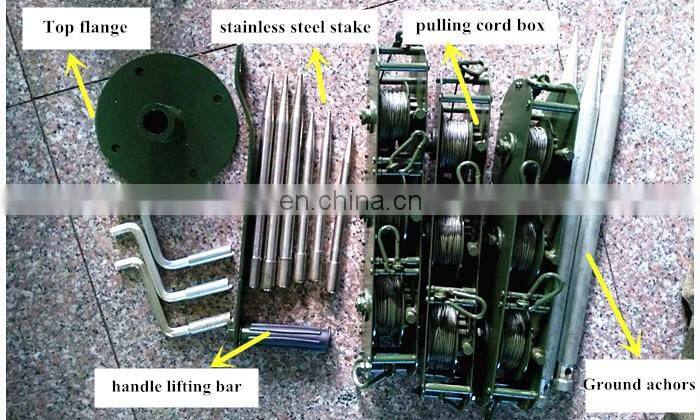

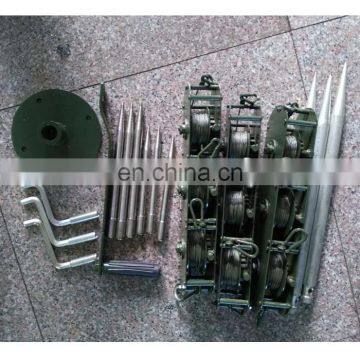

Acessories
Mount model	Ground fixed type---without tripod
Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs stainless steel stakes------------------------------------3pc Ground anchors-------------------------------------------3pcs tripod-----------------------------------------------------------1pc

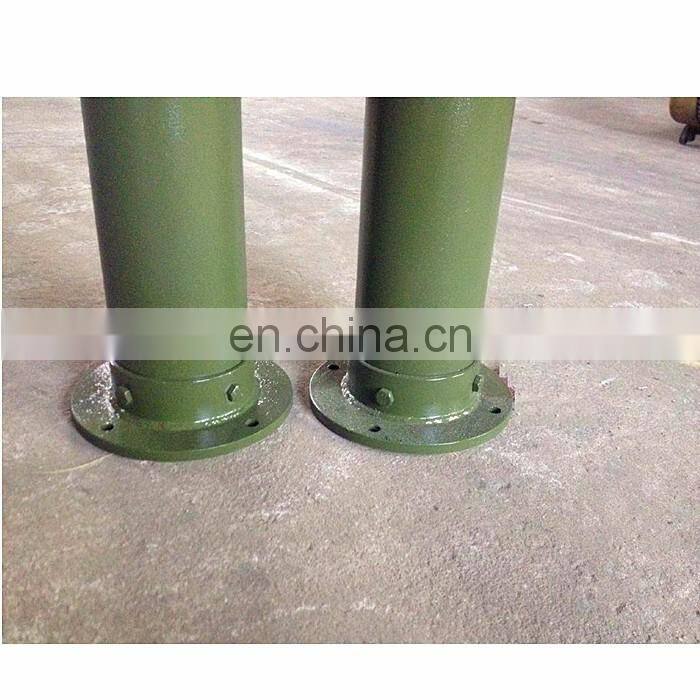

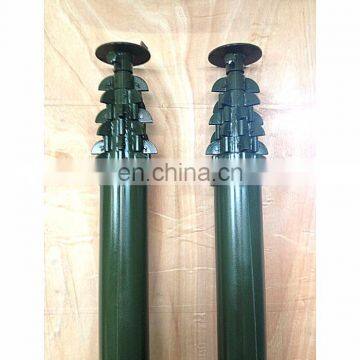

Detailed Images

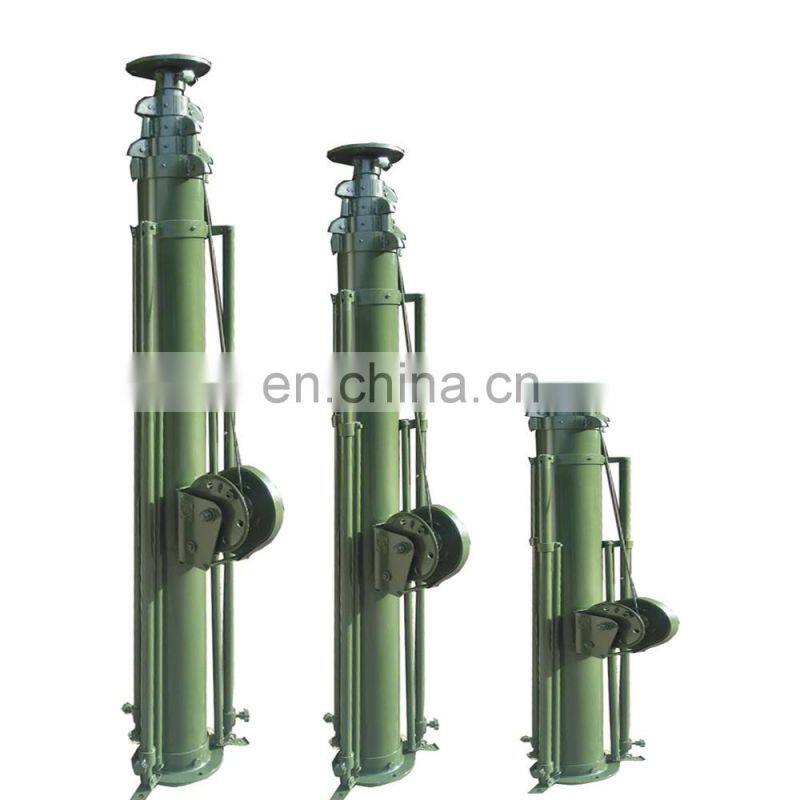

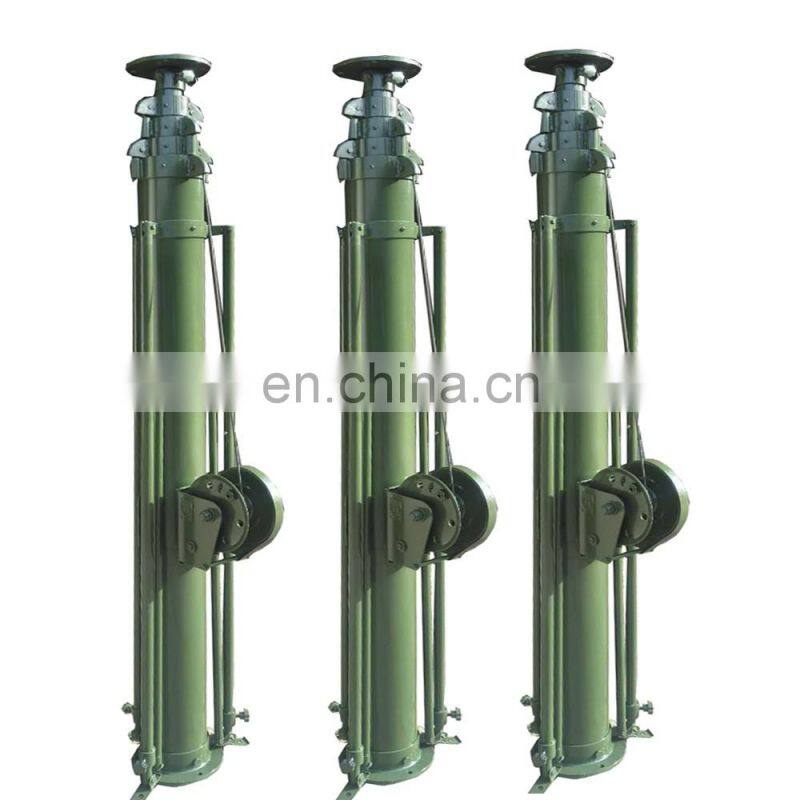

Professional hanging light mast with hand winch

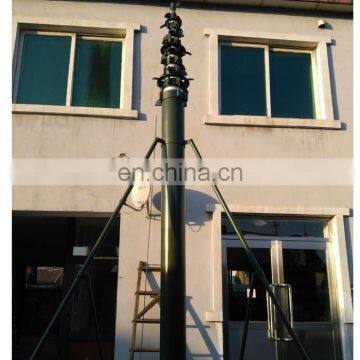

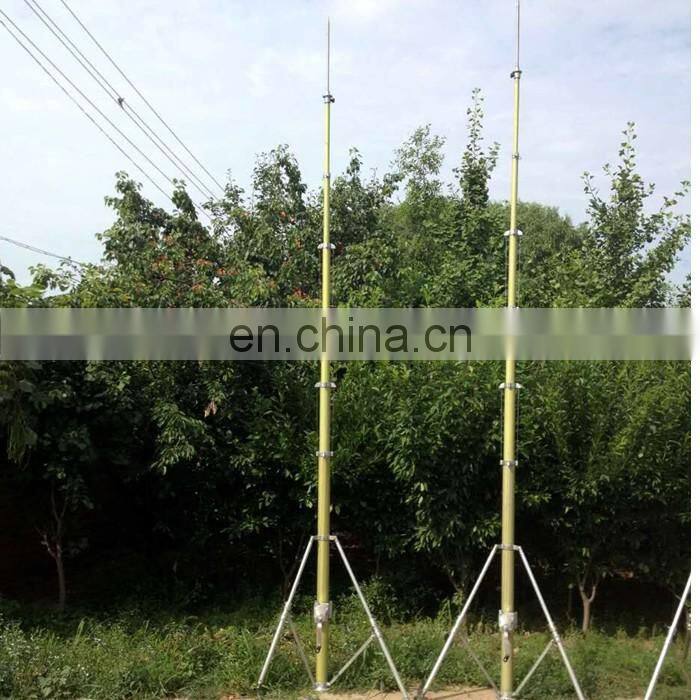

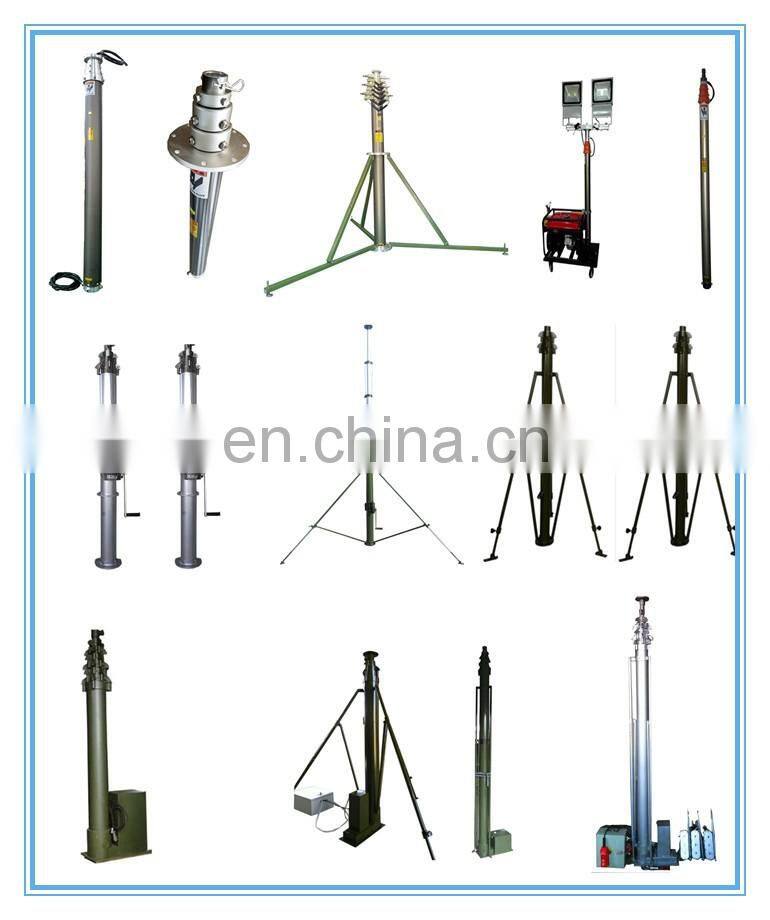

Application pictures

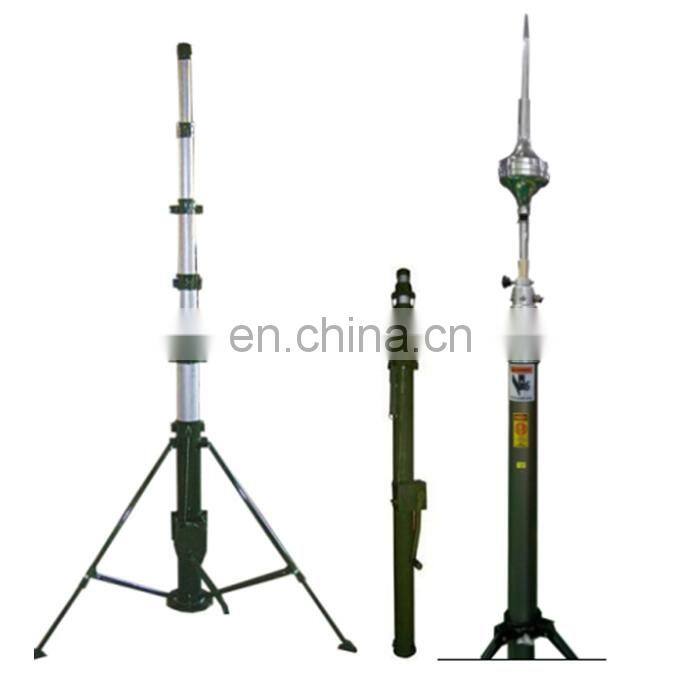

antenna mast

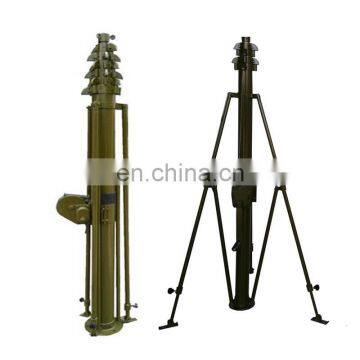

camera/lightning tripod

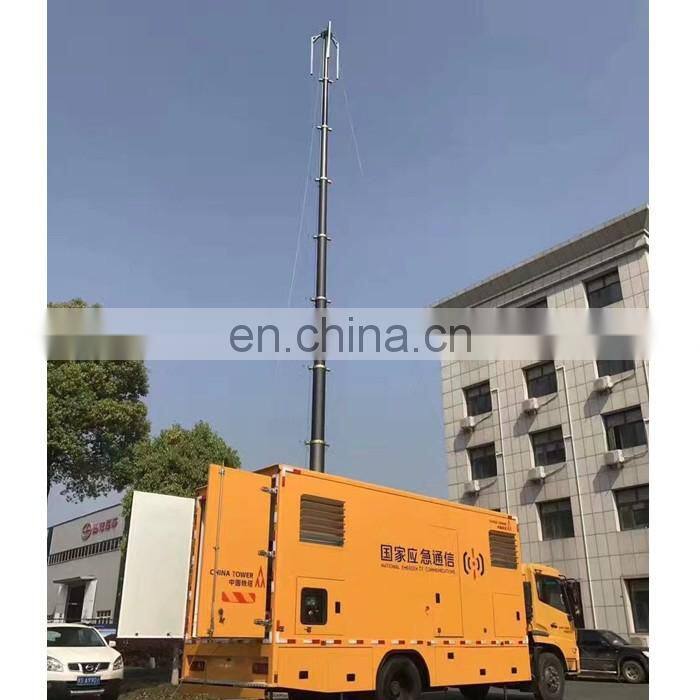

Vehicle mounted mast

Packing & Delivery

Professional hanging light mast with hand winch

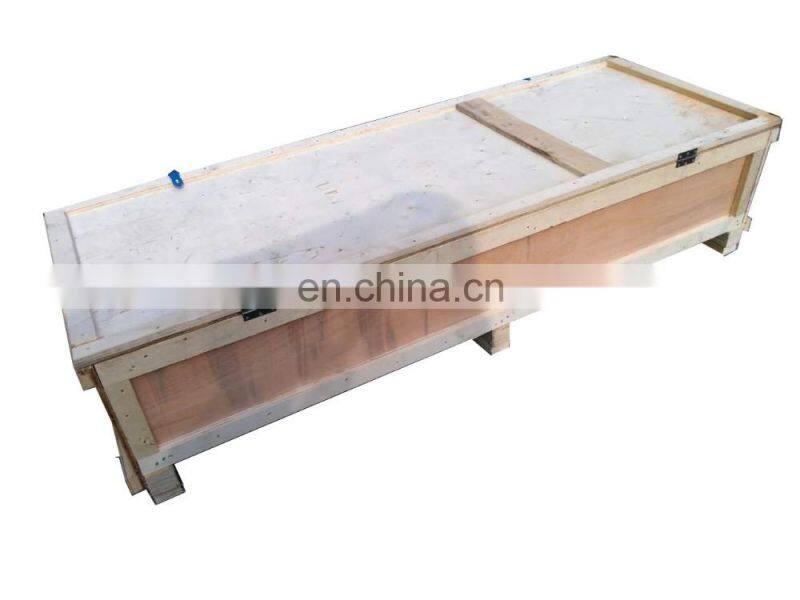

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 95kg

Measurement:245*45*50cm

if special request on the packge, we can do it for you.

Our Service

Pre-sale

Reply within 24 hours by e-mail/whatsapp/Wechat/Skype.

Profession advice and design based on customers request.

After-sales

One year warranty for the conditions except the damage caused by Artificial operation, extreme weather conditions.

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube OD(mm)	Head-load (KG)
TAL-M3-1-20	3	3	1.0	70-90	20
TAL-M4-1.5-30	4	3	1.5	50-80	30
TAL-M5-1.65-10	5	4	1.65	50-80	10
TAL-M5-1.2-15	5	5	1.2	40-90	15
TAL-M5-1.2-10	5	6	1.2	40-90	10
TAL-M5-1.7-100	5	6	1.7	60-130	100
TAL-M6-1.7-10	6	5	1.7	50-90	10
TAL-M6-1.5-100	6	6	1.5	60-130	100
TAL-M6-1.3-60	6	7	1.3	40-130	60
TAL-M7-1.8-30	7	7	1.8	40-105	30
TAL-M8-1.8-10	8	6	1.8	40-90	10
TAL-M8-1.5-20	8	8	1.5	40-130	20
TAL-M9-1.8-30	9	7	1.8	40-105	30
TAL-M9-1.8-100	9	7	1.8	60-160	100
TAL-M9-1.9-5	9	7	1.9	30-90	5
TAL-M10-1.95-10	10	7	1.95	30-90	10
TAL-M10-2-40	10	7	2	30-105	40
TAL-M12-2.1-15	12	7	2.1	30-90	15
TAL-M12-2-40	12	8	2.2	40-130	40
TAL-M15-2.45-10	15	8	2.45	30-105	10
TAL-M15-2.6-35	15	9	2.6	30-130	35
TAL-M15-2.5-200	15	7	2.5	70-200	70
TAL-M16-2.6-10	16	8	2.6	30-105	10
TAL-M18-2.7-10	18	9	2.7	30-130	10
TAL-M18-3.2-30	18	9	3.2	30-130	30
TAL-M18-3.7-100	18	7	3.7	50-130	100
TAL-M20-2.95-10	20	9	2.95	30-130	10
TAL-M22-3.15-10	22	9	3.15	30-130	10
TAL-M25-3.4-10	25	10	3.4	30-150	10
TAL-M25-3.5-250	25	10	3.5	80-280	250
TAL-25-3.6-20	25	9	3.6	40-150	20
TAL-M30-3.85-10	30	10	3.85	30-150	10
TAL-M35-4.5-25	35	10	4.5	40-180	25

Our Company

TJTALENTS ENTERPRISE CO.,LTD

* Professional design and supplier for the telescopic mast since 1995---manaul/motorized/pneumatic model.

* Have own technician team for providing proffestional ODM help.
* Golden supplier since 2007 on Alibaba, provide professional export help.

* Our products are widely used all over the world, in places such as Australia, Singapore, Brazil, Chile, UK, Germany, Netherlands, Spain,USA, India, Malaysia and more.

* Our mast are widely used in Military, Emergency, Illumination, Photography,Meteorologic Measurement, etc.

* We just do the good quality mast in long service time.
