Electrical Rotating Connector Multi Conductors Mercury Slip Rings

Construction and Function

   The JARCH rotating electrical connectors are using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or stainless steel.

   They are used for any kind of rotating objects of signals like micro voltage, current, EMF, thermos couple, strain gauge, audio, video, high frequency etc. and electric power connections.

   All types of our liquid metal rotary connectors support CE RoHS compliance.

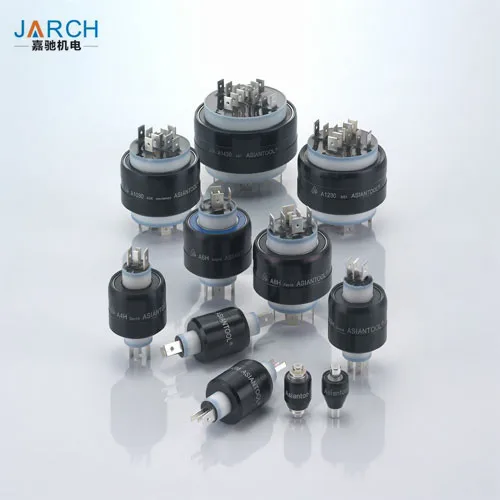

   Electrical Rotating Connector Multi conductors Mercury Slip Rings

   Please Click here:contact us for details.

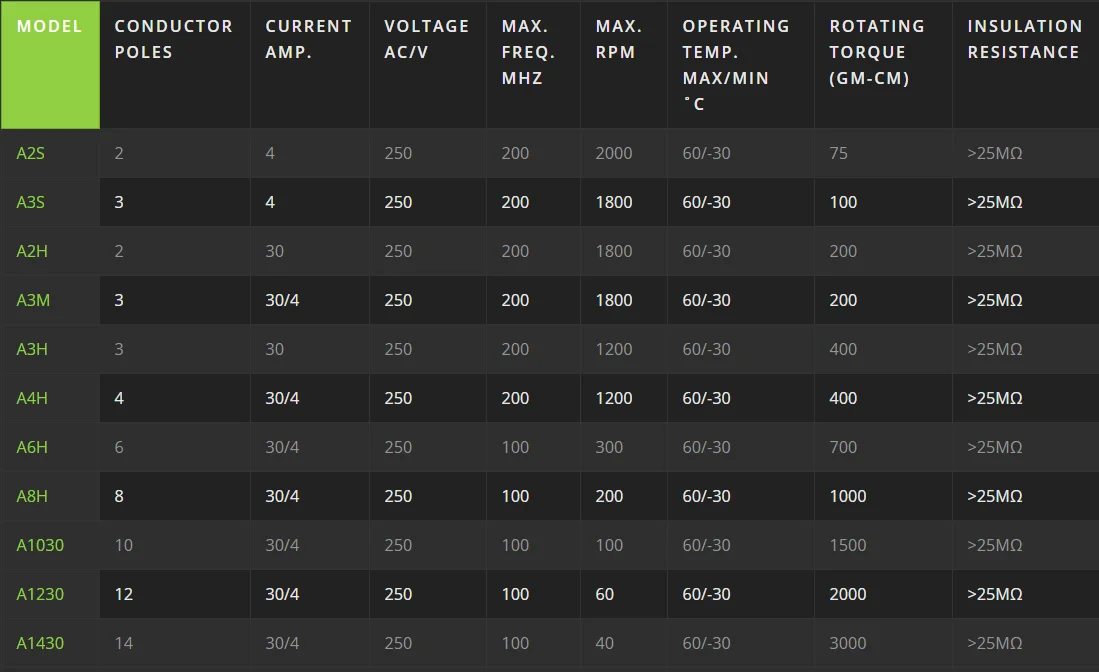

Specification of Electrical Rotating Connector Multi conductors Mercury Slip Rings

Benefits of Electrical Rotating Connector Multi conductors Mercury Slip Rings

• Unique signal handling performance with minimal electrical circuit noise

• Very low electric noise

• Anti-jamming ,very low cost

• Very low contact resistance (Less than 1mΩ)

• No maintenance and better reliability than traditional sling rings

• Suitable for signal and power transfer of rotating devices or instruments

Application of Electrical Rotating Connector Multi conductors Mercury Slip Rings

• Index table for signal and power connection

• Resistors cutting machine

• Package machine

• Heating roller

• Plating equipment

• Filling equipment

Notice of Electrical Rotating Connector Multi conductors Mercury Slip Rings

1 Use no more than 60 temperature.

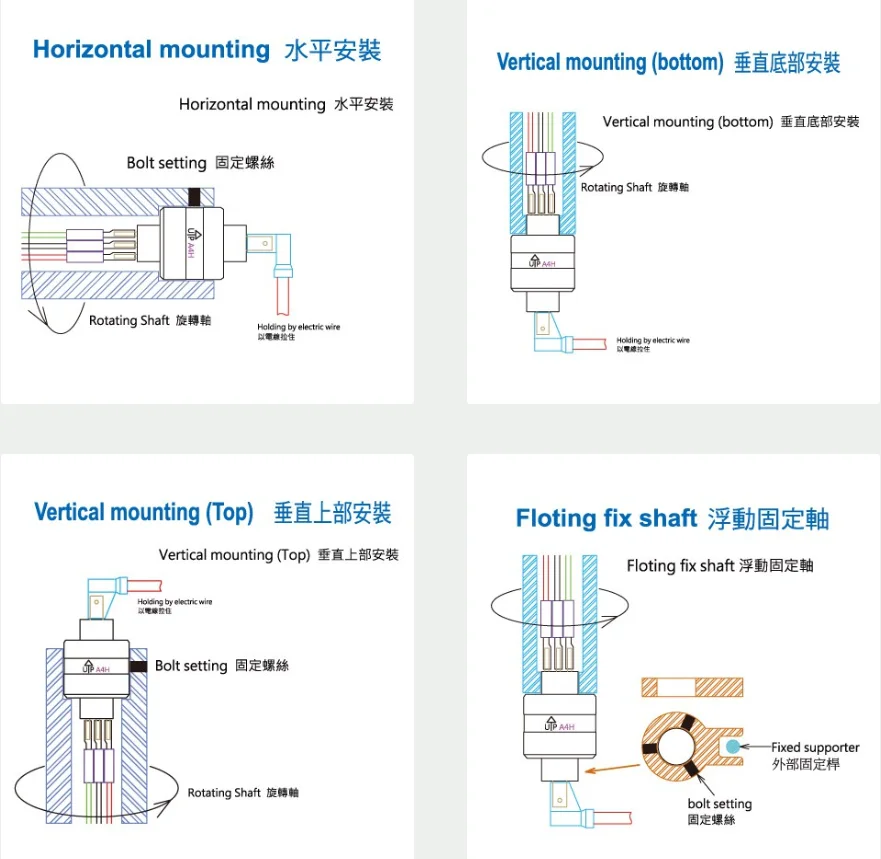

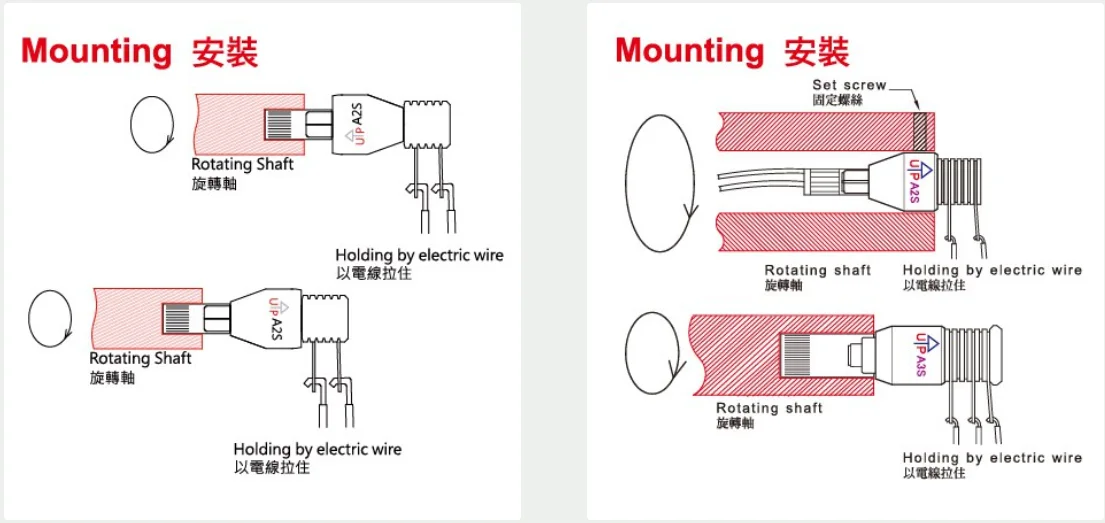

2 The vertical direction when installed, to keep U P upward, preservation needs to keep up also.

3  Not for rotating connector itself or copper terminal welding heat.

4  Dedicated terminals should not be reused many times.

5  Revolver such as vibrations will reduce service life.

6  This connector can in shell or plastic parts into axis, a floating pull in external fixation department, but

never can withstand weight.

JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.

If you have any questions, please contact us without any hesitation.
