SQUARE ROUND KNIFE GATE VALVE
- Shanghai
- T/T L/C
- 30 days
You May Like
Product Details
| Brand Name | FREE-VALVE | Place of Origin | China | |
| Model Number | FR003 | Material | Other, carbon steel | |
| Application | General | Structure | Gate | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Manual | Port Size | DN200-DN1200 | |
| Media | Base | Temperature of Media | Medium Temperature |
Product Description

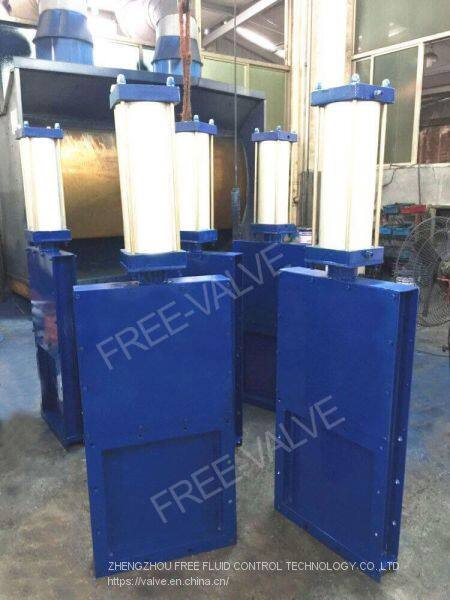

FREE-Valve’s SQUARE ROUND KNIFE GATE VALVEs are unidirectional knife edge gate valve used on industrial pipeline for on-off operation. It is a fabricated square or rectangular port low pressure for highly solid loaded fluids or solids,mainly used in bulk handling and silo outlet applications in industries.
Features:
1) The same construction as standard knife gate valve.
2) Body and gate in rectangular valve shape.
3) Same actuators and accessories as standard.
4) Rising stem tight model.
5) Square flange ends
Technical Specification:
1. Size Range:DN200xDN200.......DN1200xDN1200
2. Pressure Range: Class 150 /PN6 /PN10
3. Applicable Temperature: 0~120℃
4. Connection Type: Square flange
5. Sealing material: Rubber,Metal seal
6. Body Material: Carbon steel,stainless steel
7. Disc material:Stainless steel,carbon steel
Operating Mode: Hydraulic
Application:
FREE-VALVE’s SQUARE ROUND KNIFE GATE VALVEs is a powder, grain materials, small particle materials and the flow of materials or delivery of the main control equipment ,it was widely used in metallurgical, mining, building materials, food, chemical and other industries control the rapid flow of change or cut off.
Model：FRZ641H
Price:200-3000USD/set
Payment terms:TT,LC
Price terms:FOB,CIF,FCA,.CFR
Delivery time:30days
Origin:China
Brand:FREE-VALVE
Wechat ID:FreeValve
Email:sales@free-valve.com
