Industrial Powder Vacuum Loader Machine
- Jiangmen/Guangzhou/Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | XIECHENG | Place of Origin | Guangdong, China | |
| Warranty | 1 year | |||
| Weight | 12KG | Dimension(L*W*H) | 380*200*580mm | |
| Voltage | 220V/50Hz/1Phase as usual | Certification | CE | |
| Application | plastic industry | Condition | New | |
| Power(W) | 1100 |
Product Description

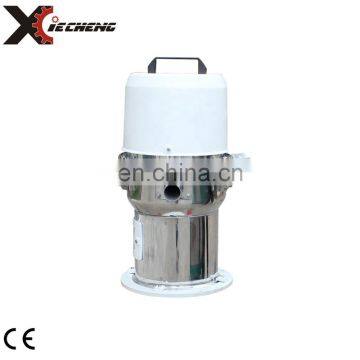

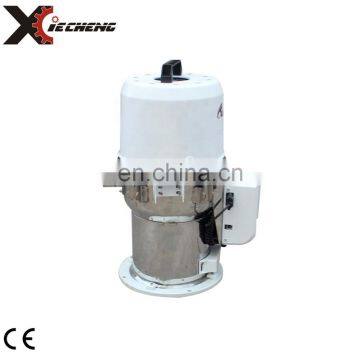

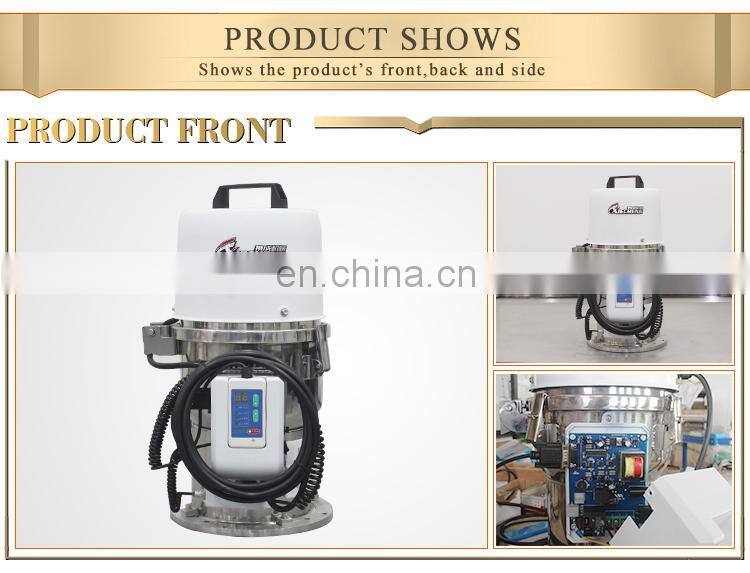

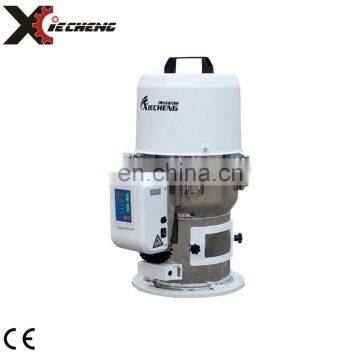

industrial powder vacuum loader machine

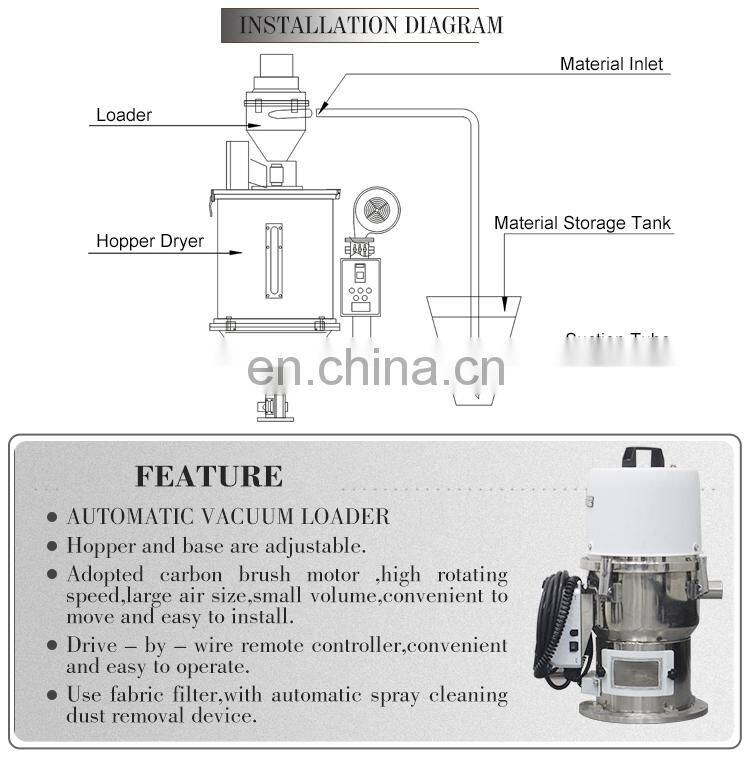

With small footprint and low weight, available placed directly onto other machines or containers for auto loading.

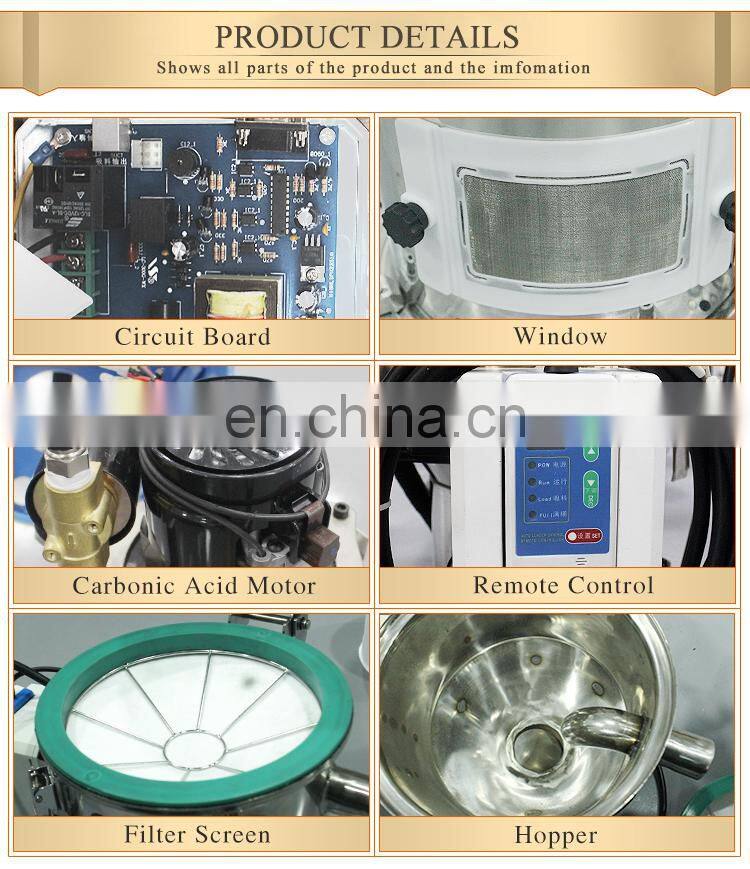

Microcomputer controlled.
Alarm for overload and lack of material.
300G equipped with high – speed rectifier motor with delicate size and strong suction force – suitable for new materials.
400G with induction high pressure pump – with low noise and long service time.
Cable control board design – easy to set and control with distance.
Filter for air and dust (Optional part).

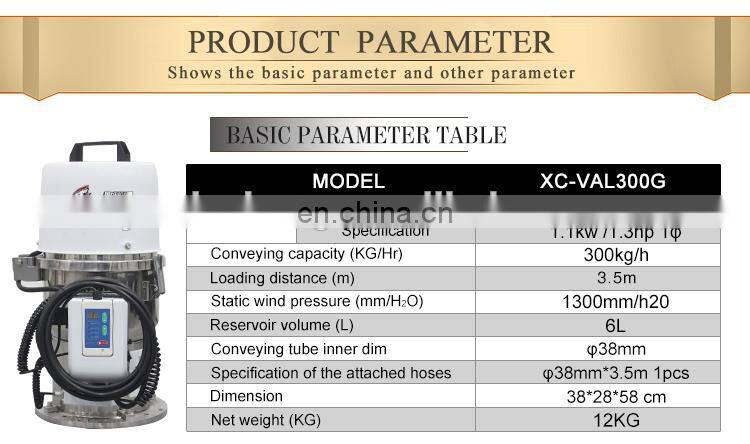

Model | XC-X300G | XC-X400G | |
Motor | Type | Carbon Brush | Induction |
Specification | 1.1kw/1.3hp 1φ | 0.75kw/1hp 3φ | |
Conveying capacity(kg/hr) | 300 | 330 | |
Loading distance(m) | 3.5 | 4 | |
Static wind pressure(mm/H2O) | 1300 | 1400 | |
Reservoir volume(L) | 7.5 | 7.5 | |
Conveying tube inner diameter(mm) | φ38 | φ38 | |
Specification of the attached hoses | φ38mm×3.5m 1pcs | φ38mm×4mm 1pcs | |
Dimensions(cm) | 34×34×59 | 45×37×66 | |
Approx. Net weight (kg) | 12 | 27 | |
