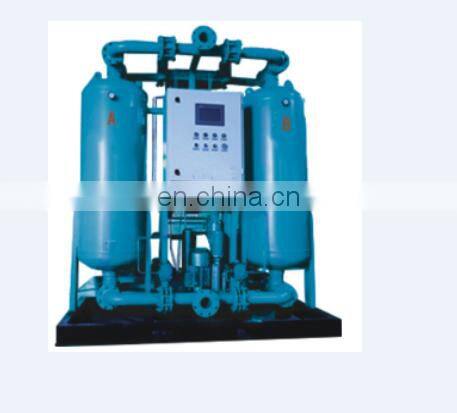

China supplier drum heat regenerative adsorption compressed air dryer
- 1000000 Set / Sets per Month
- XiaMen Port China
- T/T Credit Card
Product Description
Drum heat regenerative desiccant adsorption air dryer
This dryer has a twin-tower structure.Under the control of PLC, the two towers will run alternately. Compressed air is dried through one tower while the other desiccant tower is being regenerated.One tower adsorb the moisture under high pressure and another tower complete the desorption of steam with the dry air produced by itself, thus keeping running circularly. Although the machine will consume some air, the comprehensive energy consumption are largely lower than the heat sourced regenerative dryer based on variable temperature adsorption, so it is a widely used air compressing and drying machine at present.
By using proven engineering technology and components,this equipment is extremely reliable. And a lower, steadier dew point can be reached.
Working condition and Main technical data:
1. Working periods:60-180minutes
2. Inlet air temperature: ≤45°C 3.. Inlet air oil content: ≤0.1ppm 4. Working pressure: 0.6-1.0MPa 5. Regeneration air flow: ≤14% (of total compressed air)6. Pressure loss: ≤3% of the total working pressure 7. Operation cycle: T=10min
8.Dew point:-40°C ~ -70°C
9. Power supply:380V 50hz 3ph
10. Desiccant:activated aluminum oxide or molecular sieve
11.Dimension:(L*W*H) 910*530*1418mm
12. Fully automatic,interlocked operation controlled by PLC on a fixed 10min time cycle
Product Parameters
Model | Capacity | Power | Air connection |
Dimension | Weight | ||
Nm3/min | KW | MM | L | W | H | KG | |
RH-1A | 1.2 | 1.5 | ZG1 | 910 | 530 | 1418 | 145 |
RH-2B | 2.4 | 1.5 | ZG1 | 910 | 530 | 1518 | 160 |
RH-3C | 3.8 | 1.5 | ZG1.5 | 1000 | 575 | 1890 | 360 |
RH-6D | 6.5 | 3 | ZG1.5 | 1200 | 560 | 1960 | 405 |
RH-8E | 8.5 | 3 | ZG1.5 | 1200 | 560 | 1960 | 440 |
RH-10F | 10.7 | 4.5 | ZG2 | 1400 | 600 | 2100 | 560 |
RH-13G | 13.5 | 4.5 | ZG2 | 1400 | 600 | 2150 | 620 |
RH-15I | 18 | 4.5 | DN65 | 1400 | 635 | 2200 | 680 |
RH-20J | 25 | 6 | DN80 | 1670 | 725 | 2480 | 780 |
RH-30K | 35 | 8 | DN100 | 1750 | 750 | 2680 | 1040 |
RH-40L | 45 | 8 | DN100 | 1820 | 750 | 2685 | 1210 |
RH-50M | 55 | 15 | DN125 | 1900 | 750 | 2800 | 1450 |
RH-60N | 65 | 15 | DN125 | 1900 | 750 | 3100 | 1700 |
RH-80O | 85 | 20 | DN150 | 2620 | 1120 | 3070 | 2800 |
RH-100P | 110 | 30 | DN150 | 3100 | 1650 | 3200 | 4020 |
RH-160Q | 160 | 50 | DN200 | 3240 | 1770 | 3190 | 5600 |
