Customized YD Miniature Oil-immersed Motorized Pulley
- 7 days
You May Like
-
Professionally Customized 37 KW Motorized Pulley
-
Price of Motorized Pulley With Good Performance Planetary Hard Tooth Surface
-
Price of Motor Built-in Motorized Pulley and Motor External Motorized Pulley
-
Production Technology of TDY75 Motorized Pulley With Hard Core
-
Price of YZW Type Outside Motorized Pulley With 630mm Diameter
-
YD250 Motorized Pulley of Price-Performance Ratio
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | YD |
Product Description

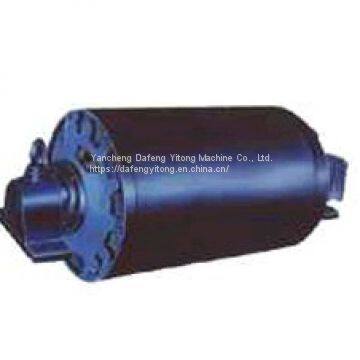

YD miniature oil-immersed motorized pulley is a new internal driving device for light belt conveyor, roller conveyor, belt electronic scale and so on. The product adopts international standards and digests and absorbs advanced technology at home and abroad. It has the characteristics of compact structure, small size, high efficiency, low noise, no leakage and long service life.

Dimensions Drawing of YD Miniature Oil-immersed Motorized Pulley

Form and Installation Dimension Table of YD Miniature Oil-immersed Motorized Pulley
D | a | b | c | d | H | Q | e | f |
112 | 5 | 20 | 21 | 25 | ||||
132 | 5 | 20 | 21 | 25 | ||||
160 | 5 | 20 | 21 | 25 | ||||
174 | 5 | 60 | 25 | 32 | 50 | 15 | 160 | 120 |
200 | 5 | 60 | 25 | 32 | 50 | 15 | 160 | 120 |
216 | 5 | 60 | 30 | 38 | 50 | 15 | 160 | 120 |
250 | 5 | 60 | 30 | 38 | 50 | 15 | 160 | 120 |
315 | 10 | 60 | 35 | 42 | 95 | 19 | 260 | 210 |
400 | 10 | 60 | 35 | 42 | 95 | 19 | 260 | 210 |
Notes:
1. Installation center distance A varies with cylinder length L. A = L + 2A + B. When bearing, A is the distance between two support centers. When without bearing, A is the central distance between two axes.
2. It can be made into reverse stop, glue wrapping and other forms according to user's requirements.
