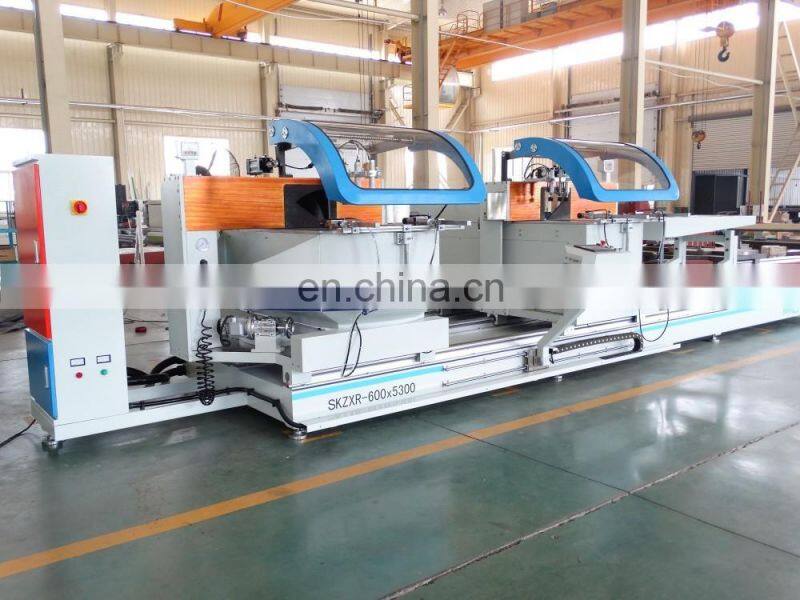

Double Head Miter Saw for Aluminum Window Profile

1.Equipment Features

1.1  It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry.

1.2  It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging.

1.3  Adopt servo motor to drive reducer, implement saw blade rotating positioning at any anglebetween 45°and 90°.

1.4  Two cutting heads can swing positioning at any angle between 45°and 90°.

1.5  Two cutting heads not only can work separately, moveable head feeding material continuously,fixed cutting head cuttingcircularly; but also can work simultaneously, can cut needed length and profile two ends angle at one time.

1.6  Hard alloy teeth cutting blade, high cutting speed,high produce efficiency,high process accuracy.

2Technical Parameter

Model

SKZXR-600x5300

2.1

Power Supply

three phase four wire 380V/50Hz (Can be produce according to clients .)

2.2

The motor of the saw head

 power 3 X 2 kw

2.3

Motor Rotary Speed

2800r/min

2.4

The saw wings servo motor

power 0.9 x 2 kw

2.5

The head horizontal moving servo motor

power 1.5 kw

2.6

The head angle motor

power 0.18 x 2 kw

2.7

The Air Pressure

0.5MPa~0.8MPa

2.8

Cutting Length

max  5300mm

2.9

Cutting Width X Height

max  500X180 mm (90°)

2.10

Cutting Height Max

210  mm   (90°)

Cutting Angle

Saw Blade  45°~ 90°   Machine head  45°~ 90°

The feeding speed

Speed Governing Continuously 0~ 3m/min

Saw Blade Specification

φ600mm×4.4mm×φ30mm  Z=120

Overall Dimension

7500mm×2450mm×1700mm

Weight about

5100kg
