1818 1325 2030 CNC Router HIWIN Square Guid Rail

FOB Price

US$ 9,800 - 15,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Maxicut	Place of Origin	Shandong, China
Model Number	MA1818	Certification	CE BV ISO
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12months
Weight	1200kg	Dimension(LWH)	240023001600mm
Voltage	380 V	Condition	New
Power(W)	1.5kw*6	CNC or Not	CNC

Packaging Details

plywood box with iron base,it depends on customer

Product Description

MA1818 CNC Router

1.Features of the china cnc wood router

1.working area:1800*1800*200mm

2.Applicable for cutting,engraving and polishing,wide range of applications.

3.Drive System: drive by hybrid servo motors and drivers, fast speed with higher precision.

4. X,Y Axes Transmission: helical tooth rack and pinion, faster speed than straight tooth with higher accuracy.

5. The outer casing, stronger anti-interference ability ....

6. Z Axis Transmission: Taiwan TBI rolling ball screw, high precision of Z axis

7. 3 Axes Dust Cover: full hard plastic cloth cover of 3 axes and all guide rail, dust-proof, rust-proof, machine service time guaranteed.

8. Spindle Dust Hood: strong steel plate welded dust hood of 6 spindles, dust-proof, moisture-proof, rust-proof, spindle processing life prolonged.

9. Cooling System: two water pumps for spindles cooling, unique water tank design, realizing water recycle easily. Escaping spindle motors from burnout in case of high temperature.

10. Frame: thick strong square steel tube welded stand and gantry, cast iron lathe bed, heavy duty, robust without deformation, long service time.

11.processing in batch,improve the efficiency obviously.

2.Parameters of the china cnc wood router

model	sw-1818
Working Area(X×Y×Z)	1800×1800×200mm
MAX. Engraving Depth	200mm
MAX. Engraving Speed	3000mm/min
Traveling Accuracy	<0.05/300min
Command Language	G Code
Spindle Motor	1.5kw*6 Water Cooling
Tools Dimameter	3.175, 6, 12.7
XYZ Guide Rails	Linear Square Rail
Transmission	Rack Gear of X.Y
	Zaxis, Ball Screw

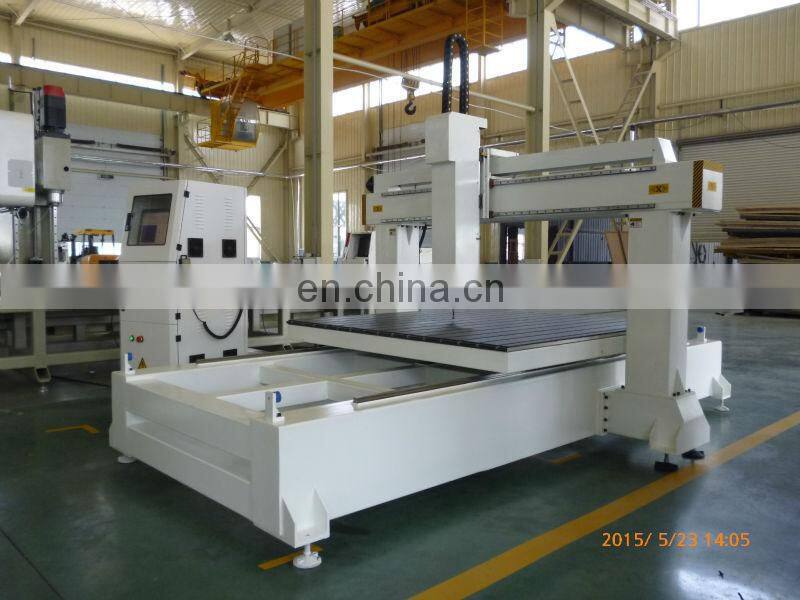

Look at this machine,CNC Router 1818

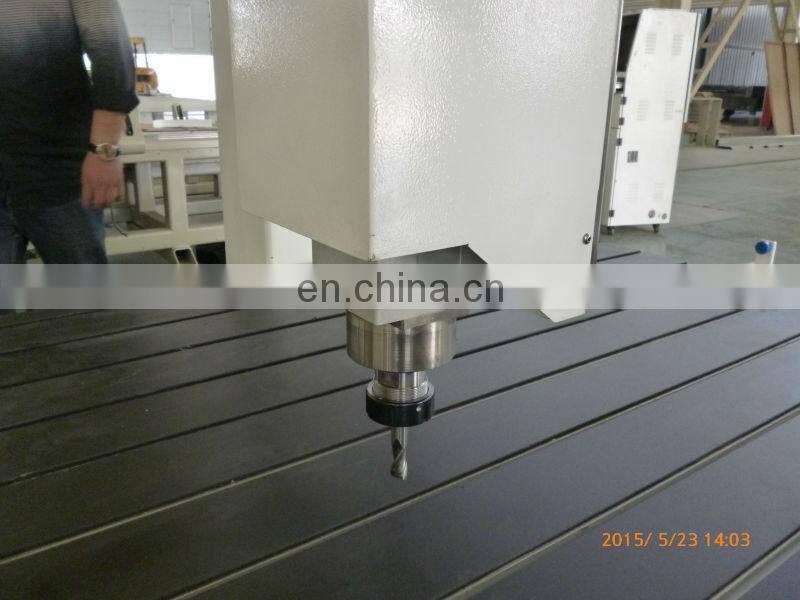

Italy HSD or China brand (depends on clients)

From this cutter,we could engraving this beautiful cartoon

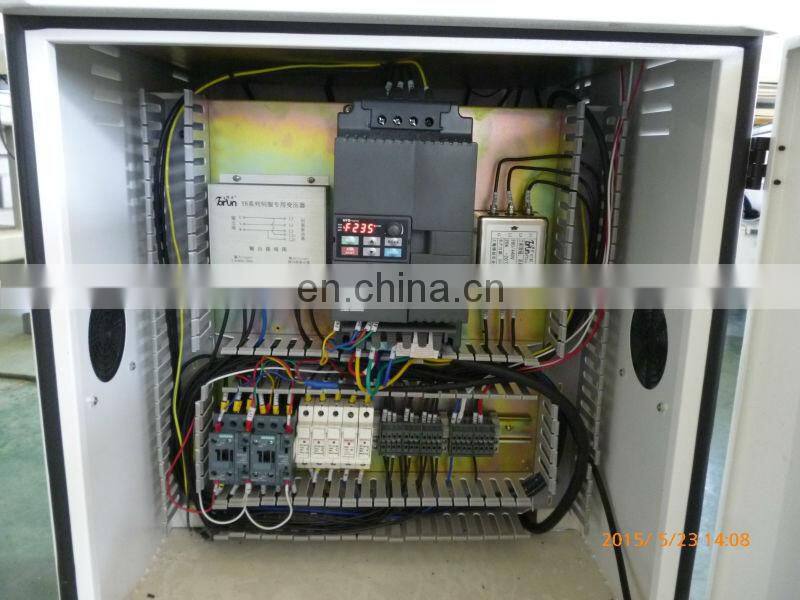

We have the strong control box

We could provide this service

Our Services

After sales service:

1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.

2. Our engineer could support you technology to your contry if necessary.

3. Our enginner could service on weekend even on vacation.

4. Our engineer could train you on at our factory for free.

5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.

Warranty :

#we have sincere raw material suppliers, all of our raw material are original, not copy.

# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.

# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
