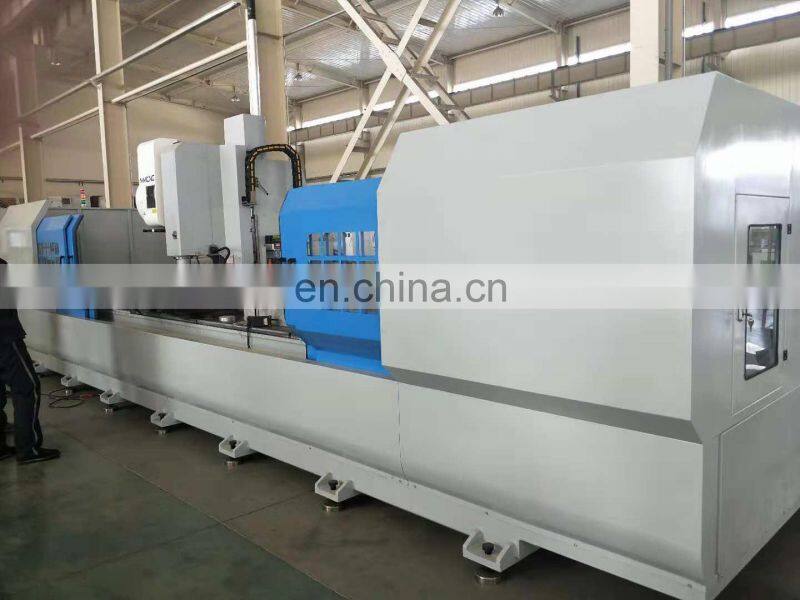

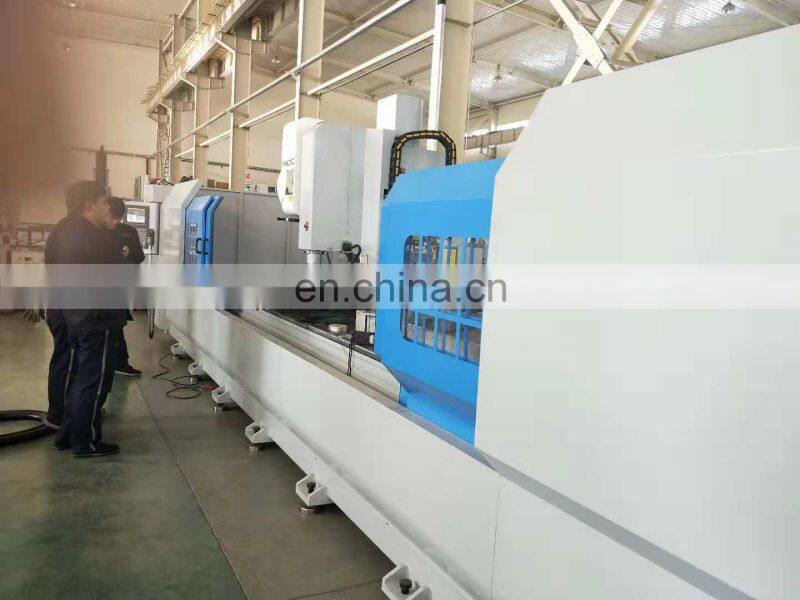

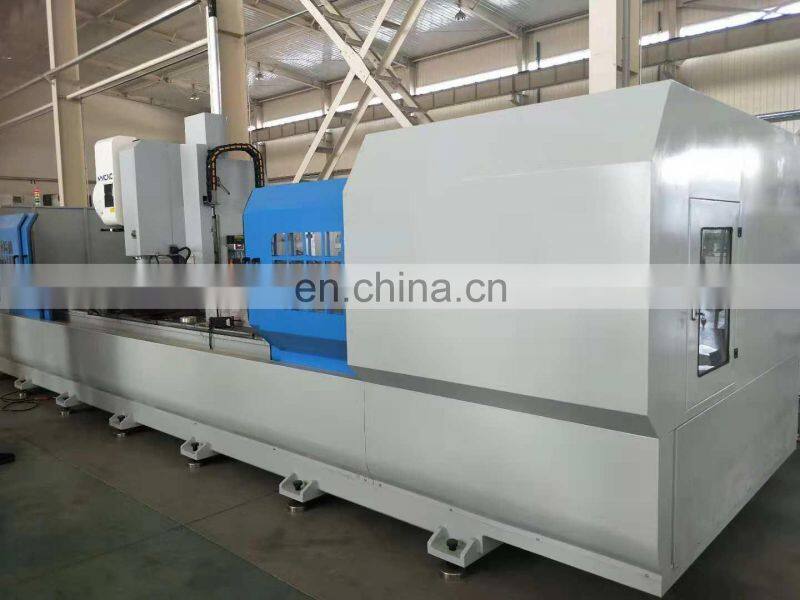

3-axis CNC Processing Center for Aluminum Profile

Model Number :JGZX3-CNC-6000

Application:This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,charmfering and other procedure.

Deatils:

Equipment Features

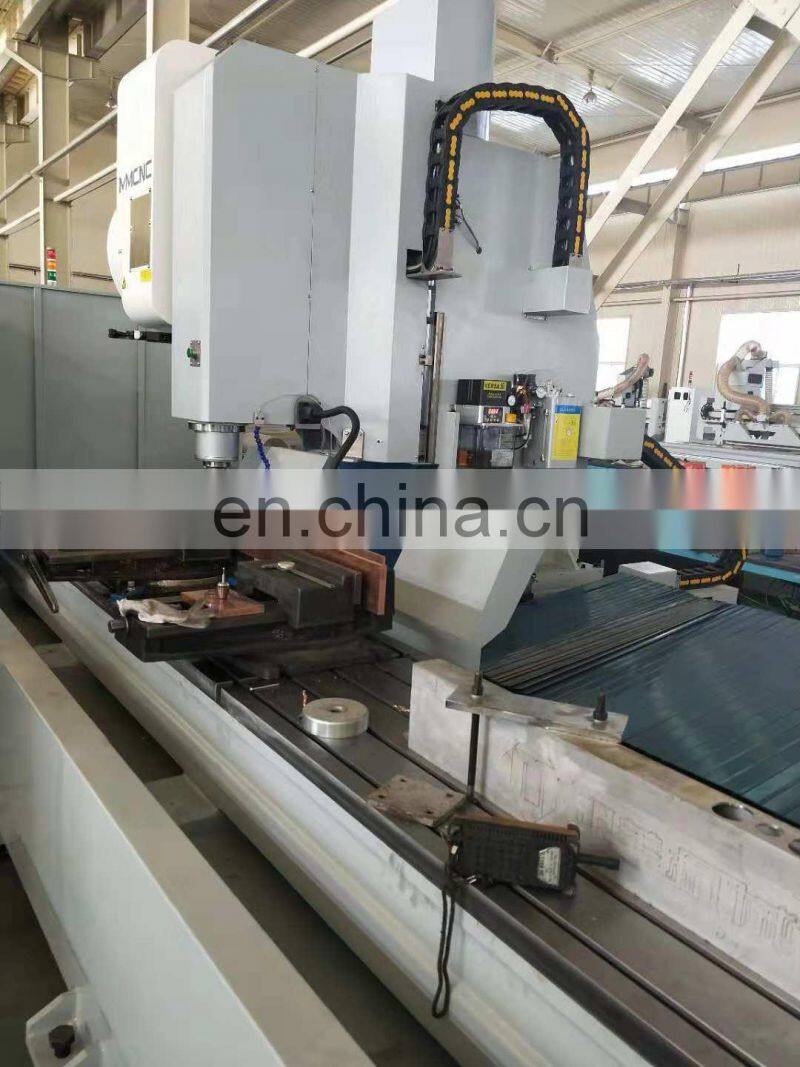

1.2    Adopting high-power closed loop spindle servo motor, it was directly connected with the Taiwan high-precision mechanical spindle.

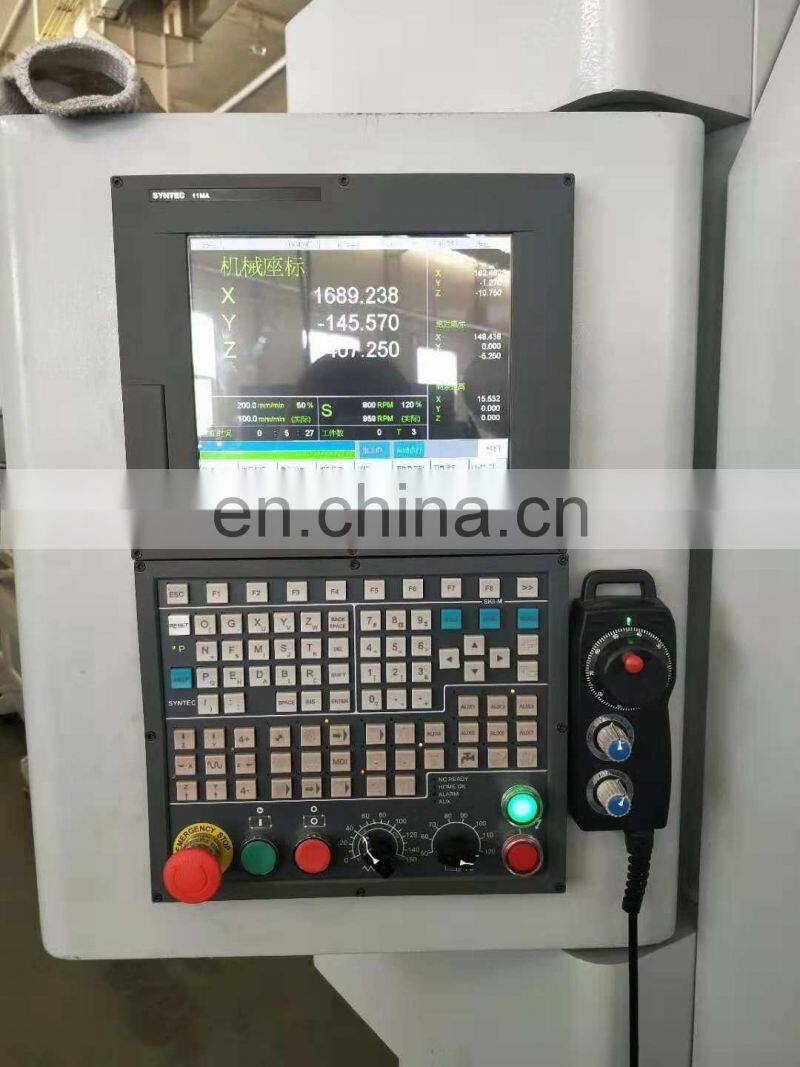

1.3    Using the latest Taiwan 10.4 inch display screen, 21MA SYNTEC servo control system.  After power outages, it can continue processing when have electric power. This machine have professional CAM processing software.

1.4    Using the disc type blades storage, 16 blades capacity, only need 3 seconds for changing blade, greatly improved the efficiency of changing blades.

1.5    Adopting famous high-precision ball screw, rail and rack.

1.6    Double position design, putting on and taking down profile separately without stop, have much higher processing efficiency.

1.7    Centralization lubrication adopt intermittent supply system, Blades adopt system control spray pump cooling device.

1.8    Equipped automatic memory on blades device system.

1.9    The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

1.10   The main components adopt steel structure and they are all through aging treatment.

2. Technical Parameter:

2.1  Power supply         380v   50Hz

2.2  Working pressure      0.6~0.8MPa

2.3  X-axis journey        6000mm

2.4  Y-axis journey         450mm

2.5  Z-axis journey         500mm

2.6  Cutter storage         16 blades

2.7  Type of clamping      pneumatic clamp (eight sets)

2.8  Overall dimension      11000*3000*2800mm

2.9  Weight:               6200kg
